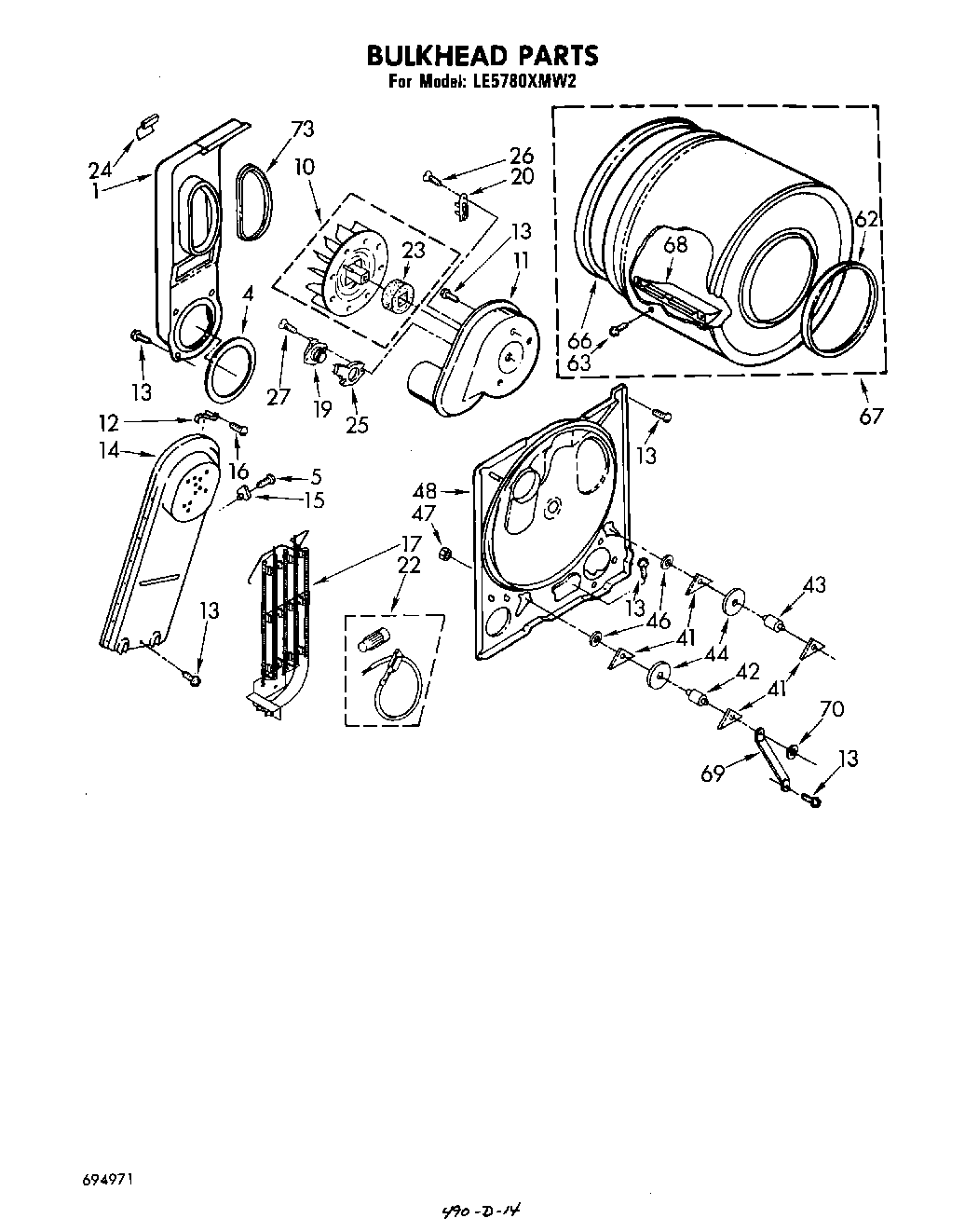

LE5780XMW2 04 – SECTION

Products

Position	Product
1	279505 Whirlpool Chute
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	279052 Whirlpool Thermostat L250 3W
17	WP4391960 Whirlpool Dryer Heating Element
19	WP694674 Whirlpool Cycling Thermostat
20	WP3392519 Whirlpool Dryer Thermal Fuse
22	279457 Whirlpool Dryer Heating Element Wide Spade Connection
23	Seal, Blower
24	686770 Whirlpool Support Bracket
25	Thermostat, Heater
26	WP965173 Whirlpool Dishwasher Screw
27	WP488729 Whirlpool Refrigerator Door Screw
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
