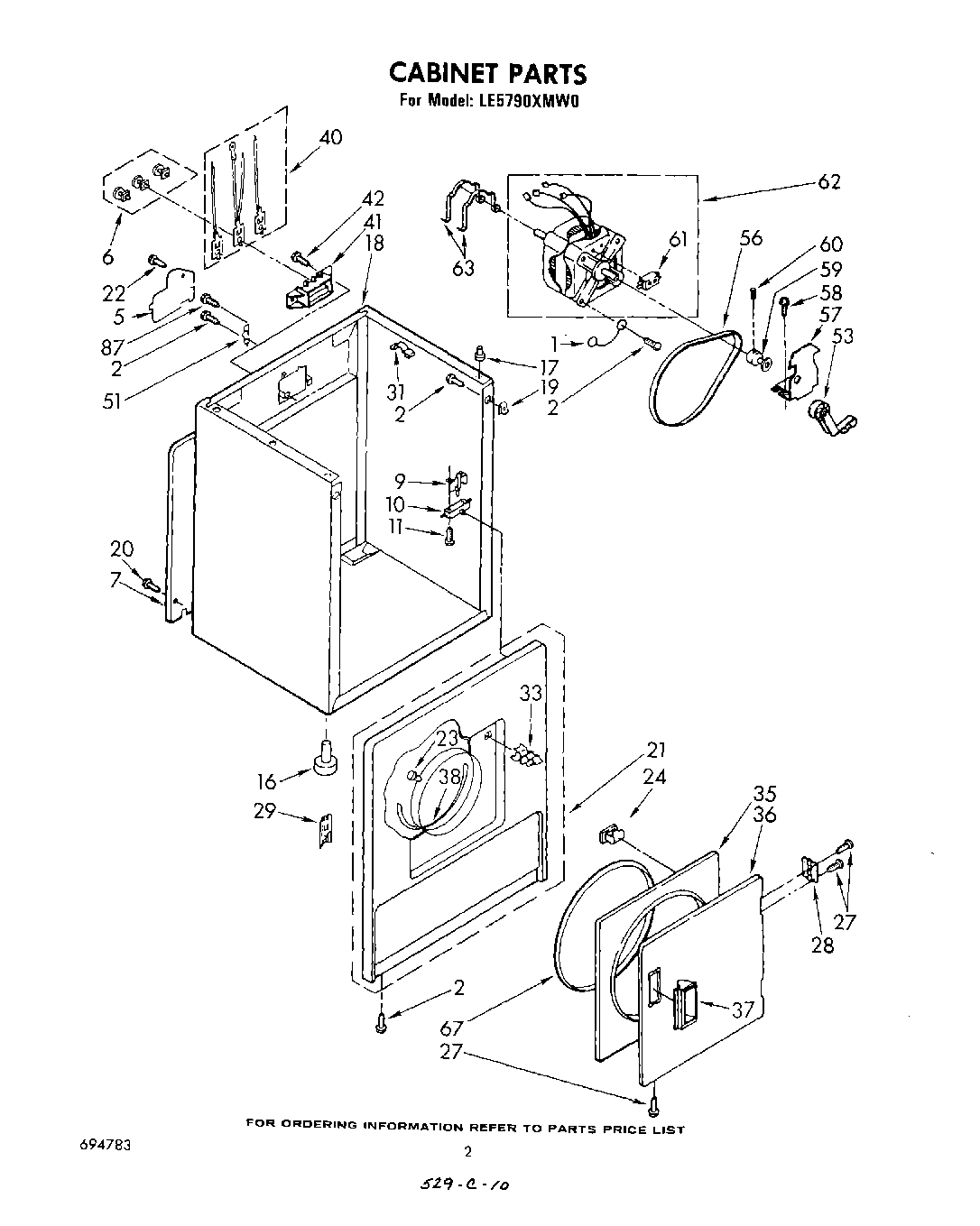

LE5790XMW0 02 – SECTION

Products

PositionProduct
1Wire, Ground (Motor)
2SCREW
5W11736322 Whirlpool Cover Assembly
6279393 Whirlpool Terminal Block Screw and Nut Kit
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
1649621 Whirlpool Leveling Feet
17WP18776 Whirlpool Lock
18Cabinet (White)
18Cabinet (Almond)
18Cabinet (Golden Harvest)
19WP98234 Whirlpool Nut
20WP489069 Whirlpool Compactor Screw
21Front Panel (White)
21Front Panel Assembly (Also Includes Illus. 19) (Golden Harvest)
21Front Panel (Almond)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
27WP694091 Whirlpool Screw
28WP348023 Whirlpool Hinge
29W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
318528351 Whirlpool Clip
35280077 Whirlpool Door
36WP348205 Whirlpool Door
36WPL 689319
36Door, Front (Almond)
37Handle, Door (Almond)
37WP686711 Whirlpool Door Handle
37Handle, Door (Golden Harvest)
38279264 Whirlpool Bearing and Seal Kit
40279318 Whirlpool Terminal
41279320 Whirlpool Dryer Rear Terminal Block Kit
42WP308685 Whirlpool Microwave Screw
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11233559 Whirlpool Motor Pulley
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67W11613302 Whirlpool Door Seal
