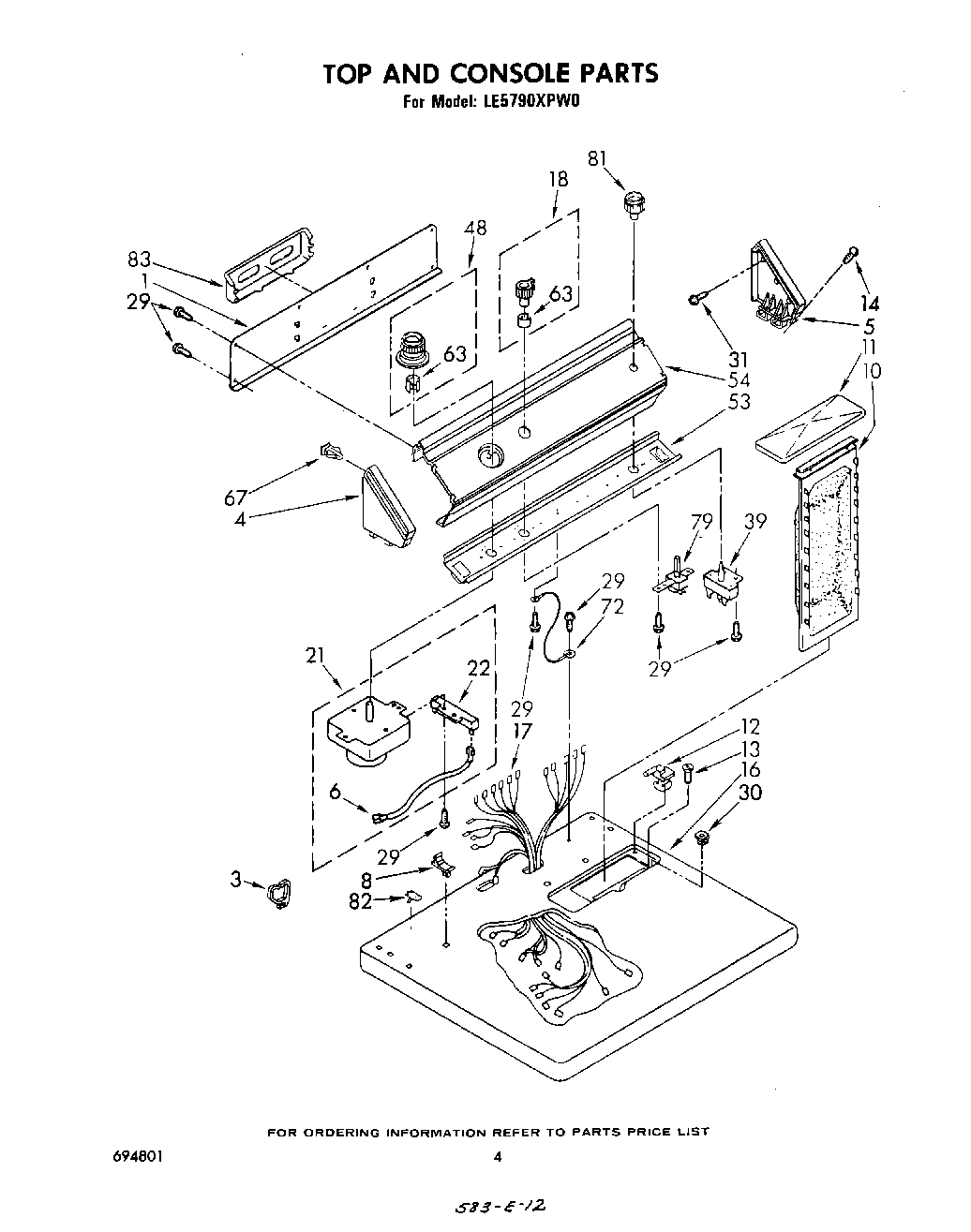

LE5790XPW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL 261880
	Guide, Dryer
	WPL LIT694801
	WPL LIT693690
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL 299805
	WP72107 Whirlpool Touchup
	WPL LIT696234
	Leveler (Thinner)
	Almond (Uncut)
1	Panel, Rear
3	Clip, Harness (Rear Bulkhead Area)
4	Cap, End (L.H.)
5	WPL 63795
6	Wire, Jumper
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Golden Harvest)
16	Top (Toast)
16	Top (Platinum)
16	Top (Almond)
16	Top (White)
17	Harness, Wiring (60 Hz.)
18	Knob, Water Level
21	Timer and Resistor 60 Hz.
22	279872 Whirlpool Resistor
29	SCREW
30	98460 Whirlpool Nut
31	WPL 355326
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	PANEL, CONTROL
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
82	Nut, Push-In (2)
83	Rack, Literature
