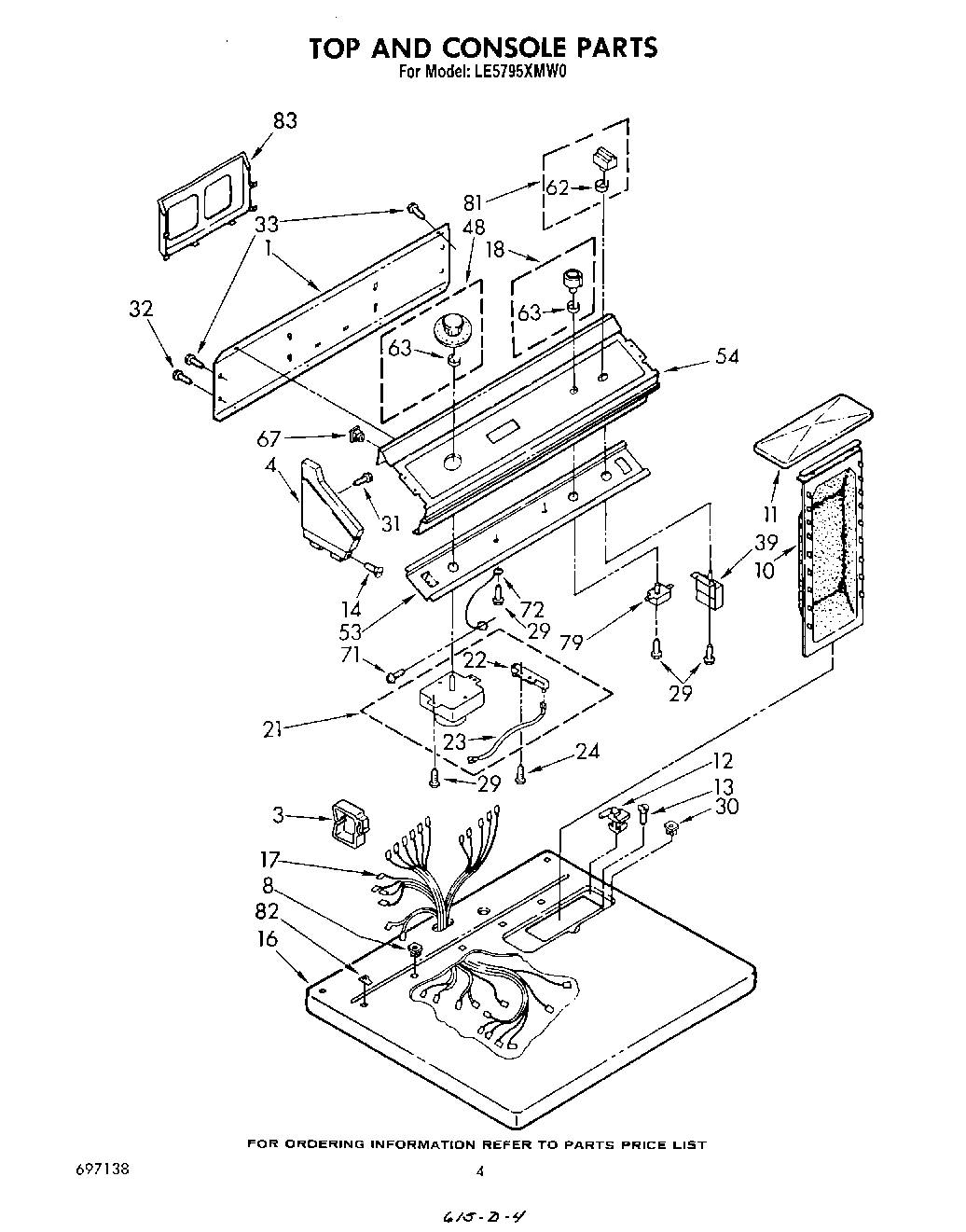

LE5795XMW0 03 – SECTION

Products

PositionProduct
WPL 299805
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Guide, Dryer
WPL LIT697138
WPL LIT3387066
WPL LIT694345
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
1Panel, Rear Console
3Clip, Harness (Rear Bulkhead Area)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (White)
8Cap, End L.H. (Toast)
8Cap, End L.H. (Golden Harvest)
8Nut, Push-In (2)
8Cap, End L.H. (Platinum)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 1 (2)
16Top (Almond)
16top (white)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
17Harness, Wiring (60 Hz.)
18Control Knob Assembly
21Timer Assembly 60 Hz.
22279872 Whirlpool Resistor
23Wire, Jumper
24WP273556 Whirlpool Screw
29WP3390631 Whirlpool Screw
3098460 Whirlpool Nut
31WPL 355326
32WP489069 Whirlpool Compactor Screw
33WP693995 Whirlpool Screw
39(Alt.)
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62Clip
63WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
71SCREW
72Wire, Ground
79WPL 695091
81Button Assembly
82Stop, Push-In Top
83Rack, Literature
