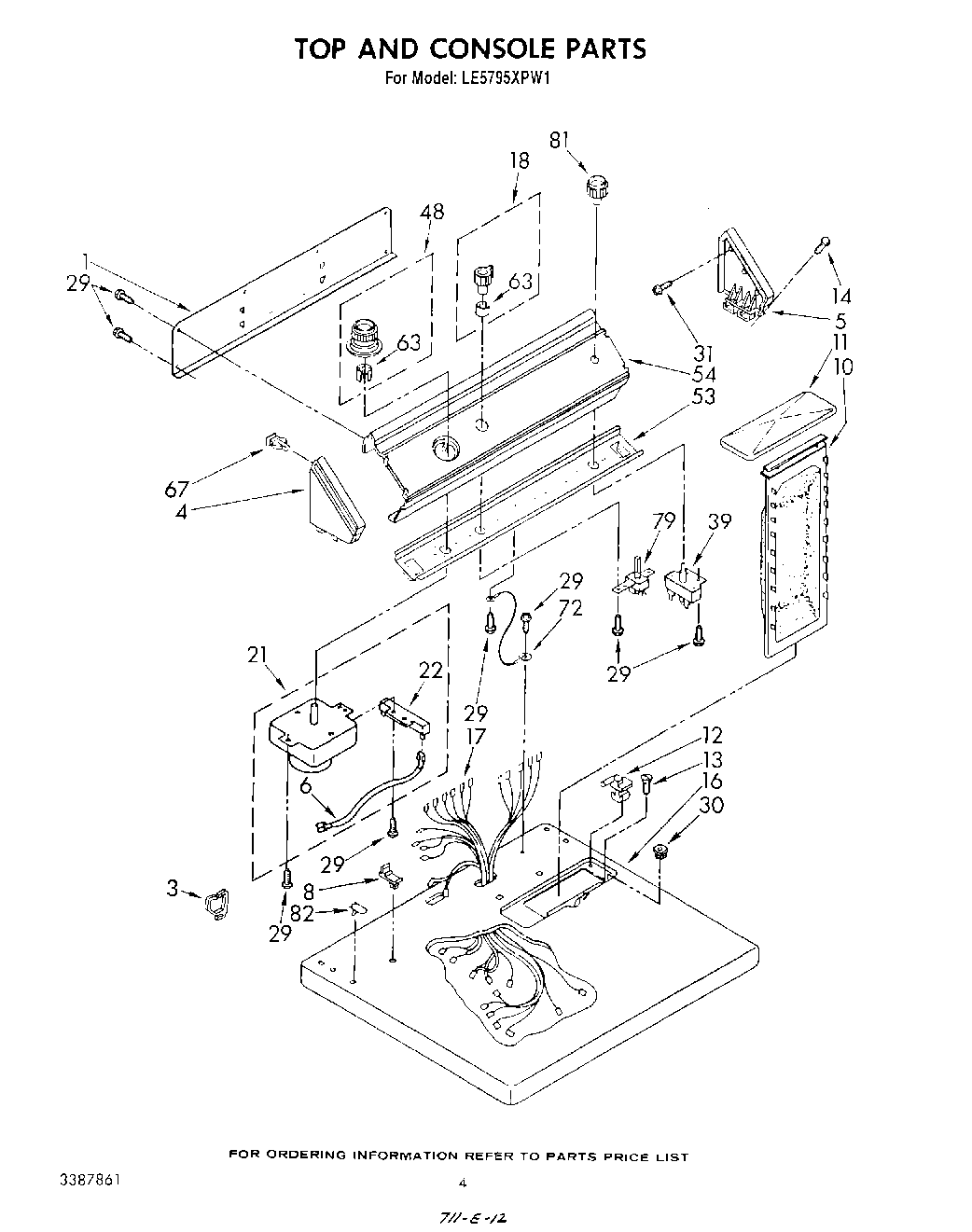

LE5795XPW1 03 – SECTION

Products

Position	Product
	WPL LIT3387085
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT677967
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	WPL 261880
	Washer (Belt Drive)
	WPL LIT3387861
	Guide, Dryer
	Instructions, Installation
	WPL 299805
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Leveler (Thinner)
	Almond (Uncut)
	350956 Whirlpool Spray Assembly
	WP72107 Whirlpool Touchup
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	Dryer
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear
3	Clip, Harness (Rear Bulkhead Area)
4	Cap, End (L.H.)
5	WPL 63795
6	Wire, Jumper
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Toast)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Platinum)
16	Top (Almond)
16	Top (White)
16	Top (Golden Harvest)
16	Top (Toast)
17	Harness, Wiring
18	Knob, Water Level
21	Timer & Resistor (60 Hz.)
22	279872 Whirlpool Resistor
29	SCREW
30	98460 Whirlpool Nut
31	WPL 355326
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
48	Timer Knob Assembly
53	Bracket, Control
54	PANEL, CONTROL
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
82	Nut, Push-In (2)
