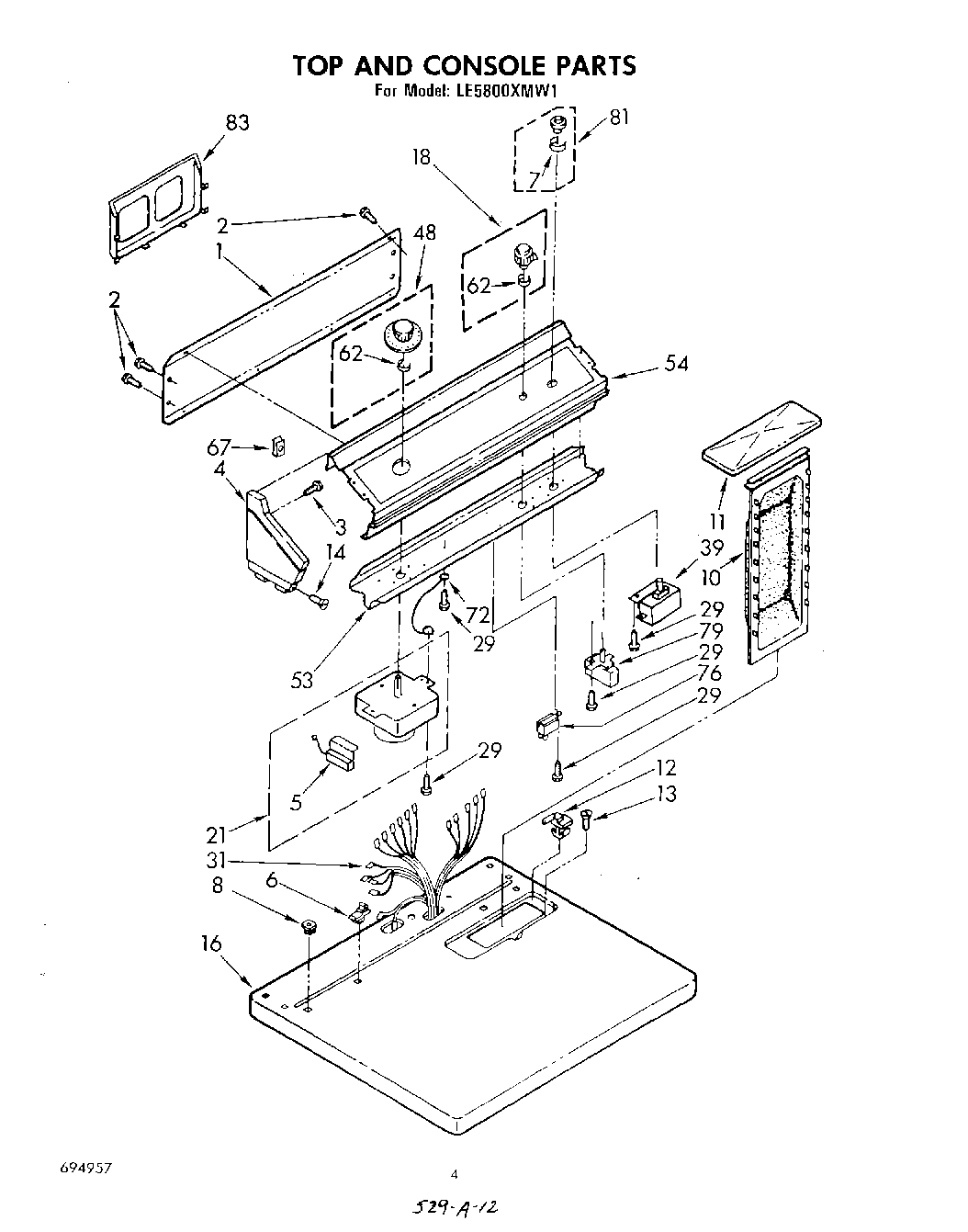

LE5800XMW1 03 – SECTION

Products

Position	Product
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Golden Harvest (Uncut)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
1	Panel, Rear Console
2	SCREW
3	WPL 355326
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Platinum)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
4	Cap, End (L.H.) (Toast)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Toast)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (White)
5	279872 Whirlpool Resistor
6	Stop, Push-In Top
7	Clip
8	Nut, Push-In (2)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 1 (2)
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (Toast)
16	top (white)
16	Top (Platinum)
18	Control Knob Assembly
21	Timer & Resistor Assembly, 60 Hz.
29	WP3390631 Whirlpool Screw
31	Harness, Wiring
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	Clip (4)
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Temperature Selector
81	Button Assembly
83	WPL 693849
83	Rack, Literature
83	Instructions, Installation
83	Us
83	WPL 799351
83	WPL 72112
83	Paint, Spray (13 Oz.) (Platinum)
83	Toast
83	350930 Whirlpool White Spray Paint
83	350938 Whirlpool Spray Gun
83	350956 Whirlpool Spray Assembly
83	72017 Whirlpool Appliance Touch-Up Paint White
83	WP72107 Whirlpool Touchup
83	Leveler (Thinner)
83	Golden Harvest
83	72113 Whirlpool Touch-Up Paint
83	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83	WPL 694957
