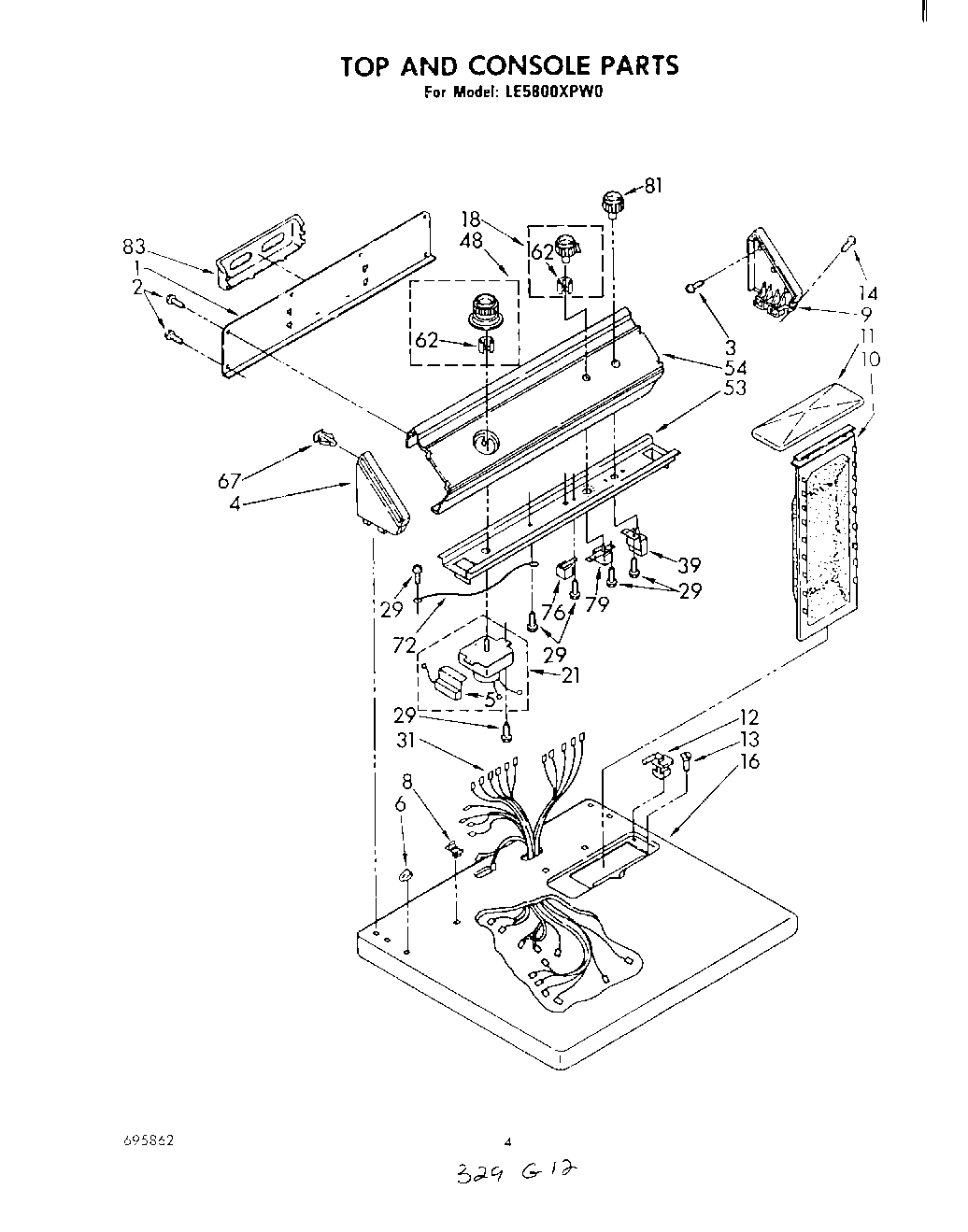

LE5800XPW0 03 – SECTION

Products

PositionProduct
Almond (Uncut)
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6Nut, Push-In (2)
8Stop, Push-In Top
9WPL 63795
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WPL 64211
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Platinum)
16Top (Toast)
18Knob, Water Level
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
31Harness, Wiring
39WPL 685067
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
81Knob, Push To Start
83350930 Whirlpool White Spray Paint
83WP72107 Whirlpool Touchup
8372017 Whirlpool Appliance Touch-Up Paint White
83350956 Whirlpool Spray Assembly
83Use & Care Guide
83350938 Whirlpool Spray Gun
83Instructions, Installation
83WPL 693849
83Leveler (Thinner)
8372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
8372113 Whirlpool Touch-Up Paint
83Golden Harvest
83Toast
83Paint, Spray (13 Oz.) (Platinum)
83WPL 72112
83Rack, Literature
83WPL 799351
83List, Service Parts
