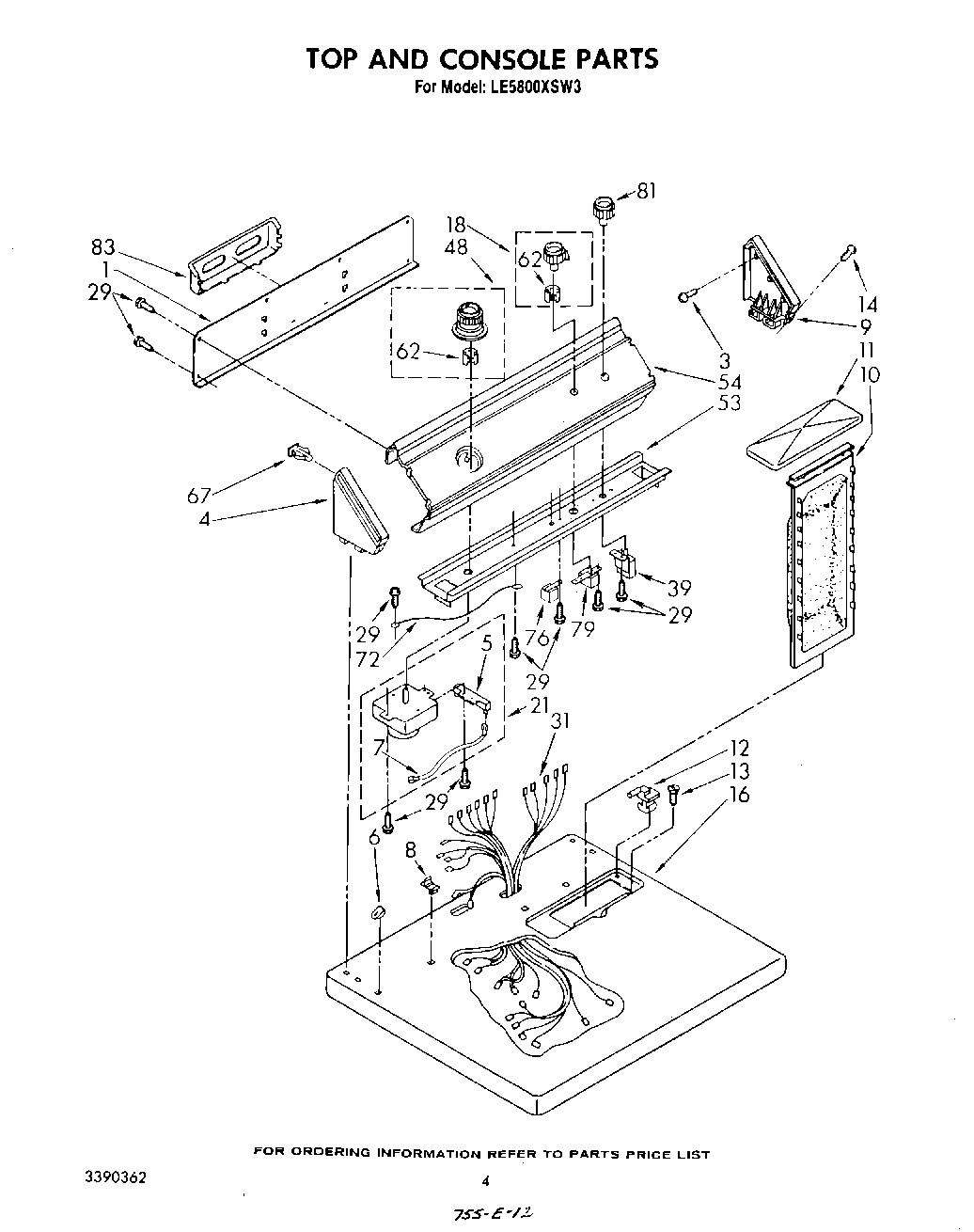

LE5800XSW3 03 – SECTION

Products

Position	Product
	WPL LIT3390362
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT677967
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	Washer (Belt Drive)
	Guide, Dryer
	WPL LIT3390211
	Instructions, Installation
	Golden Harvest
	799344 Whirlpool Refrigerator Paint
	72113 Whirlpool Touch-Up Paint
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
1	Panel, Rear
3	WPL 355326
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	Nut, Push-In (2)
7	Wire, Jumper
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Toast)
16	Top (Golden Harvest)
16	Top (Almond)
16	Top (White)
16	Top (Platinum)
18	Control Knob, Temperature
21	Timer & Resistor 60 Hz.
29	SCREW
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Temperature (Variable)
81	Knob, Push-To-Start
83	Rack, Literature
