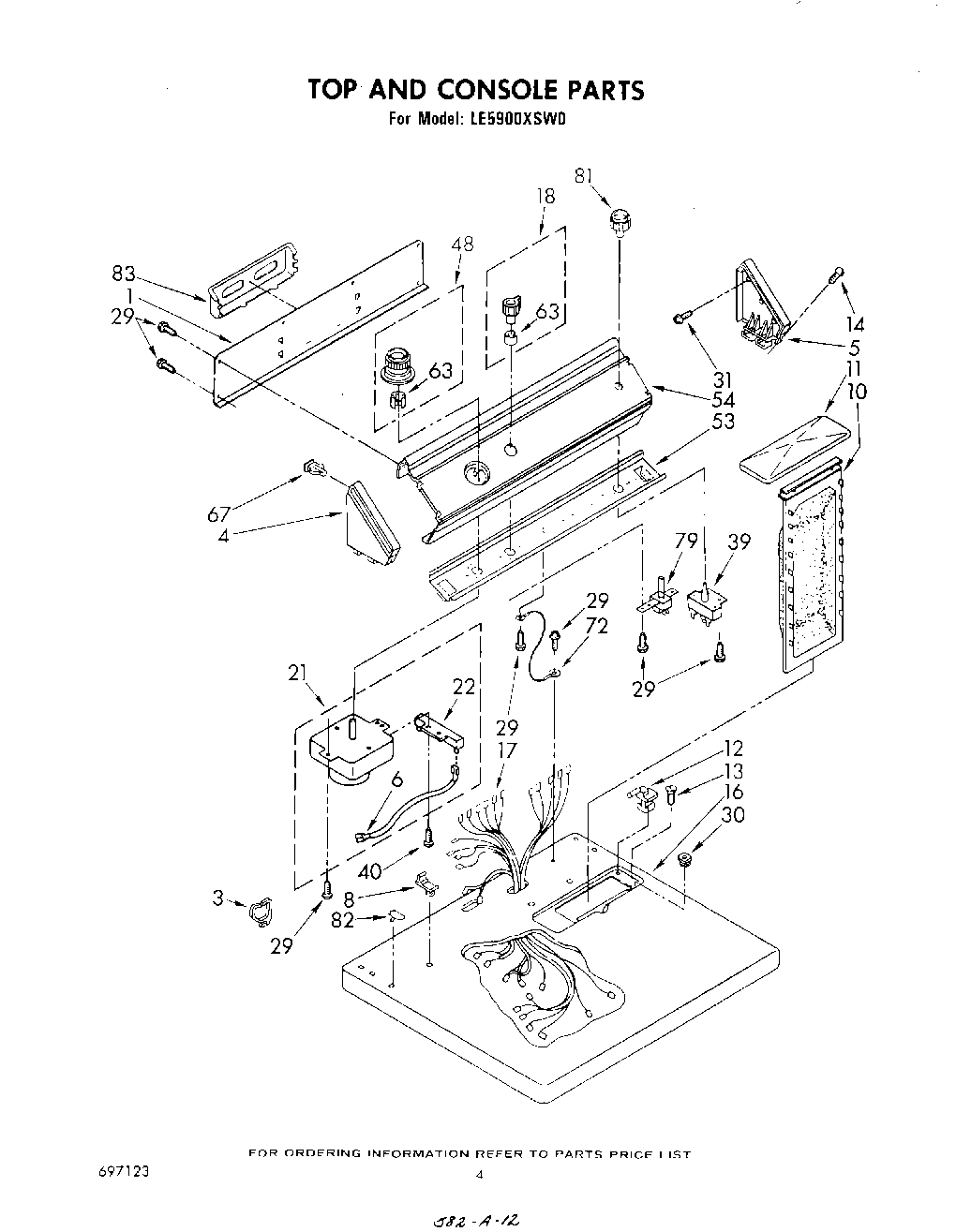

LE5900XSW0 03 – SECTION

LE5900XSW0 03 – SECTION

Written by

in

LE5900XSW0 03 – SECTION

Products

Position	Product
	WPL LIT677967
	Dryer
	WPL LIT677971
	Washer (Belt Drive)
	WPL 010875
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL 299805
1	Panel, Rear
3	Clip, Harness (Rear Bulkhead Area)
4	Cap, End (L.H.)
5	WPL 63795
6	Wire, Jumper
8	Stop, Push-In Top
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Golden Harvest)
16	Top (White)
16	Top (Toast)
16	Top (Platinum)
16	Top (Almond)
17	Harness, Wiring (60 Hz.)
18	Knob, Water Level
21	Timer and Resistor 60 Hz.
22	279872 Whirlpool Resistor
29	SCREW
30	98460 Whirlpool Nut
31	WPL 355326
39	Switch, Push-To-Start
39	(Alt.)
39	Switch, Push-To-Start (Alternate)
40	WP273556 Whirlpool Screw
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
63	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
79	Switch, Temperature Selector
81	Knob, Push To Start
82	Nut, Push-In (2)
83	350956 Whirlpool Spray Assembly
83	Leveler (Thinner)
83	WPL LIT696765
83	WPL LIT697391
83	WPL LIT697398
83	350938 Whirlpool Spray Gun
83	WPL LIT697123
83	WPL LIT697390
83	72017 Whirlpool Appliance Touch-Up Paint White
83	799344 Whirlpool Refrigerator Paint
83	Paint, Spray (13 Oz.) (Platinum)
83	Toast
83	Golden Harvest (Uncut)
83	72113 Whirlpool Touch-Up Paint
83	Rack, Literature
83	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
83	WPL 261880
83	350930 Whirlpool White Spray Paint
83	Platinum (Uncut)
83	WPL 72112
83	Almond (Uncut)
83	WP72107 Whirlpool Touchup
83	Enamal, Toast (1 Qt. Uncut)
