LE5920XKW0 02 – SECTION
Written by
in

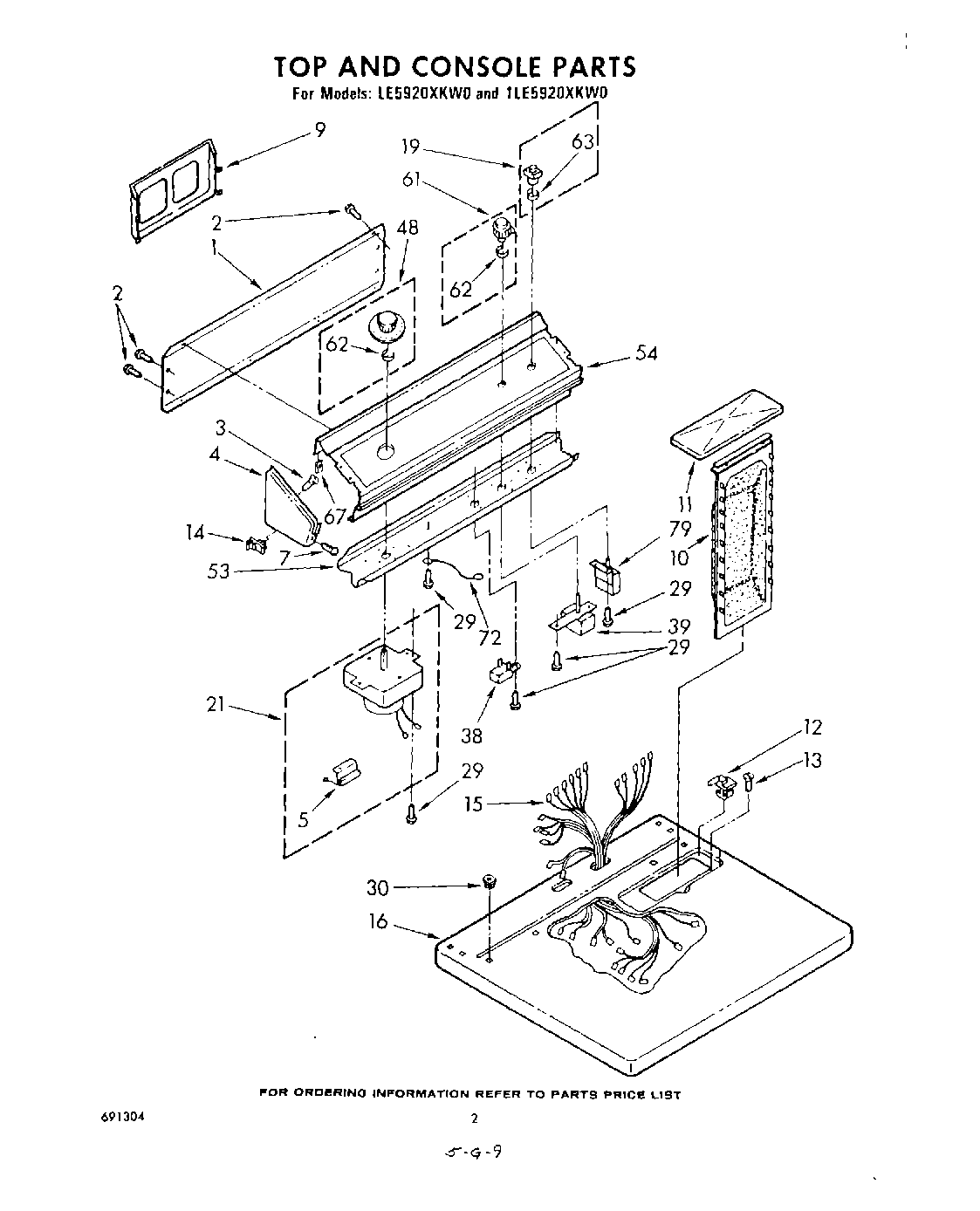

LE5920XKW0 02 – SECTION
Products
Position
Product
Almond (Uncut)
WPL ARI117432A
Wire, 25` Roll (Red 12 Ga.)
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
1
Panel, Rear Console
2
SCREW
3
WPL 355326
4
Cap, End L.H. (White)
4
Cap, End (L.H.) (White)
4
Cap, End L.H. (Almond Cap, End R.H.)
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4
Cap, End L.H. (Golden Harvest)
5
279872 Whirlpool Resistor
7
Screw, 8-18 x 1 (2)
9
Rack, Literature
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (Golden Harvest)
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Stop, Push-In Top
15
Harness, Wiring
16
Top (Golden Harvest)
16
Top (Almond)
16
top (white)
19
Button Assembly
21
Timer & Resistor Assembly, 60 Hz.
29
WP3390631 Whirlpool Screw
30
Nut, Push-In (2)
38
Buzzer, Mini
39
Switch, Rotary
48
Timer Knob Assembly
53
Bracket, Control
54
Panel, Control
61
Control Knob Assembly
62
WP688805 Whirlpool Spring Clip
63
Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
79
WPL 688898
79
WPL 690723
79
WPL 691304
79
350938 Whirlpool Spray Gun
79
350930 Whirlpool White Spray Paint
79
WPL 688643
79
WPL 685067
79
Golden Harvest
79
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79
W10851673 Whirlpool Transformer
79
Instructions, Wiring
79
Supplement, Installation Instructions
79
Leveler (Thinner)
79
WP72107 Whirlpool Touchup
79
72017 Whirlpool Appliance Touch-Up Paint White
79
Instructions, Harness Rework
79
Switch, Push-To-Start (Alternate)
79
350956 Whirlpool Spray Assembly
79
WPL 799351
←
