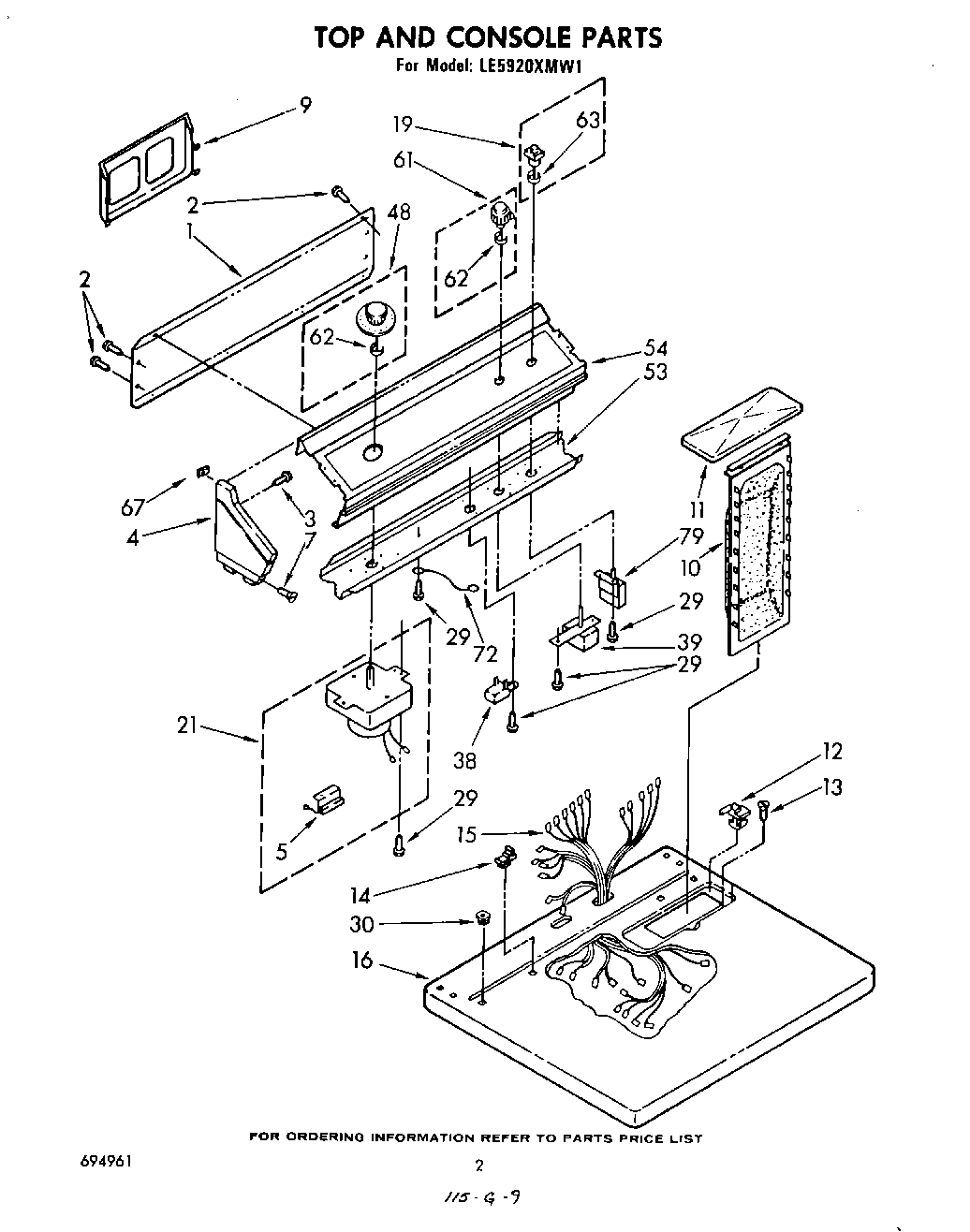

LE5920XMW1 02 – SECTION

LE5920XMW1 02 – SECTION

LE5920XMW1 02 – SECTION

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Platinum (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4Cap, End L.H. (Platinum)
4Cap, End L.H. (Toast)
5279872 Whirlpool Resistor
7Screw, 8-18 x 1 (2)
9Rack, Literature
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Stop, Push-In Top
15Harness, Wiring
16Top (Almond)
16Top (Toast)
16Top (Golden Harvest)
16top (white)
16Top (Platinum)
19Button Assembly
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
38WP694419 Whirlpool Buzzer Adjuster
39Switch, Rotary
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Control Knob Assembly
62WP688805 Whirlpool Spring Clip
63Clip
67Nut, Push-In (4)
72Wire, Ground
79350956 Whirlpool Spray Assembly
79350930 Whirlpool White Spray Paint
79350938 Whirlpool Spray Gun
79Switch, Push-To-Start
79Use & Care Guide
79WPL 799351
79Instructions, Installation
79WPL 694961
7972017 Whirlpool Appliance Touch-Up Paint White
79WP72107 Whirlpool Touchup
79WPL 693849
79Paint, Spray (13 Oz.) (Platinum)
79Toast
79WPL 72112
79Golden Harvest
7972113 Whirlpool Touch-Up Paint
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79Switch, Push-To-Start (Alternate)
79Leveler (Thinner)
79WPL 685067
