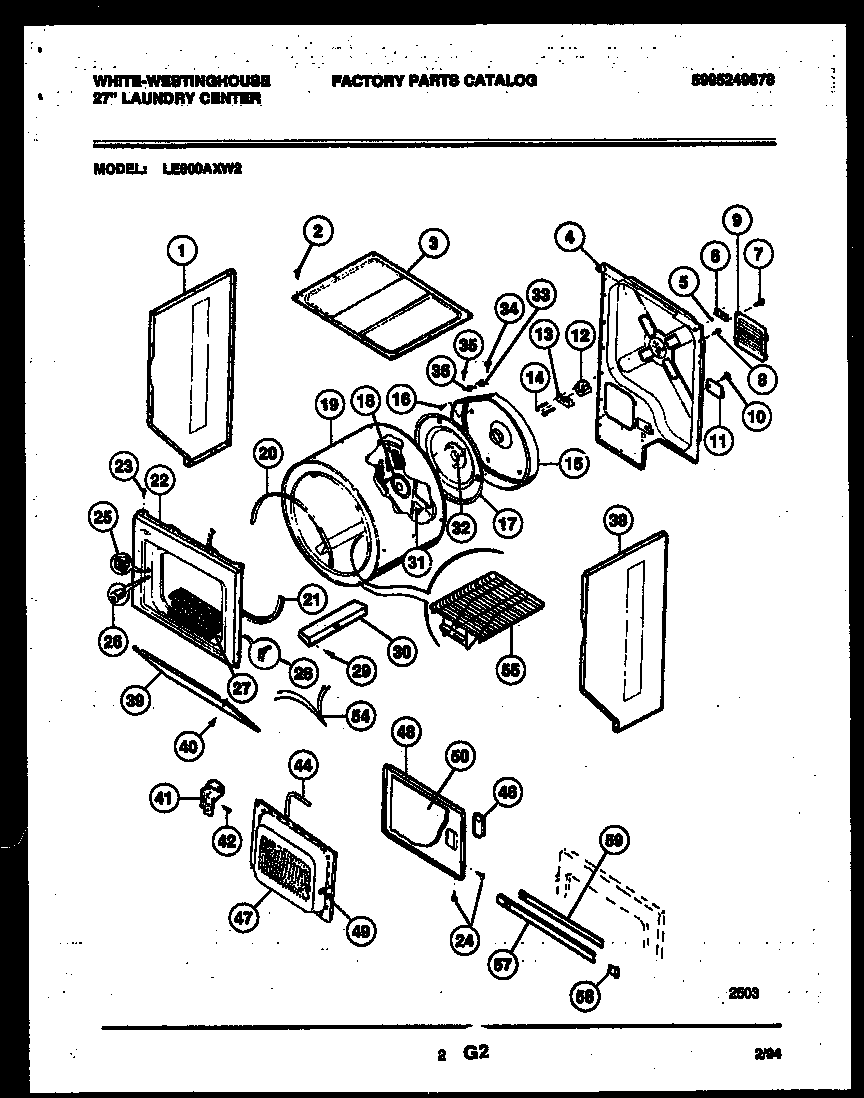

LE600AXD2 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*86655	316205500 Frigidaire Oven Nut
1	WCI 131084701
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	HEATER ASSY W/HSNG
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131150713
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	SAFETY THERMSTAT
34	131168200 Frigidaire Dryer Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
38	WCI 131084801
39	WCI 131084403
40	131202300 Frigidaire Screw
41	HINGE-LOWER
41	HINGE-UPPER
42	131302800 Frigidaire Drum Vane Screw
46	WCI 3024282
48	WCI 3204285
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 3205631
55	WCI 3204290
57	WCI 5303270935
58	WCI 5303208614
59	ADHESIVE STRIP
