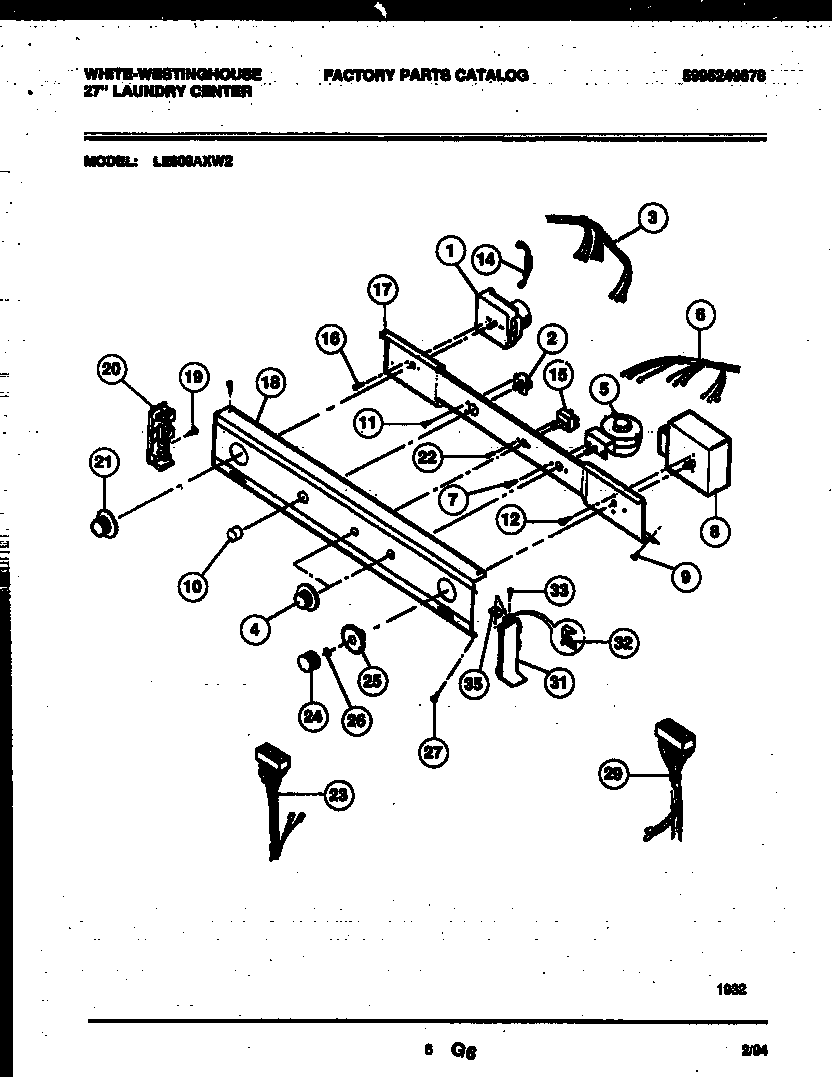

LE600AXD2 04 – CONSOLE AND CONTROL PARTS

Products

Position	Product
*86669	SWITCH-DRYER TEMP
*86669	SPACER PAD-CONTROL PANEL BRACKET (2)
1	WCI 5303269741
2	WCI 5303209890
3	WCI 5303270952
4	131858004 Frigidaire Control Knob, White
5	WCI 5303209894
6	WASHER CONTROL HARNESS
8	WCI 5303271775
9	131302800 Frigidaire Drum Vane Screw
10	WCI 3205632
11	WCI 08001544
14	RESISTOR-POWER, 4.4K
15	WCI 5308008463
16	SCREW (2)
17	WCI 131112102
18	CONTROL PANEL
19	131168200 Frigidaire Dryer Screw
20	WCI 5303209671
21	131859104 Frigidaire Dryer Timer Knob
22	WCI 3161259
23	WCI 131236700
24	WCI 5303210341
25	WCI 5303209901
26	SPACER-TIMER-SHAFT
27	SCREW (2)
29	WCI 131200500
31	WCI 5303210650
32	WCI 3204357
33	SCREW (2)
35	CLIP (8)
