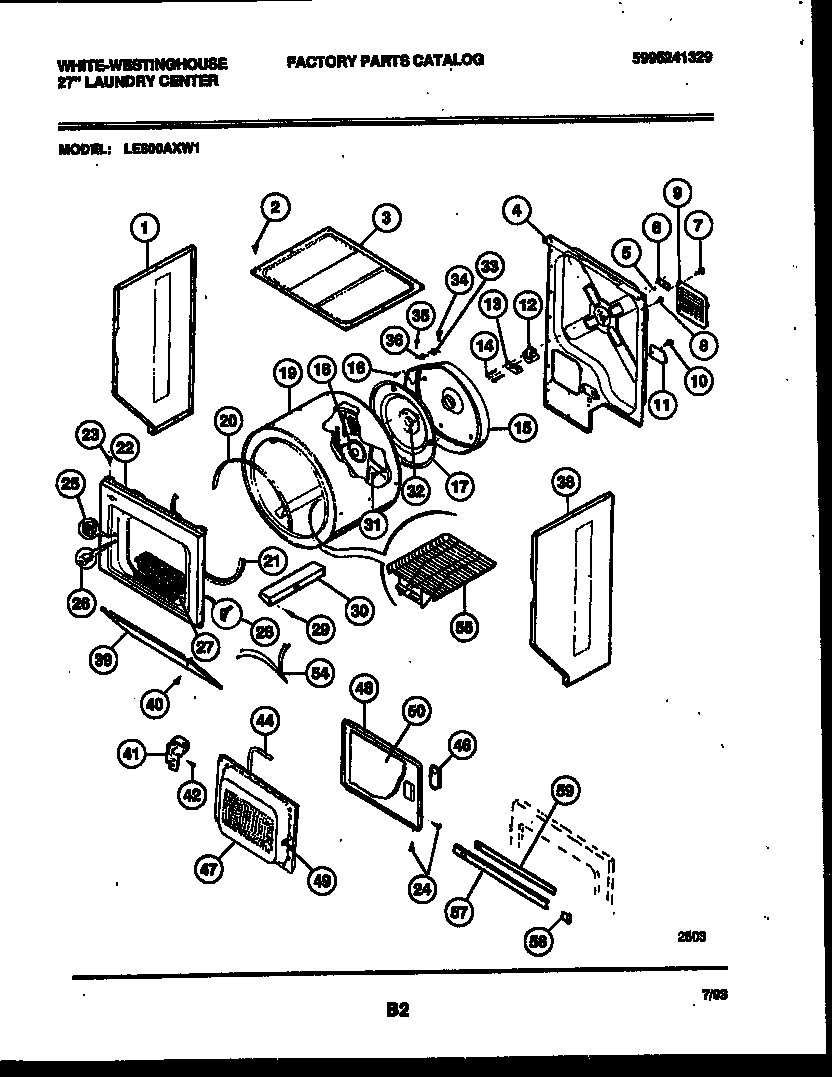

LE600AXW1 02 – CABINET AND COMPONENT PARTS

Products

Position	Product
*77009	316205500 Frigidaire Oven Nut
1	WCI 131084700
3	131883301 Frigidaire Panel
4	WCI 5303283283
5	5303281019 Frigidaire Ball Assembly
6	5303281020 Frigidaire Ball Clip
9	PANEL-MOTOR ACCESS
11	WCI 3204250
12	131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13	131724301 Frigidaire Dryer Drum Bearing Bracket
14	131205400 Frigidaire Screw
15	3937010 Frigidaire Dryer Heating Element Coil Kit
17	3204254 Frigidaire Baffle Assembly
18	SCREW (3) (PART OF REAR BEARING KIT.)
19	134138400 Frigidaire Drum Kit Assembly O/S3 Xxx
20	5303937139 Frigidaire Dryer Felt Seal and Glide Kit Drum
21	5303283286 Frigidaire Drum Felt Seal Lower Front
22	WCI 131150712
23	WCI 08011280
24	SCREW (8)
25	131658800 Frigidaire Dryer Door Catch Repair Kit
26	SWITCH-DOOR
27	LINT FILTER
28	CLIP GUIDE (4)
29	131382300 Frigidaire Screw-VANE
30	137552900 Frigidaire Vane
31	WCI 5303207393
32	5303931781 Frigidaire Shaft
33	SAFETY THERMSTAT
34	131168200 Frigidaire Dryer Screw
35	WCI 08010804
36	134120900 Frigidaire Dryer Limiter Thermal
38	WCI 131084800
39	137546910 Frigidaire Panel
40	131202300 Frigidaire Screw
41A	HINGE-LOWER
41	HINGE-UPPER
42A	131302800 Frigidaire Drum Vane Screw
44	137551901 Frigidaire Gasket
46	WCI 3204281
47	WCI 5303300245
48	WCI 3204284
49	5303207102 Frigidaire Door Strike
50	134535300 Frigidaire Insulator
54	WCI 3205631
55	WCI 3204290
57	WCI 5303270935
58	WCI 5303208614
59	ADHESIVE STRIP
