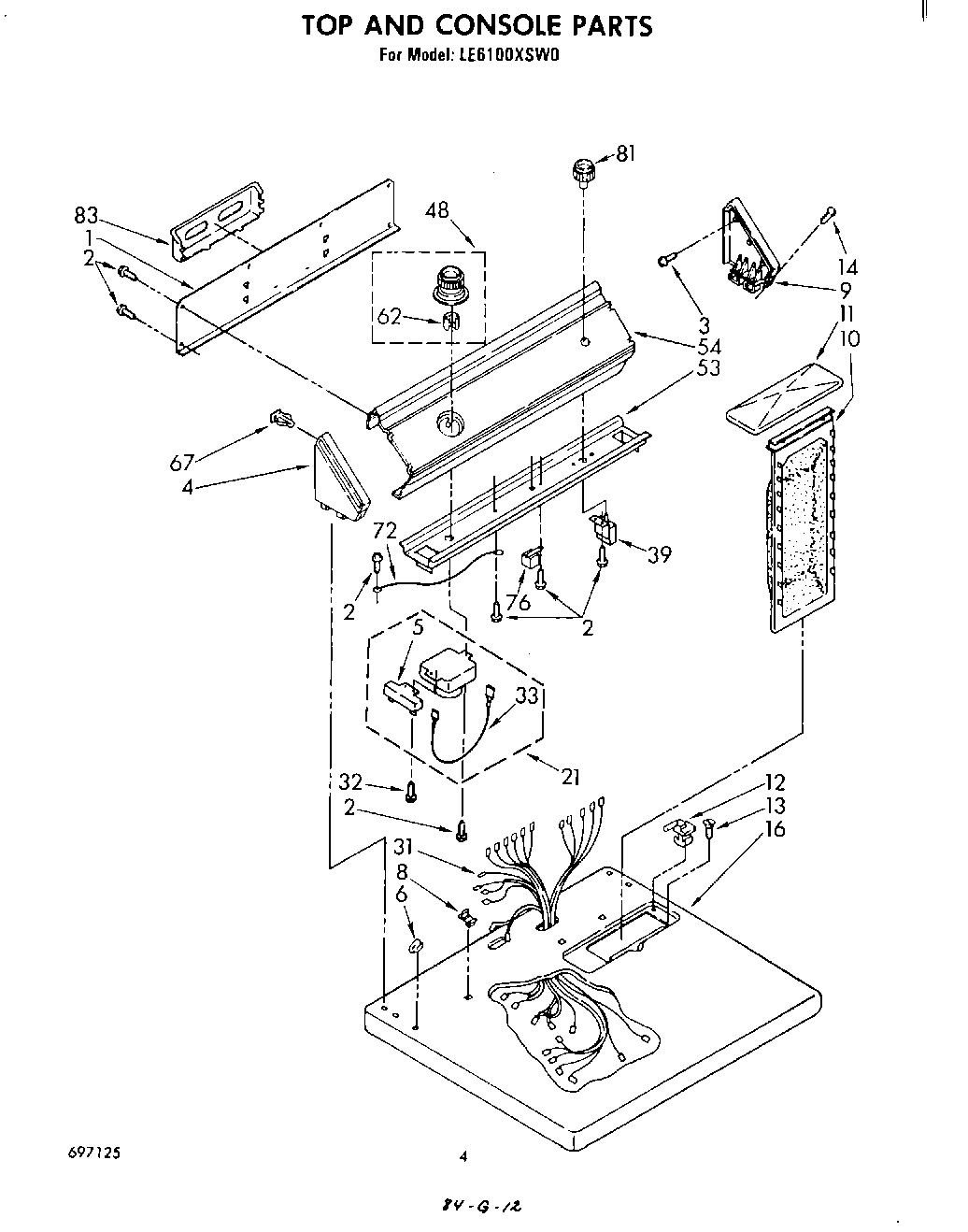

LE6100XSW0 03 – SECTION

Products

Position	Product
	WPL LIT697125
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	WPL LIT677967
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	WPL LIT677971
	Washer (Belt Drive)
	WPL LIT697561
	WPL LIT696234
	72113 Whirlpool Touch-Up Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350938 Whirlpool Spray Gun
	Almond (Uncut)
	WPL LIT696766
	350930 Whirlpool White Spray Paint
	Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	Nut, Push-In (2)
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Golden Harvest)
16	Top (Toast)
16	Top (Platinum)
16	Top (Almond)
16	Top (White)
21	Timer & Resistor Assembly, 60 Hz.
31	Harness, Wiring
32	WP273556 Whirlpool Screw
33	Wire, Jumper
39	WPL 685067
39	Switch, Push-To-Start (Alternate)
39	Switch, Push-To-Start
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
81	Knob, Push-To-Start
83	Rack, Literature
