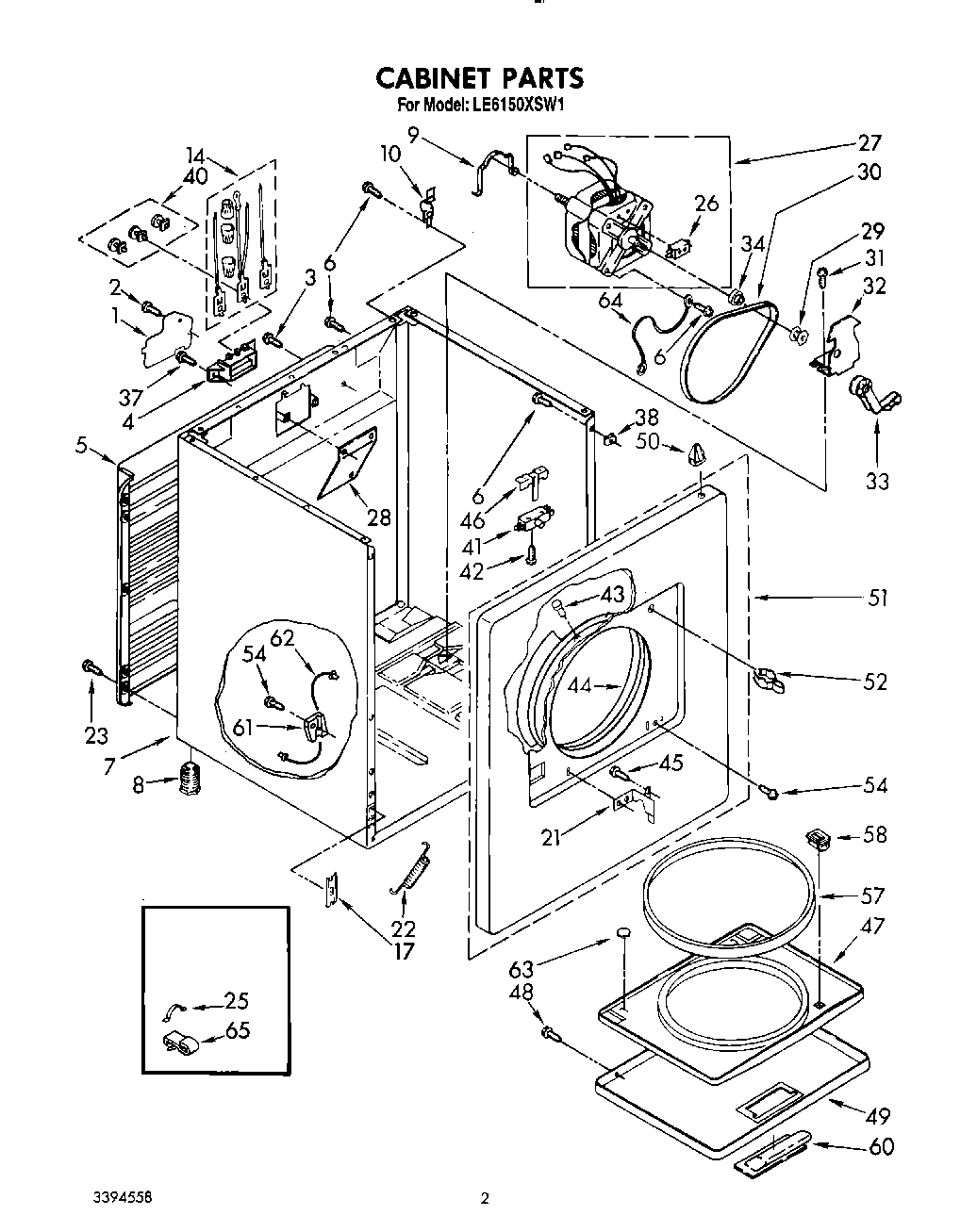

LE6150XSN1 02 – SECTION

LE6150XSN1 02 – SECTION

Written by

in

LE6150XSN1 02 – SECTION

Products

PositionProduct
1W11736322 Whirlpool Cover Assembly
2WP693995 Whirlpool Screw
3W10850756 Whirlpool Screw
4279320 Whirlpool Dryer Rear Terminal Block Kit
5Panel, Rear
6SCREW
7Cabinet (White)
7Cabinet (Almond)
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WP8066217 Whirlpool Hinge
14279318 Whirlpool Terminal
17W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
21Hinge, Door (R.H.)
21WP238460 Whirlpool Hinge
22WP337186 Whirlpool Door Spring
23WP489069 Whirlpool Compactor Screw
258528351 Whirlpool Clip
26279827 Whirlpool Dryer Drive Motor
28Shield, Light
29WP8066184 Whirlpool Dryer Motor Pulley
30341241 Whirlpool Dryer Drum Belt
313400500 Whirlpool Screw
32WP348780 Whirlpool Base
33WP691366 Whirlpool Dryer Idler Pulley Assembly
34WP3393657 Whirlpool Belt Retainer
37WP308685 Whirlpool Microwave Screw
38WP98234 Whirlpool Nut
40279393 Whirlpool Terminal Block Screw and Nut Kit
41W10820036 Whirlpool Door Switch Kit
42WP98129 Whirlpool Screw
43279220 Whirlpool Clip
44279264 Whirlpool Bearing and Seal Kit
45WP488627 Whirlpool Refrigerator Screw
46WP691581 Whirlpool Actuator
47Door, Rear
48WP694091 Whirlpool Screw
49Door, Front (Almond)
49Door, Front (White)
50WP18776 Whirlpool Lock
51Upper Front Panel Assembly (Almond)
51Upper Front Panel Assembly (White)
54WP90767 Whirlpool Screw
57W11613302 Whirlpool Door Seal
58279570 Whirlpool Dryer Door Latch Kit
60Handle, Door (Almond)
60WP348721 Whirlpool Handle
61GUIDE
61Guide, Cable (R.H.)
62Cable, Door (2)
63WP660975 Whirlpool Button Plug
64Wire, Ground (Motor)
65Clip, Retainer
