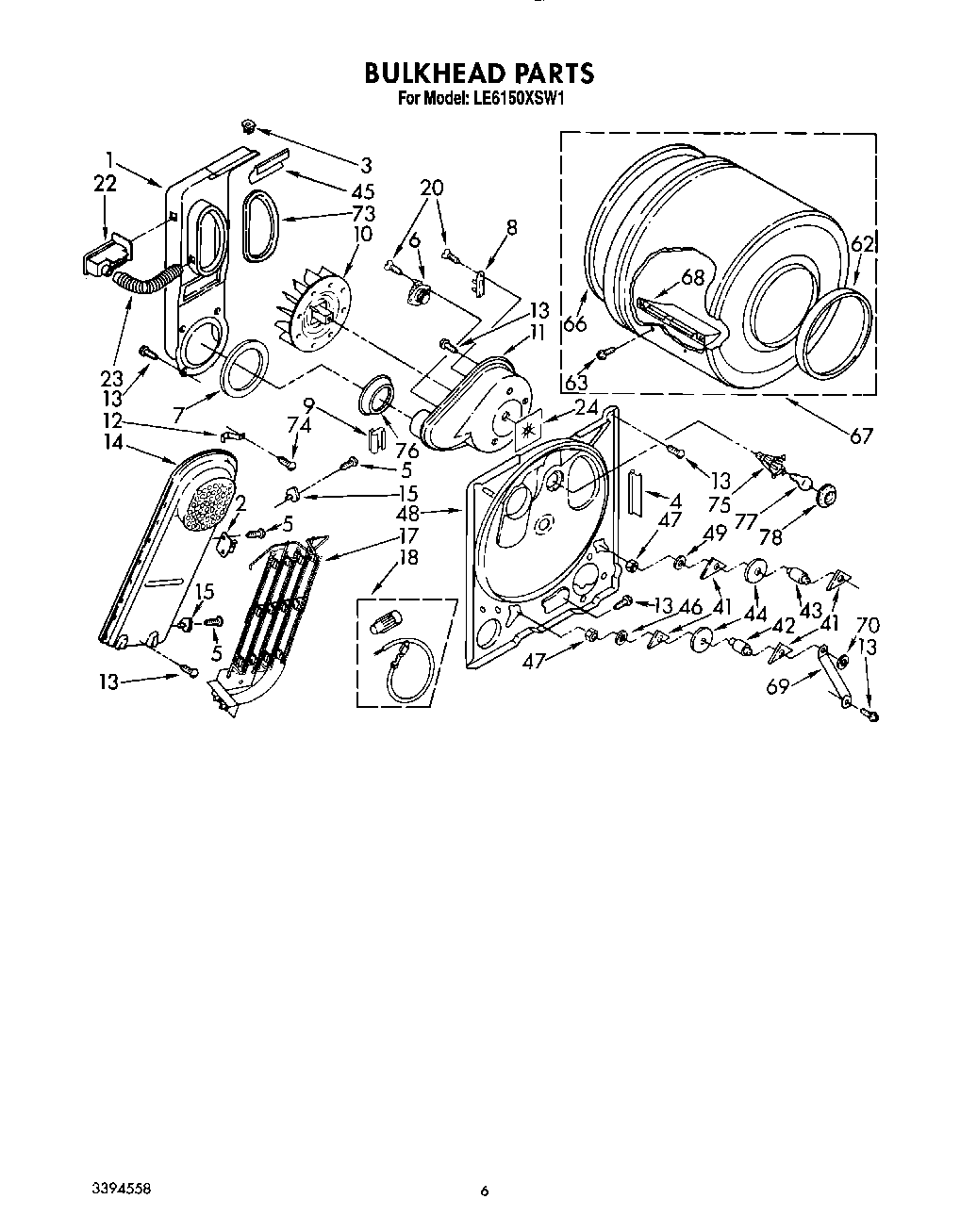

LE6150XSN1 04 – SECTION

Products

Position	Product
1	Lint Chute
2	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
3	98460 Whirlpool Nut
5	WP90767 Whirlpool Screw
6	WP3387134 Whirlpool Dryer Cycling Thermostat
7	W11415783 Whirlpool Seal
8	WP3392519 Whirlpool Dryer Thermal Fuse
9	686889 Whirlpool Pad
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	WP3390291 Whirlpool High Limit Thermostat
17	WP4391960 Whirlpool Dryer Heating Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP965173 Whirlpool Dishwasher Screw
22	Alert, Lint
23	Hose, Differential
24	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
45	686770 Whirlpool Support Bracket
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
49	WP3388703 Whirlpool Washer
62	WP3394508 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	3396775 Whirlpool Drum Assembly
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
75	Socket Assembly
76	W11233063 Whirlpool Shield Assembly
77	RANGE ONLY 40W 120V APPL BULB
78	Lens, Drum Light
