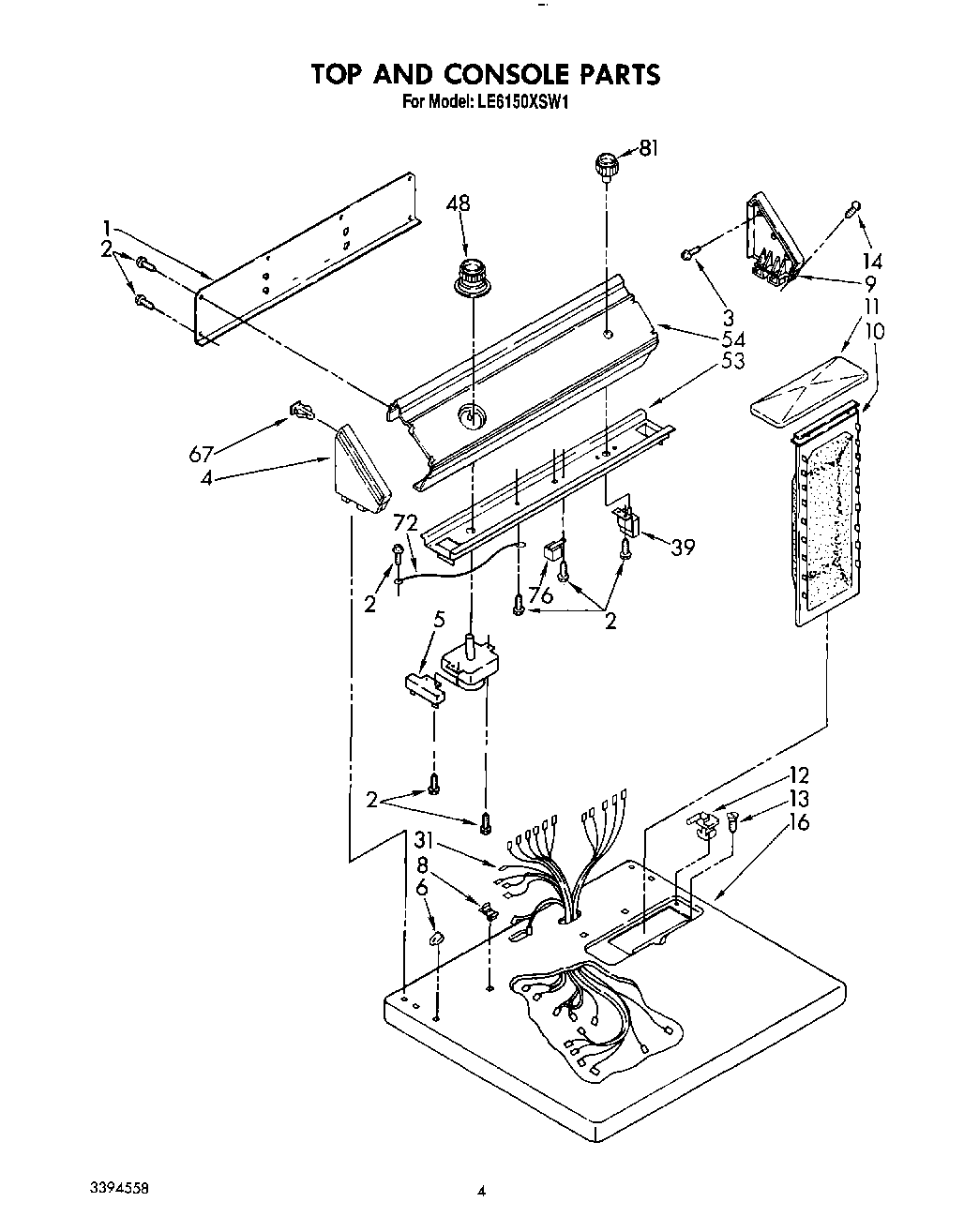

LE6150XSW1 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Use & Care Guide
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	List, Service Parts
	WP72107 Whirlpool Touchup
	Guide, Dryer
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	Nut, Push-In (2)
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (White)
16	Top (Almond)
21	Timer Assembly, 60 Hz.
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
81	Knob, Push To Start
