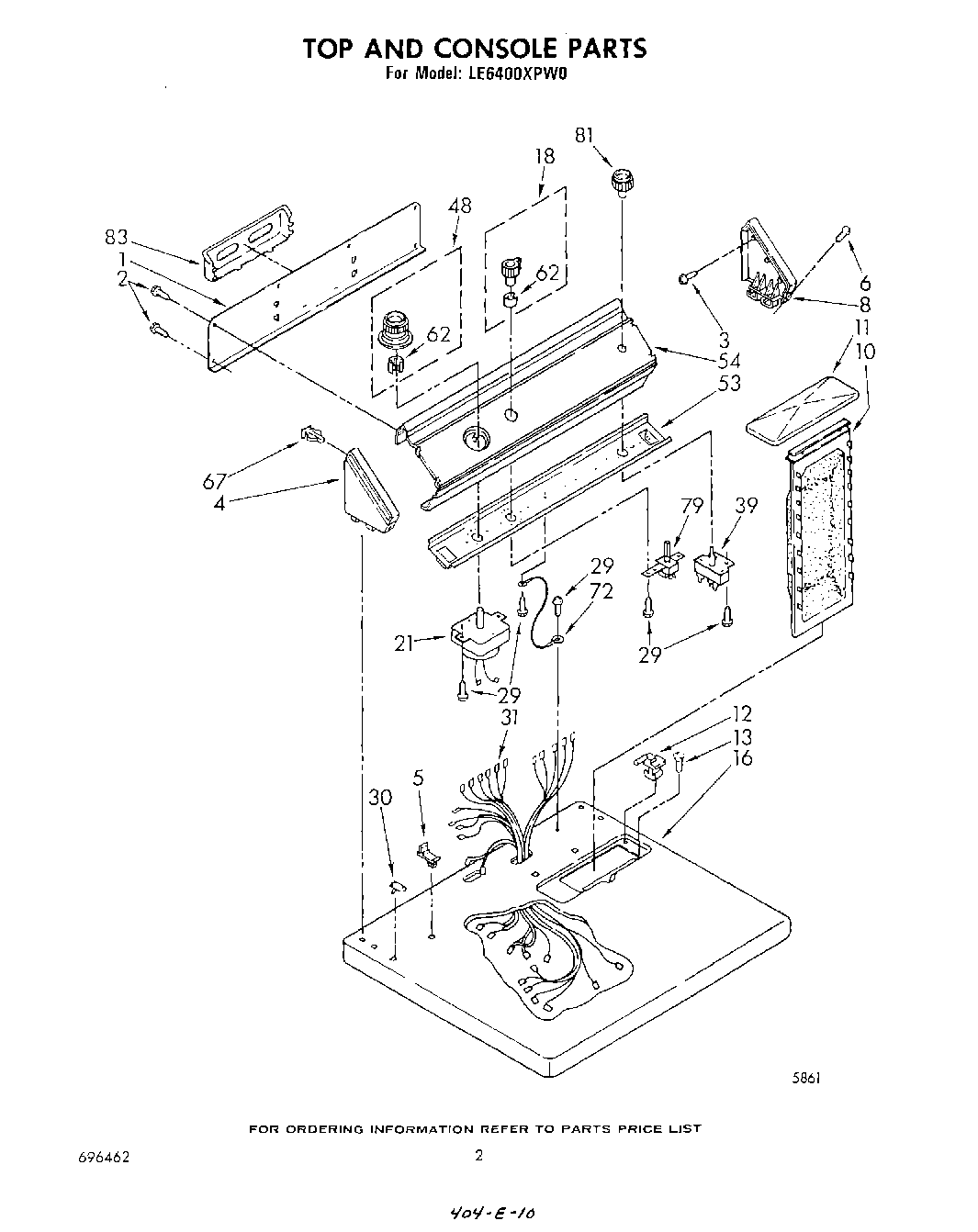

LE6400XPW0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	Guide, Dryer
	WPL LIT696234
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT696462
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	350956 Whirlpool Spray Assembly
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	WPL LIT696205
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	Stop, Push-In Top
6	WPL 64211
8	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Platinum)
16	Top (White)
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Toast)
18	KNOB Temperature Selector
21	Timer, 60 Hz.
29	WP3390631 Whirlpool Screw
30	Nut, Push-In (2)
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
76	WPL LIT677967
76	Dryer
79	Switch, Temperature Selector
81	Knob, Push-To-Start
83	Rack, Literature
