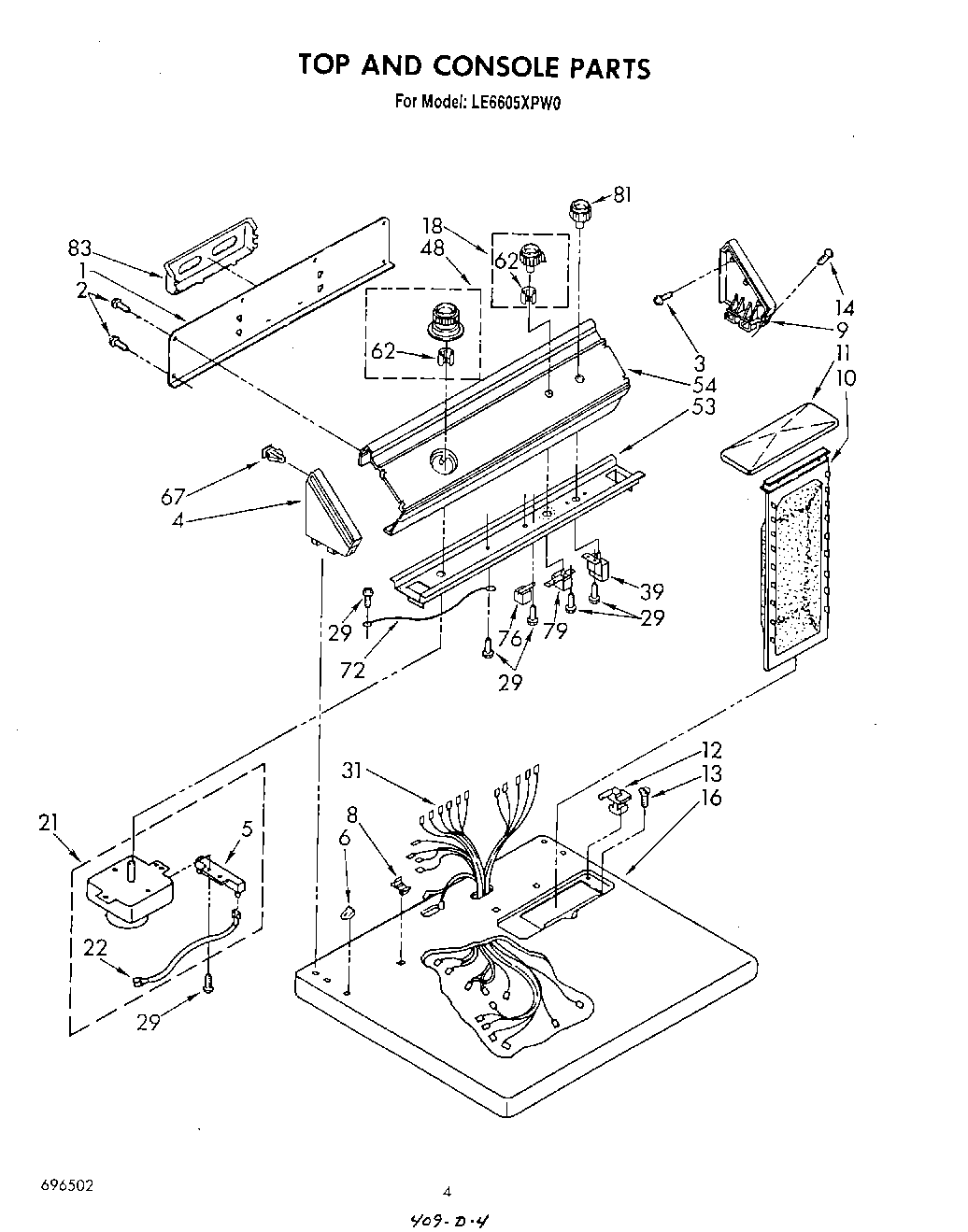

LE6605XPW0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Paint, Spray (13 Oz.) (Platinum)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL 72112
	72113 Whirlpool Touch-Up Paint
	Platinum (Uncut)
	Golden Harvest
	Golden Harvest (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	Toast
	Guide, Dryer
	WPL LIT696502
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT696234
	WPL LIT696746
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	Nut, Push-In (2)
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
16	Top (Golden Harvest)
16	Top (White)
16	Top (Toast)
16	Top (Platinum)
16	Top (Almond)
18	KNOB Temperature Selector
21	Timer and Resistor 60 Hz.
22	Wire, Jumper
29	WP3390631 Whirlpool Screw
31	Harness, Wiring
39	Switch, Push-To-Start
39	WPL 685067
39	Switch, Push-To-Start (Alternate)
48	Timer Knob & Dial
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	WPL 695091
81	Knob, Push-To-Start
83	Rack, Literature
