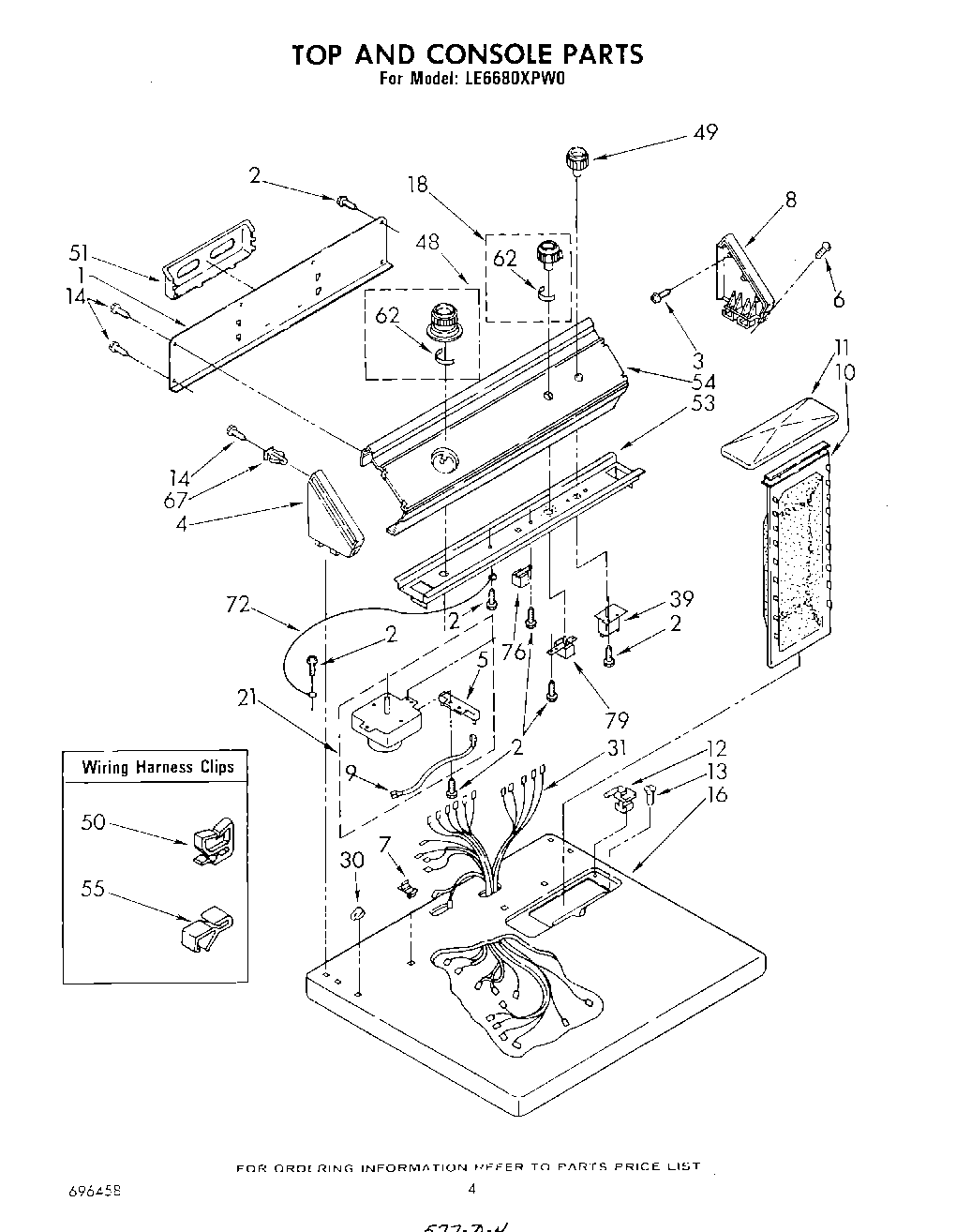

LE6680XPW0 03 – SECTION

LE6680XPW0 03 – SECTION

Written by

in

LE6680XPW0 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Toast
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL 72112
Platinum (Uncut)
72113 Whirlpool Touch-Up Paint
Enamal, Toast (1 Qt. Uncut)
Golden Harvest
Paint, Spray (13 Oz.) (Platinum)
Golden Harvest (Uncut)
Guide, Dryer
WPL LIT696234
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT696207
WPL LIT696458
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 64211
7Stop, Push-In Top
8WPL 63795
9Wire, Jumper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
16Top (Toast)
16Top (White)
16Top (Platinum)
16Top (Almond)
16Top (Golden Harvest)
18KNOB Temperature Selector
21Timer and Resistor 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
39WPL 685067
48Timer Knob & Dial
49Knob, Push-To-Start
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
55Clip, Retainer
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76Dryer
76WPL LIT677967
76WP694419 Whirlpool Buzzer Adjuster
76Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
79WPL 695091
