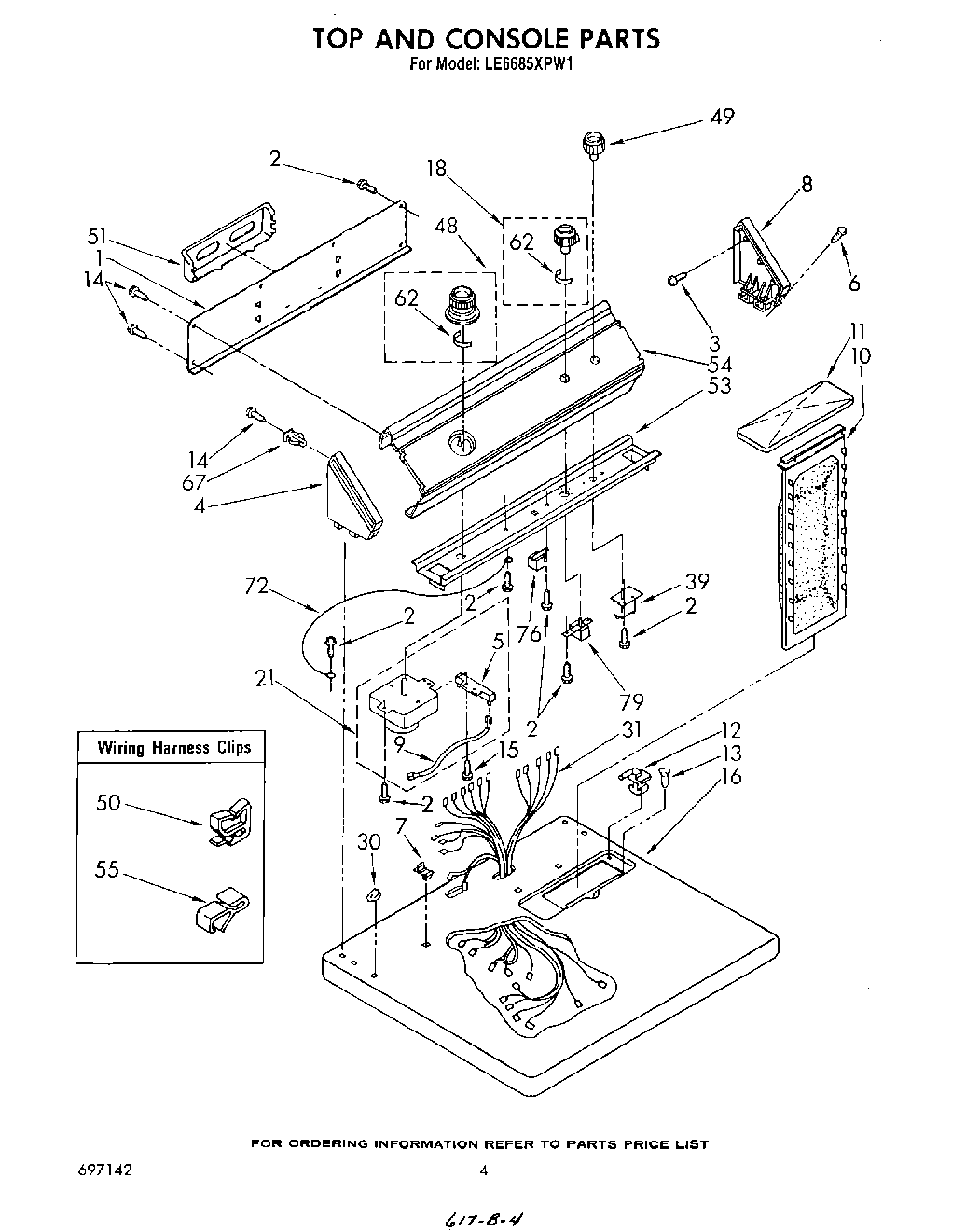

LE6685XPW1 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	72113 Whirlpool Touch-Up Paint
	Paint, Spray (13 Oz.) (Platinum)
	Golden Harvest
	Toast
	Guide, Dryer
	WPL LIT696234
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL LIT697142
	WP72107 Whirlpool Touchup
	WPL LIT3387068
	Leveler (Thinner)
	Almond (Uncut)
1	Panel, Rear
2	SCREW
3	WPL 355326
4	Cap, End (L.H.)
5	279872 Whirlpool Resistor
6	WPL 64211
7	Stop, Push-In Top
8	WPL 63795
9	Wire, Jumper
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP489069 Whirlpool Compactor Screw
15	WP273556 Whirlpool Screw
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Toast)
16	Top (Platinum)
16	Top (White)
18	KNOB Temperature Selector
21	Timer & Resistor (60 Hz.)
30	Nut, Push-In (2)
31	Harness, Wiring
39	(Alt.)
39	Switch, Push-To-Start
39	Switch, Push-To-Start (Alternate)
48	Timer Knob & Dial
49	Knob, Push-To-Start
50	Clip, Harness (Rear Bulkhead Area)
51	Rack, Literature
53	Bracket, Control
54	Panel, Control
55	Clip, Retainer
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	WPL 695091
