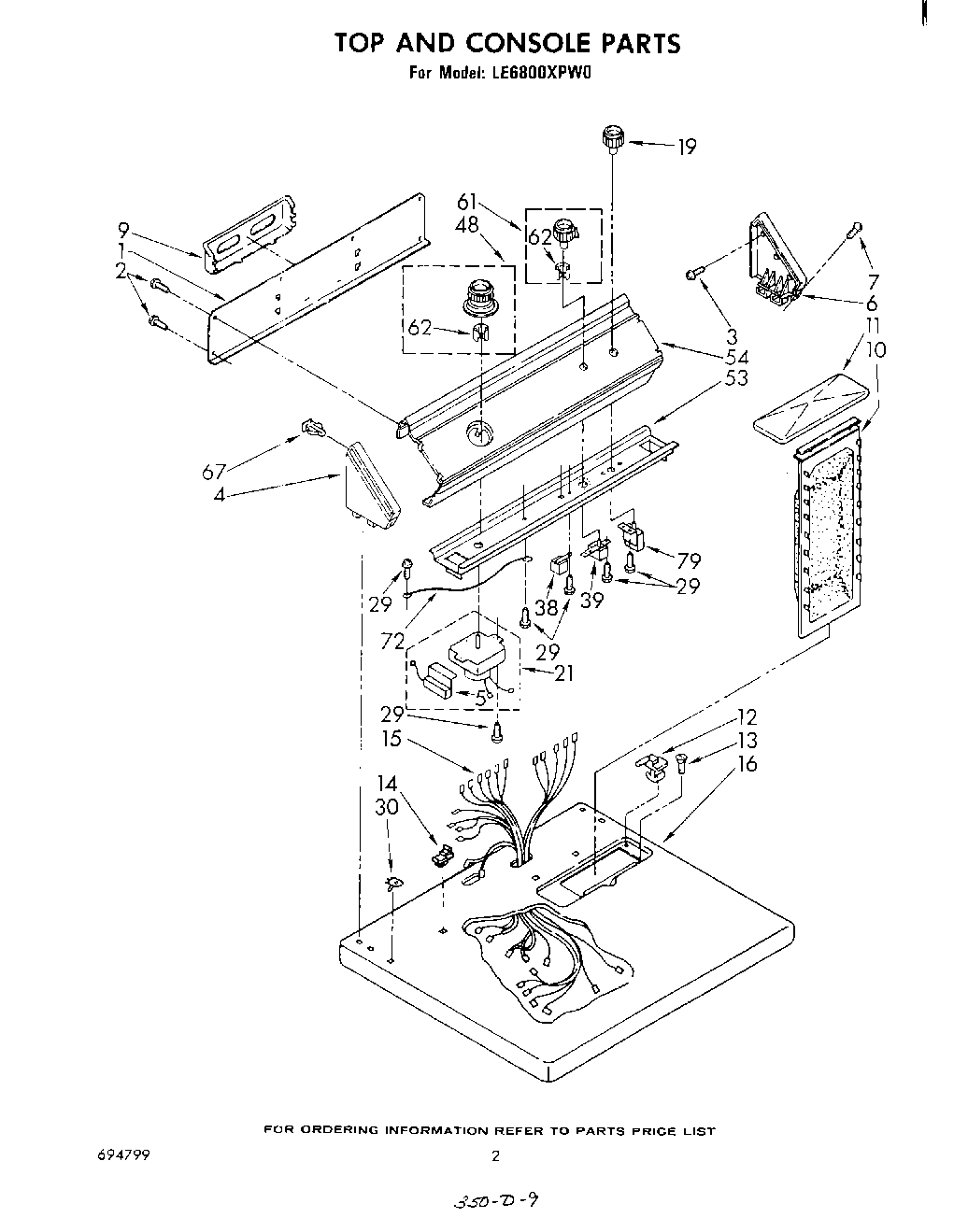

LE6800XPW0 02 – SECTION

Products

PositionProduct
Almond (Uncut)
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 63795
7WPL 64211
9Rack, Literature
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Stop, Push-In Top
15Harness, Wiring
16Top (Almond)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
16Top (White)
19Knob, Push To Start
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
38WP694419 Whirlpool Buzzer Adjuster
39Switch, Temperature Selector
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
61Knob, Water Level
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79Leveler (Thinner)
79WP72107 Whirlpool Touchup
7972017 Whirlpool Appliance Touch-Up Paint White
79350930 Whirlpool White Spray Paint
79350956 Whirlpool Spray Assembly
79Switch, Push-To-Start
79Use & Care Guide
79350938 Whirlpool Spray Gun
79List, Parts
79WPL 799351
79Switch, Push-To-Start (Alternate)
79WPL 685067
79WPL 693849
79WPL 72112
79Paint, Spray (13 Oz.) (Platinum)
79Toast
79Golden Harvest
7972113 Whirlpool Touch-Up Paint
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79Instructions, Installation
