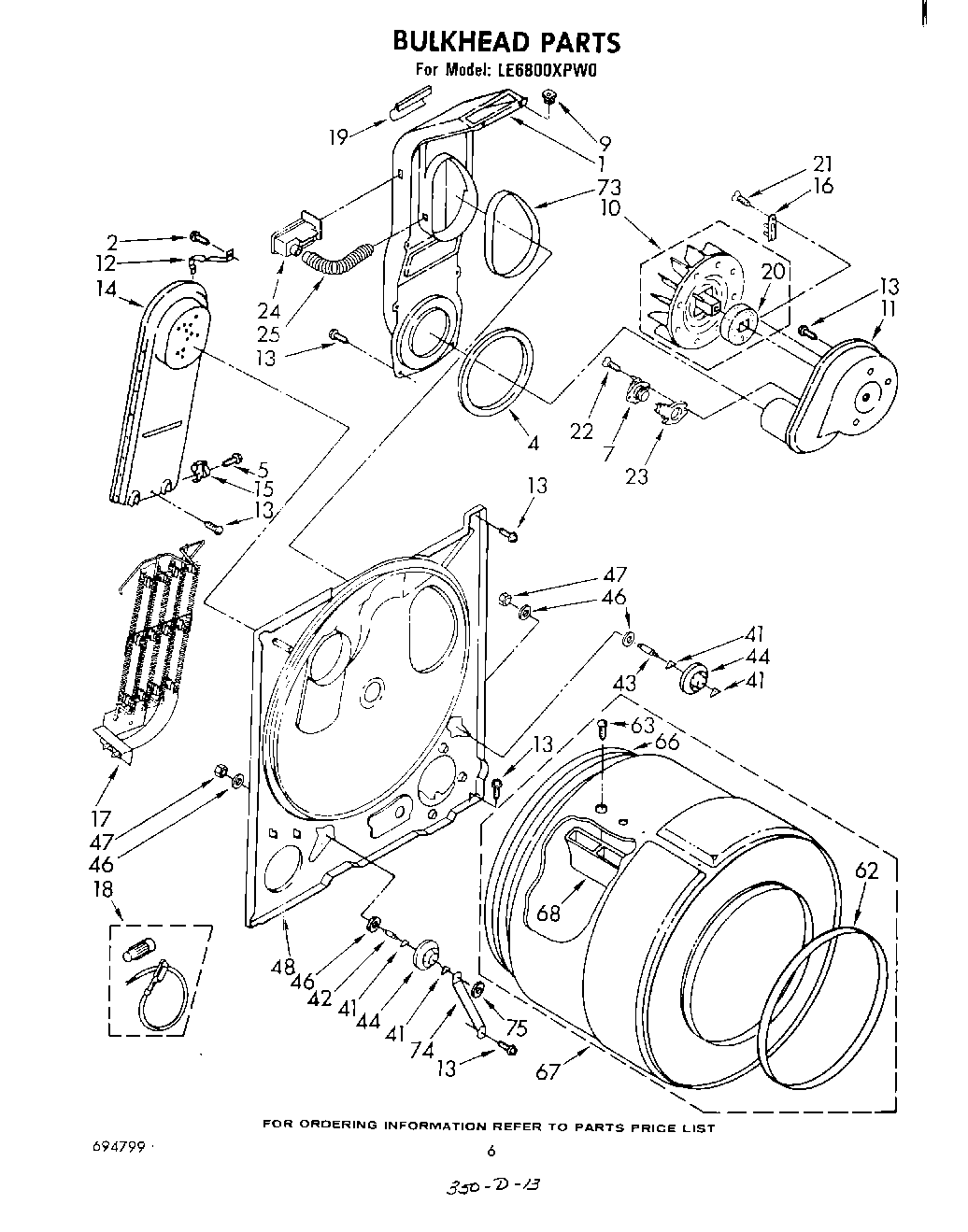

LE6800XPW0 04 – SECTION

LE6800XPW0 04 – SECTION

Written by

in

LE6800XPW0 04 – SECTION

Products

PositionProduct
1Lint Chute
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
7WP694674 Whirlpool Cycling Thermostat
998460 Whirlpool Nut
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
16WP3392519 Whirlpool Dryer Thermal Fuse
17WP4391960 Whirlpool Dryer Heating Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19686770 Whirlpool Support Bracket
20Seal, Blower
21WP965173 Whirlpool Dishwasher Screw
22WP488729 Whirlpool Refrigerator Door Screw
23Thermostat, Heater
24Alert, Lint
25Hose, Differential
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
73SEAL
74Bracket, Support
75WP90296 Whirlpool Clip
