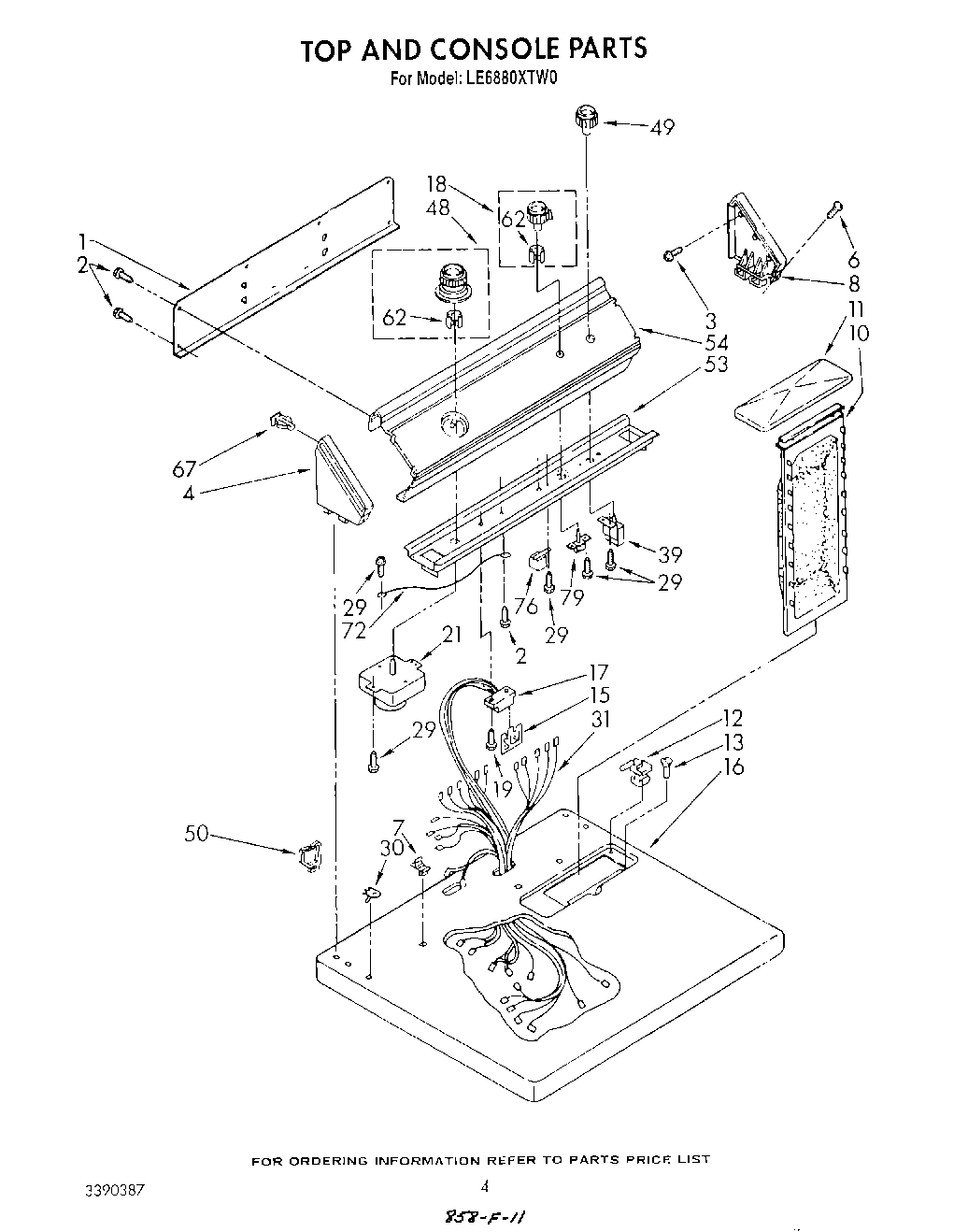

LE6880XTF0 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL 72112
72113 Whirlpool Touch-Up Paint
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL LIT3390387
Guide, Dryer
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Instructions, Installation
WPL LIT3391355
1Panel, Rear
3WPL 355326
4Cap, End (L.H.)
6WPL 64211
7Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Control, Electronic
16Top (Golden Harvest)
16Top (Almond)
16Top (White)
16Top (Toast)
16Top (Platinum)
17Connector
18Control Knob, Temperature
21Timer, 60Hz.
29SCREW
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Knob, Push-To-Start
50Clip, Harness (Rear Bulkhead Area)
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
