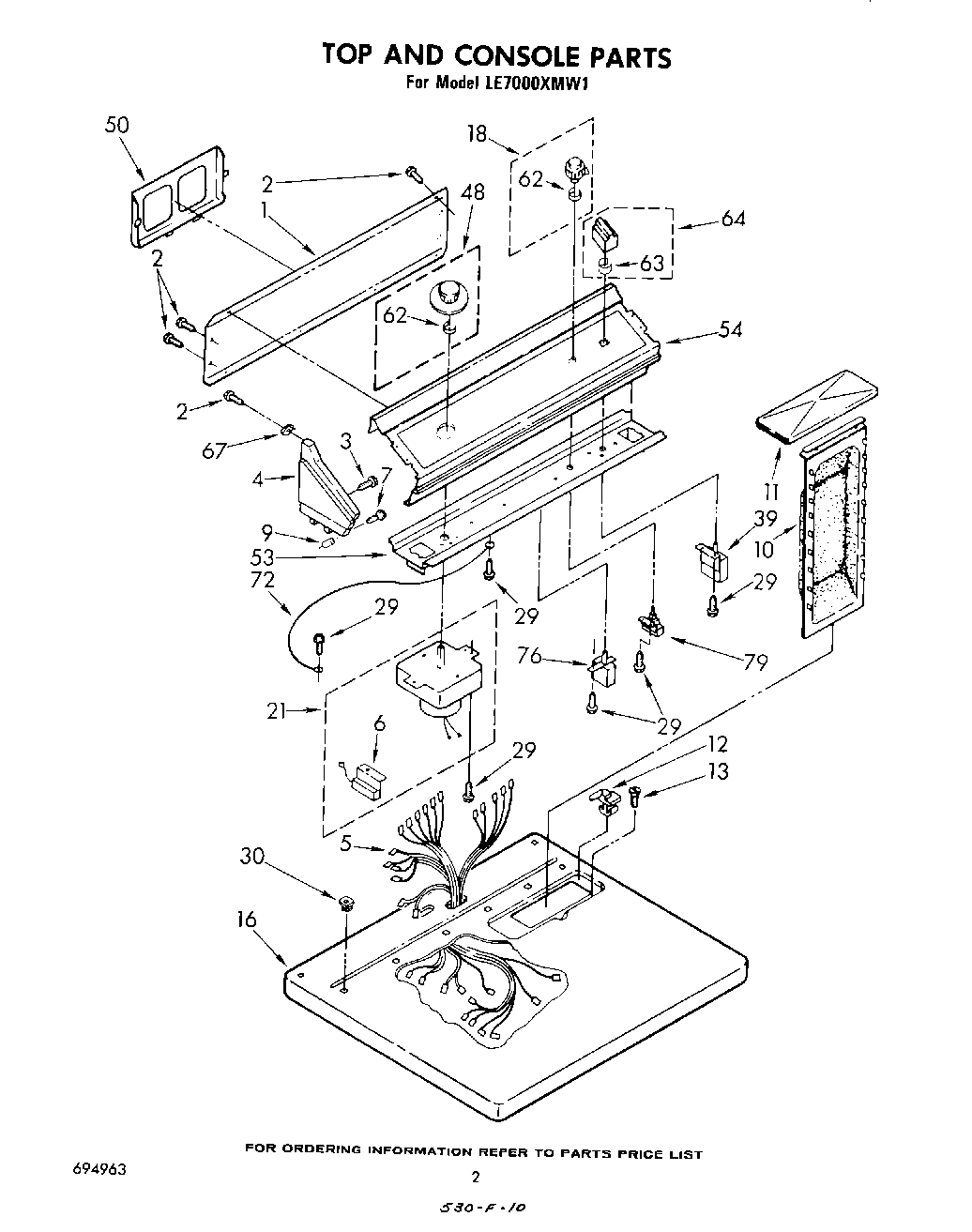

LE7000XMW1 02 – SECTION

Products

PositionProduct
Enamal, Toast (1 Qt. Uncut)
WPL 799351
Golden Harvest (Uncut)
Almond (Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (White)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End L.H. (Toast)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Platinum)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Toast)
5Harness, Wiring
6279872 Whirlpool Resistor
7Screw, 8-18 x 1 (2)
9Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16top (white)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
18Control Knob Assembly
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39WPL 685067
48Timer Knob Assembly
50Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
63Clip
64Button Assembly
67Clip (4)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 72112
79350938 Whirlpool Spray Gun
79350956 Whirlpool Spray Assembly
79Instructions, Installation
79WPL 691274
7972017 Whirlpool Appliance Touch-Up Paint White
79Switch, Fabric Selector Temperature
79WP72107 Whirlpool Touchup
79350930 Whirlpool White Spray Paint
79Leveler (Thinner)
79WPL 693849
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
7972113 Whirlpool Touch-Up Paint
79Golden Harvest
79Toast
79Paint, Spray (13 Oz.) (Platinum)
79WPL 694963
