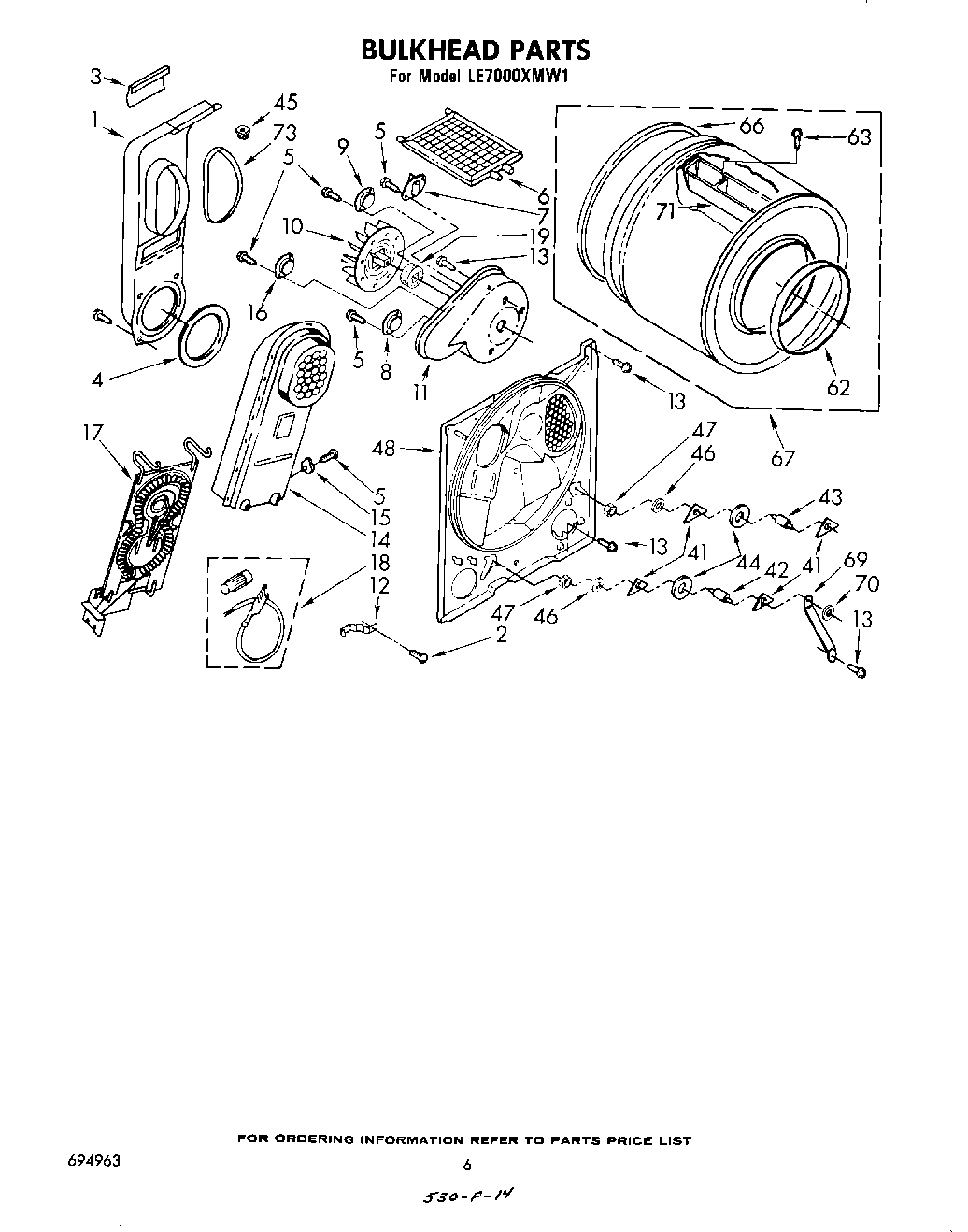

LE7000XMW1 04 – SECTION

Products

Position	Product
1	279505 Whirlpool Chute
3	686770 Whirlpool Support Bracket
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	WP689790 Whirlpool Dryer Rack
7	WP3390719 Whirlpool Dryer Thermal Fuse
8	WP694674 Whirlpool Cycling Thermostat
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	279052 Whirlpool Thermostat L250 3W
17	WP4391960 Whirlpool Dryer Heating Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
45	98460 Whirlpool Nut
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
62	WP3394509 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	697760 Whirlpool Drum Assembly Primary OS2
69	Bracket, Support
70	WP90296 Whirlpool Clip
71	WP342847 Whirlpool Drum Baffle
73	SEAL
