LE7000XPW0 02 – SECTION

LE7000XPW0 02 – SECTION

Written by

in

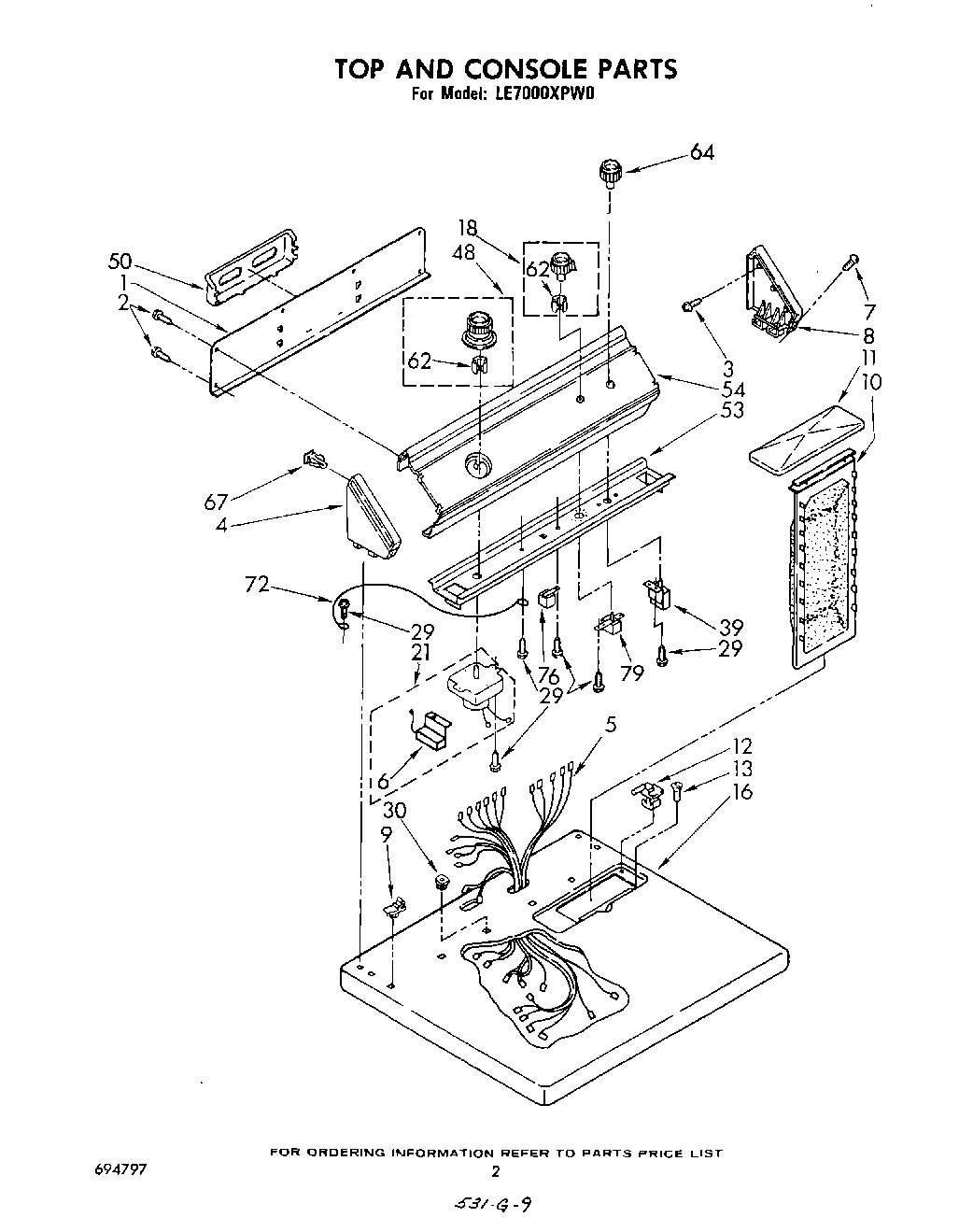

LE7000XPW0 02 – SECTION

Products

PositionProduct
Almond (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 799351
799344 Whirlpool Refrigerator Paint
Golden Harvest (Uncut)
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Harness, Wiring
6279872 Whirlpool Resistor
7WPL 64211
8WPL 63795
9Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Golden Harvest)
16Top (Toast)
16Top (Almond)
16Top (Platinum)
16Top (White)
18Knob, Water Level
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
39WPL 685067
48Timer Knob Assembly
50Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
64Knob, Push To Start
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Use & Care Guide
79Instructions, Installation
79List, Service Parts
79WPL 695091
79WPL 693849
79350956 Whirlpool Spray Assembly
7972017 Whirlpool Appliance Touch-Up Paint White
79WP72107 Whirlpool Touchup
79Leveler (Thinner)
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
7972113 Whirlpool Touch-Up Paint
79Golden Harvest
79Toast
79Paint, Spray (13 Oz.) (Platinum)
79WPL 72112
79350930 Whirlpool White Spray Paint
79350938 Whirlpool Spray Gun
