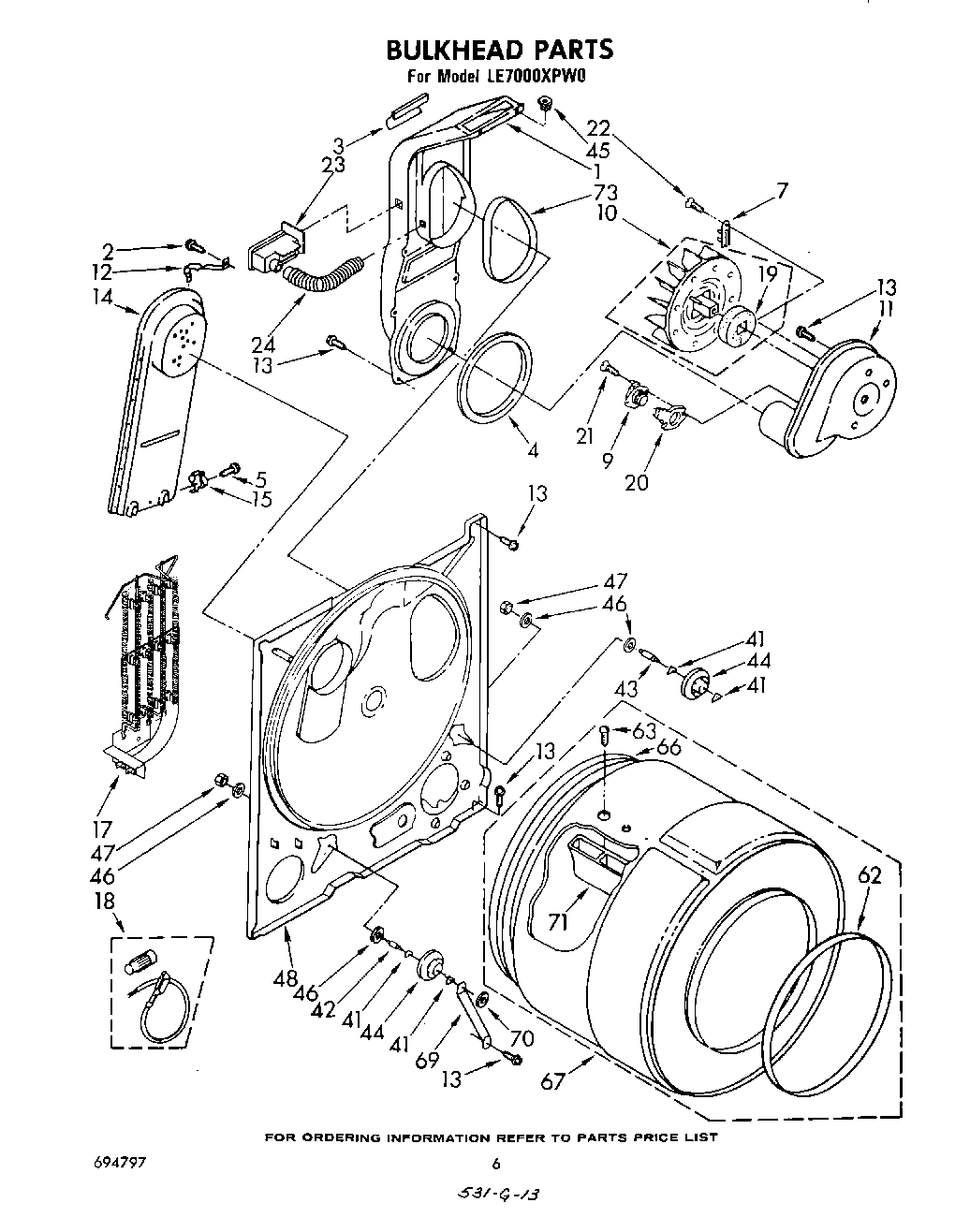

LE7000XPW0 04 – SECTION

LE7000XPW0 04 – SECTION

Written by

in

LE7000XPW0 04 – SECTION

Products

PositionProduct
1Lint Chute
3686770 Whirlpool Support Bracket
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
7WP3392519 Whirlpool Dryer Thermal Fuse
9WP694674 Whirlpool Cycling Thermostat
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
17WP4391960 Whirlpool Dryer Heating Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19Seal, Blower
20Thermostat, Heater
21WP488729 Whirlpool Refrigerator Door Screw
22WP965173 Whirlpool Dishwasher Screw
23Alert, Lint
24Hose, Differential
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
4598460 Whirlpool Nut
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
69Bracket, Support
70WP90296 Whirlpool Clip
71WP342847 Whirlpool Drum Baffle
73SEAL
