LE7000XSW0 02 – SECTION

LE7000XSW0 02 – SECTION

Written by

in

LE7000XSW0 02 – SECTION

Products

PositionProduct
WPL LIT696234
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677967
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677971
Washer (Belt Drive)
Guide, Dryer
WPL LIT696493
WPL LIT696220
72113 Whirlpool Touch-Up Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350956 Whirlpool Spray Assembly
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
Dryer
350930 Whirlpool White Spray Paint

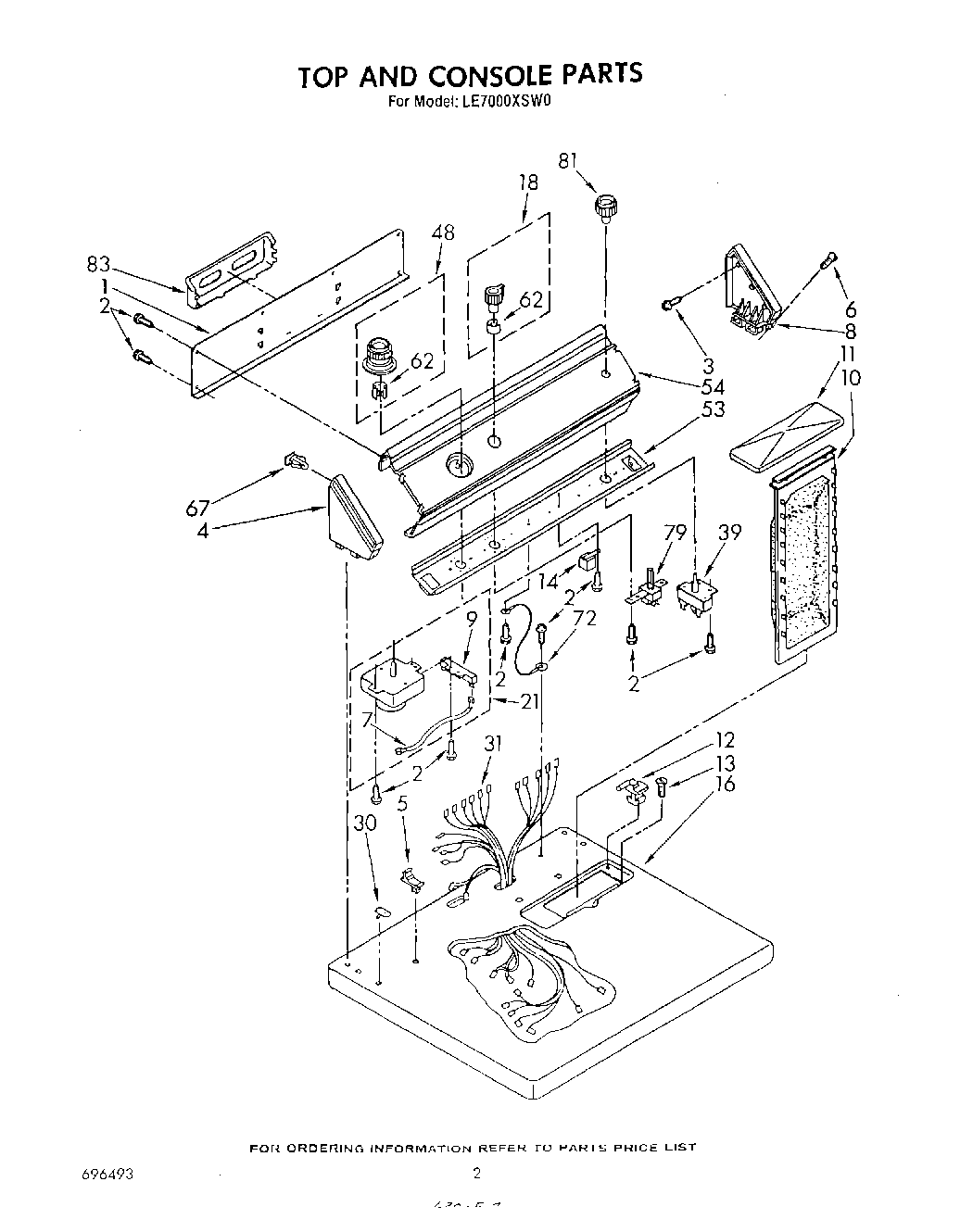

1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WPL 64211
7Wire, Jumper
8WPL 63795
9279872 Whirlpool Resistor
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP694419 Whirlpool Buzzer Adjuster
16Top (Toast)
16Top (Platinum)
16Top (Golden Harvest)
16Top (Almond)
16Top (White)
18Control Knob, Temperature
21Timer & Resistor Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
39(Alt.)
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
79Switch, Temperature (Variable)
81Knob, Push-To-Start
83Rack, Literature
