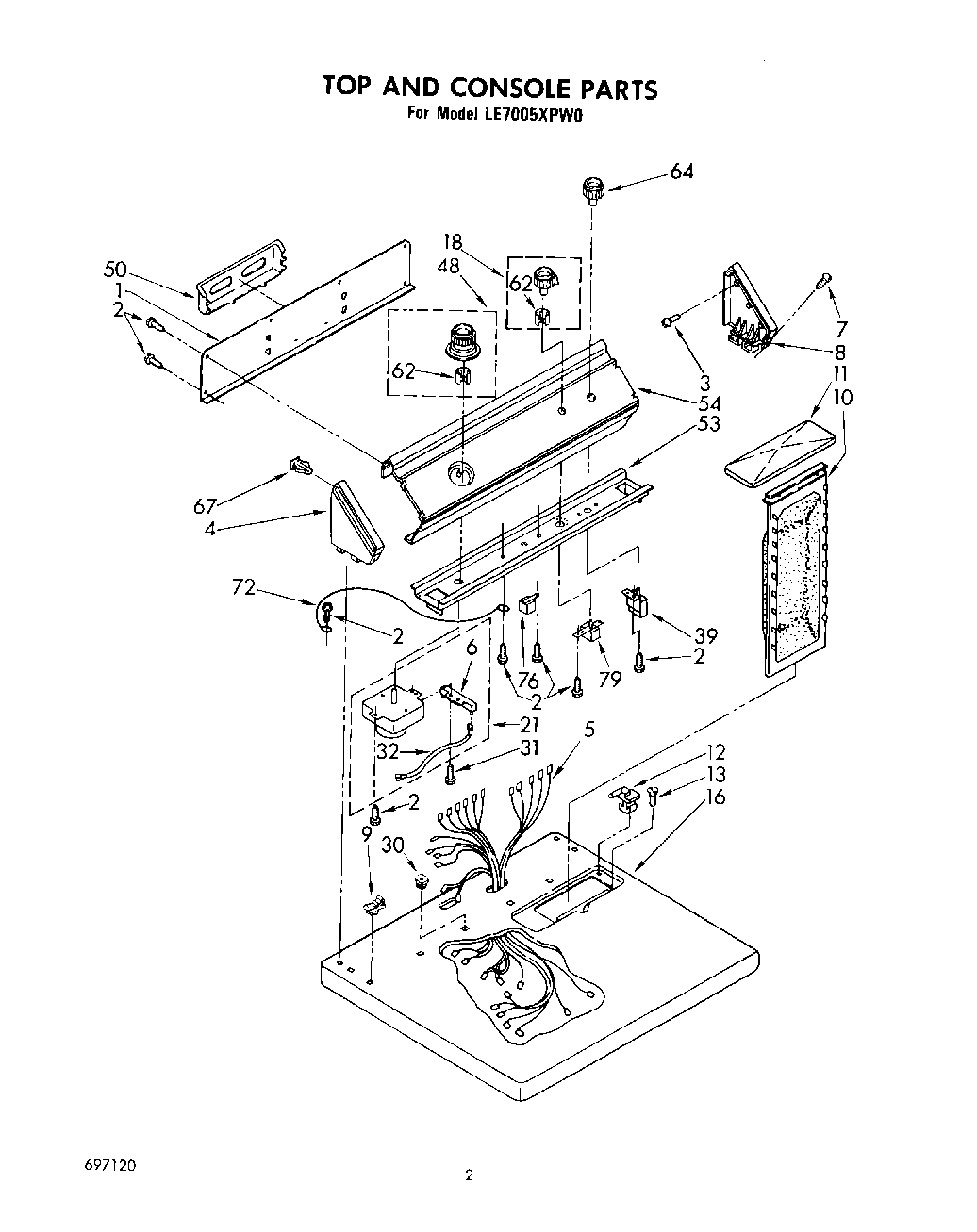

LE7005XPW0 02 – SECTION

Products

PositionProduct
WPL LIT677971
Guide, Dryer
72113 Whirlpool Touch-Up Paint
WPL LIT697120
Golden Harvest
Golden Harvest (Uncut)
Washer (Belt Drive)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677967
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT696763
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
Dryer
WPL LIT696234
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Harness, Wiring
6279872 Whirlpool Resistor
7WPL 64211
8WPL 63795
9Stop, Push-In Top
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Golden Harvest)
16Top (Platinum)
16Top (Toast)
16Top (Almond)
16Top (White)
18Knob, Water Level
21Timer and Resistor 60 Hz.
30Nut, Push-In (2)
31WP273556 Whirlpool Screw
32Wire, Jumper
39WPL 685067
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
50Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
64Knob, Push To Start
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
