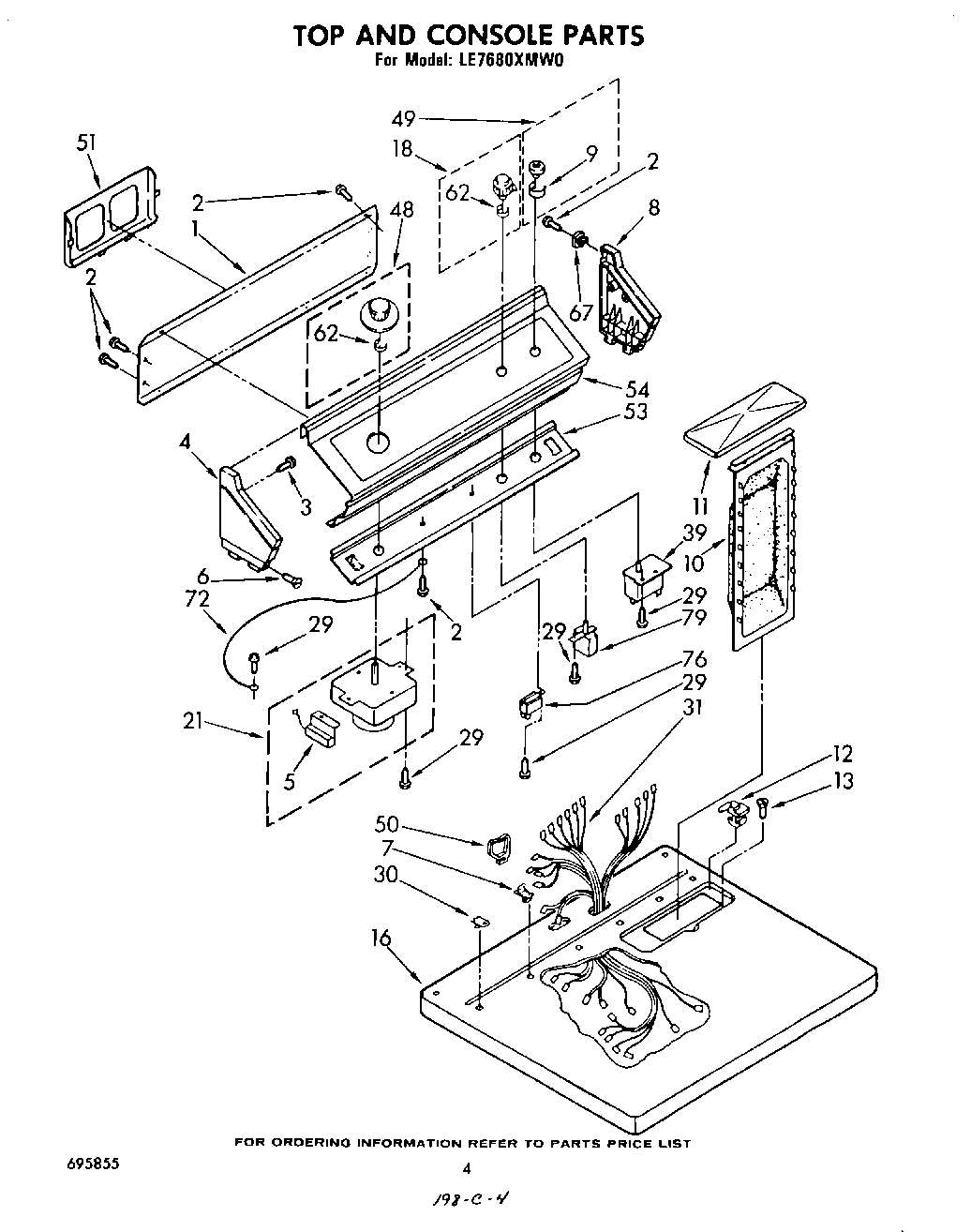

LE7680XMW0 03 – SECTION

Products

PositionProduct
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5279872 Whirlpool Resistor
6Screw, 8-18 x 1 (2)
7Stop, Push-In Top
8Cap, End (L.H.) (Almond)
8Cap, End L.H. (Golden Harvest)
8Cap, End L.H. (White)
8Cap, End L.H. (Platinum)
8Cap, End L.H. (Toast)
9Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Toast)
16Top (Golden Harvest)
16Top (Almond)
16Top (Platinum)
16top (white)
18Control Knob Assembly
21Timer & Resistor Assembly, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39WPL 685067
39Switch, Push-To-Start
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
49Button Assembly
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
7972017 Whirlpool Appliance Touch-Up Paint White
79WPL 695091
79350956 Whirlpool Spray Assembly
79WPL 693681
79Instructions, Installation
79350938 Whirlpool Spray Gun
79WP72107 Whirlpool Touchup
79Leveler (Thinner)
79WPL 799351
79WPL 72112
79Paint, Spray (13 Oz.) (Platinum)
79WPL 693849
79Toast
79Golden Harvest
79350930 Whirlpool White Spray Paint
7972113 Whirlpool Touch-Up Paint
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79WPL 695855
