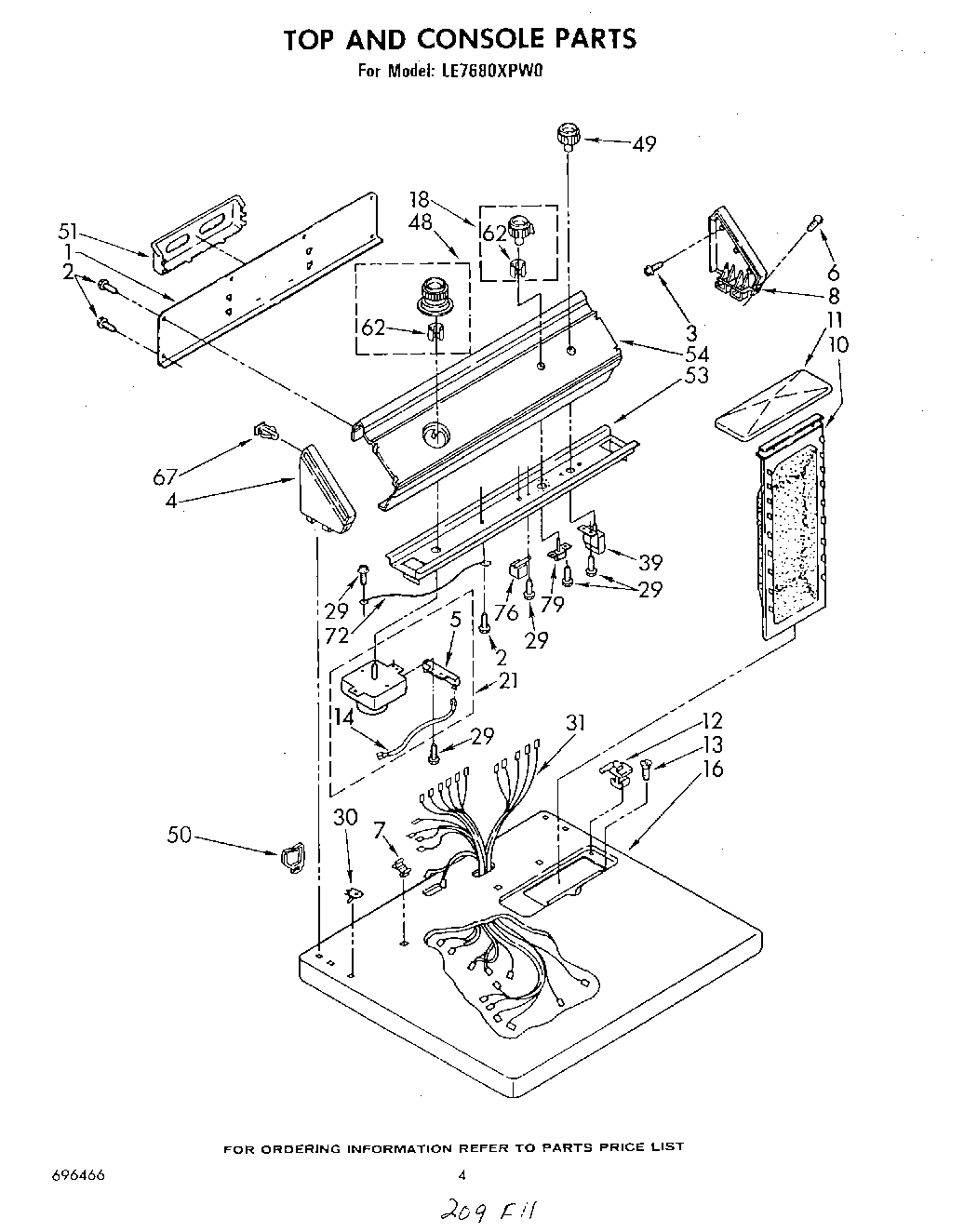

LE7680XPW0 03 – SECTION
Written by
in
LE7680XPW0 03 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Guide, Dryer
Washer (Belt Drive)
WPL LIT677967
Golden Harvest
Golden Harvest (Uncut)
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL LIT696208
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
72113 Whirlpool Touch-Up Paint
WPL LIT696466
Dryer
WPL LIT696234
1
Panel, Rear
3
WPL 355326
4
Cap, End (L.H.)
5
279872 Whirlpool Resistor
6
WPL 64211
7
Stop, Push-In Top
8
WPL 63795
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (Toast)
11
Cover, Lint Screen (Platinum)
11
Cover, Lint Screen (Golden Harvest)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Wire, Jumper
16
Top (Golden Harvest)
16
Top (Platinum)
16
Top (Toast)
16
Top (Almond)
16
Top (White)
18
Knob, Water Level
21
Timer & Resistor, 60 Hz.
29
SCREW
30
Nut, Push-In (2)
31
Harness, Wiring
39
Switch, Push-To-Start
48
Timer Knob Assembly
49
Knob, Push To Start
50
Clip, Harness (Rear Bulkhead Area)
51
Rack, Literature
53
Bracket, Control
54
Panel, Control
62
WP688805 Whirlpool Spring Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
76
WP694419 Whirlpool Buzzer Adjuster
79
Switch, Temperature (Variable)
←
