LE7685XPW0 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
72113 Whirlpool Touch-Up Paint
Washer (Belt Drive)
WPL LIT677971
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677967
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Guide, Dryer
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
350938 Whirlpool Spray Gun
WPL LIT696750
WPL LIT695876
Dryer
WPL LIT696234

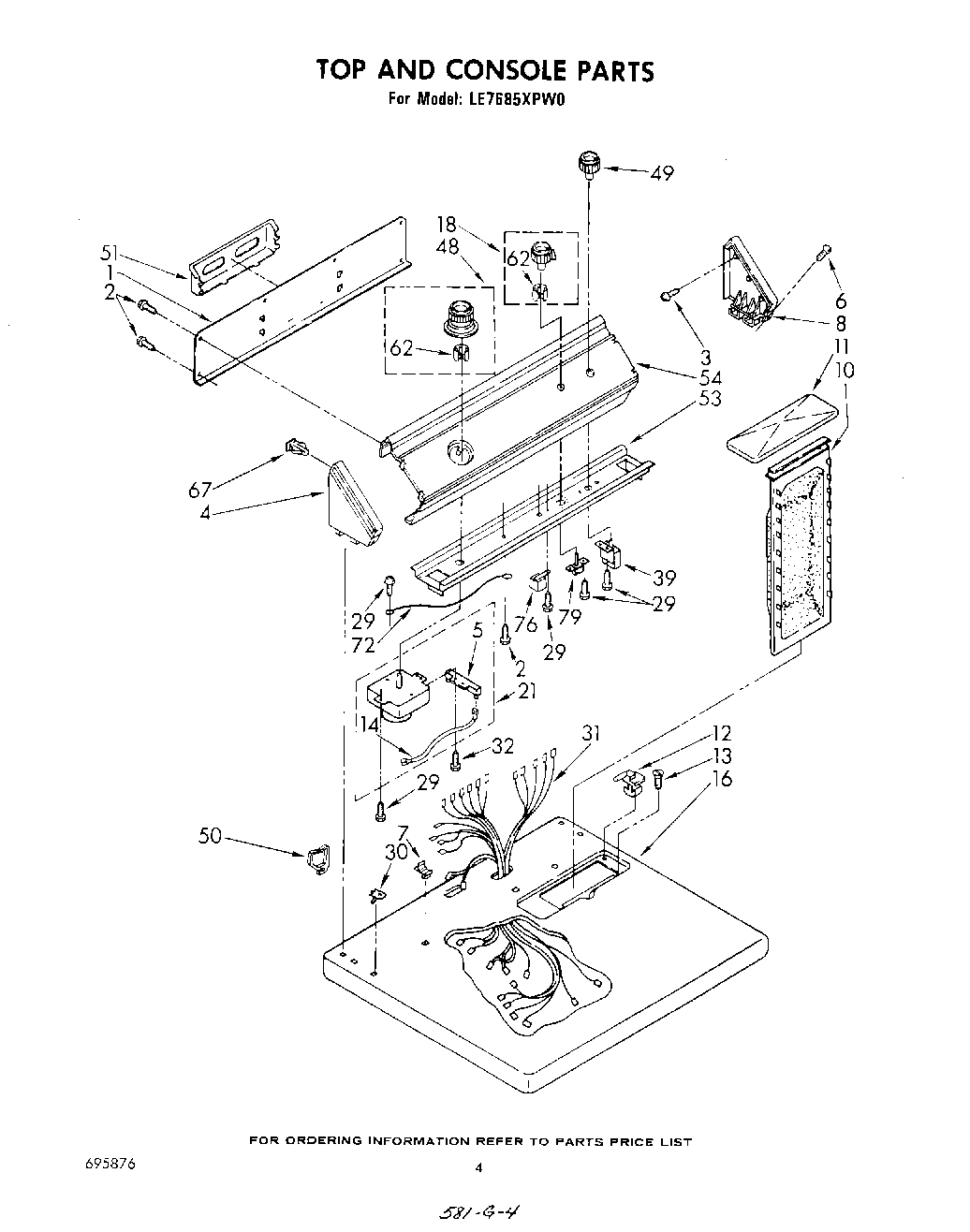

1Panel, Rear
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 64211
7Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
16Top (Toast)
16Top (Almond)
16Top (White)
16Top (Platinum)
16Top (Golden Harvest)
18Knob, Water Level
21Timer & Resistor, 60 Hz.
29SCREW
30Nut, Push-In (2)
31Harness, Wiring
32WP273556 Whirlpool Screw
39Switch, Push-To-Start
39WPL 685067
39Switch, Push-To-Start (Alternate)
48Timer Knob Assembly
49Knob, Push To Start
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
