LE7685XPW1 03 – SECTION

LE7685XPW1 03 – SECTION

Written by

in

LE7685XPW1 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL 72112
72113 Whirlpool Touch-Up Paint
Platinum (Uncut)
Enamal, Toast (1 Qt. Uncut)
Golden Harvest
Golden Harvest (Uncut)
WPL LIT3387069
Toast
Paint, Spray (13 Oz.) (Platinum)
WPL LIT696234
WP72107 Whirlpool Touchup
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Guide, Dryer
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
Leveler (Thinner)
Almond (Uncut)
WPL LIT697144

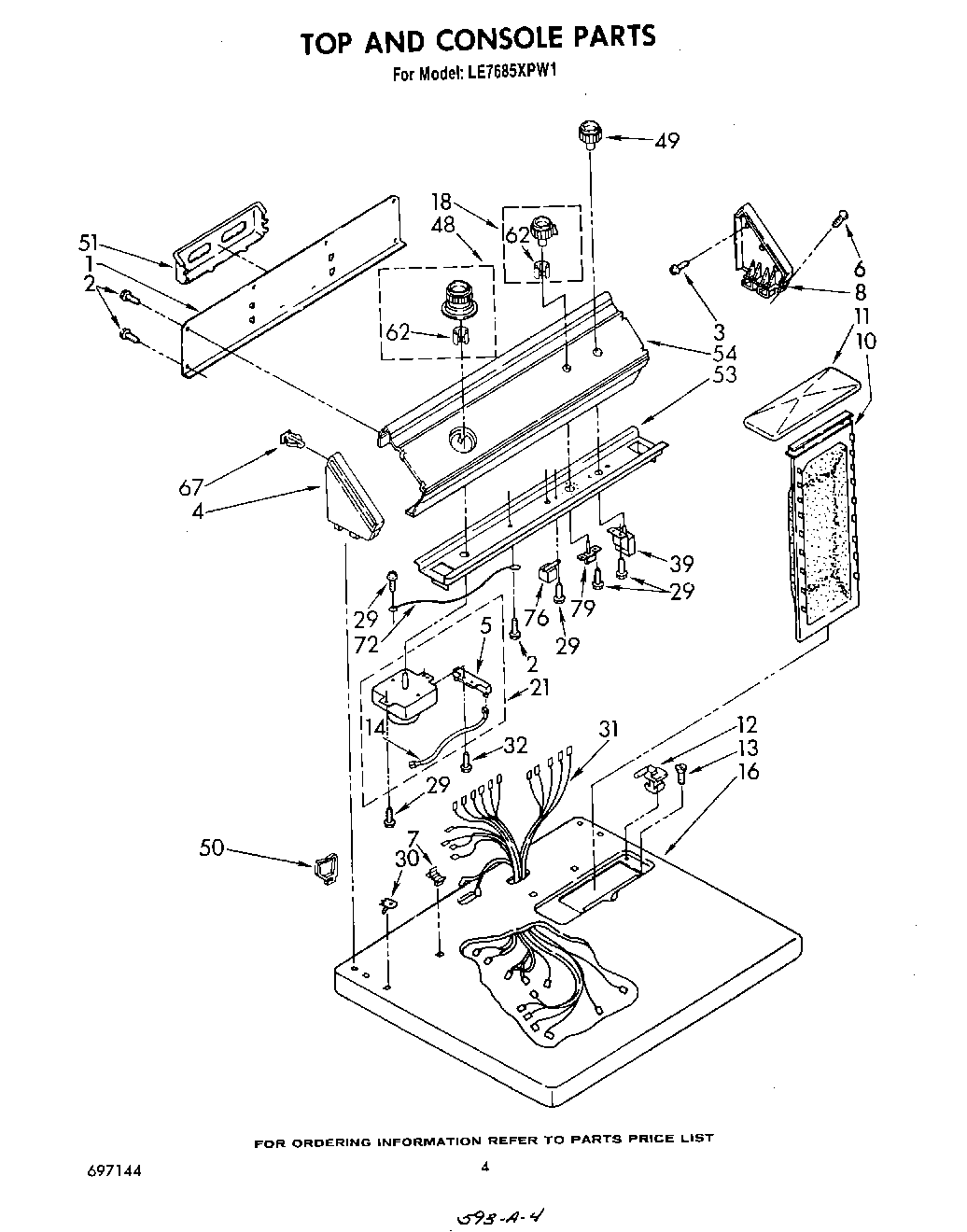

1Panel, Rear
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 64211
7Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Wire, Jumper
16Top (Platinum)
16Top (Almond)
16Top (White)
16Top (Toast)
16Top (Golden Harvest)
18Knob, Water Level
21Timer & Resistor Assembly, 60 Hz.
29SCREW
30Nut, Push-In (2)
31Harness, Wiring
32WP273556 Whirlpool Screw
39Switch, Push-To-Start (Alternate)
39(Alt.)
39Switch, Push-To-Start
48Timer Knob Assembly
49Knob, Push To Start
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
