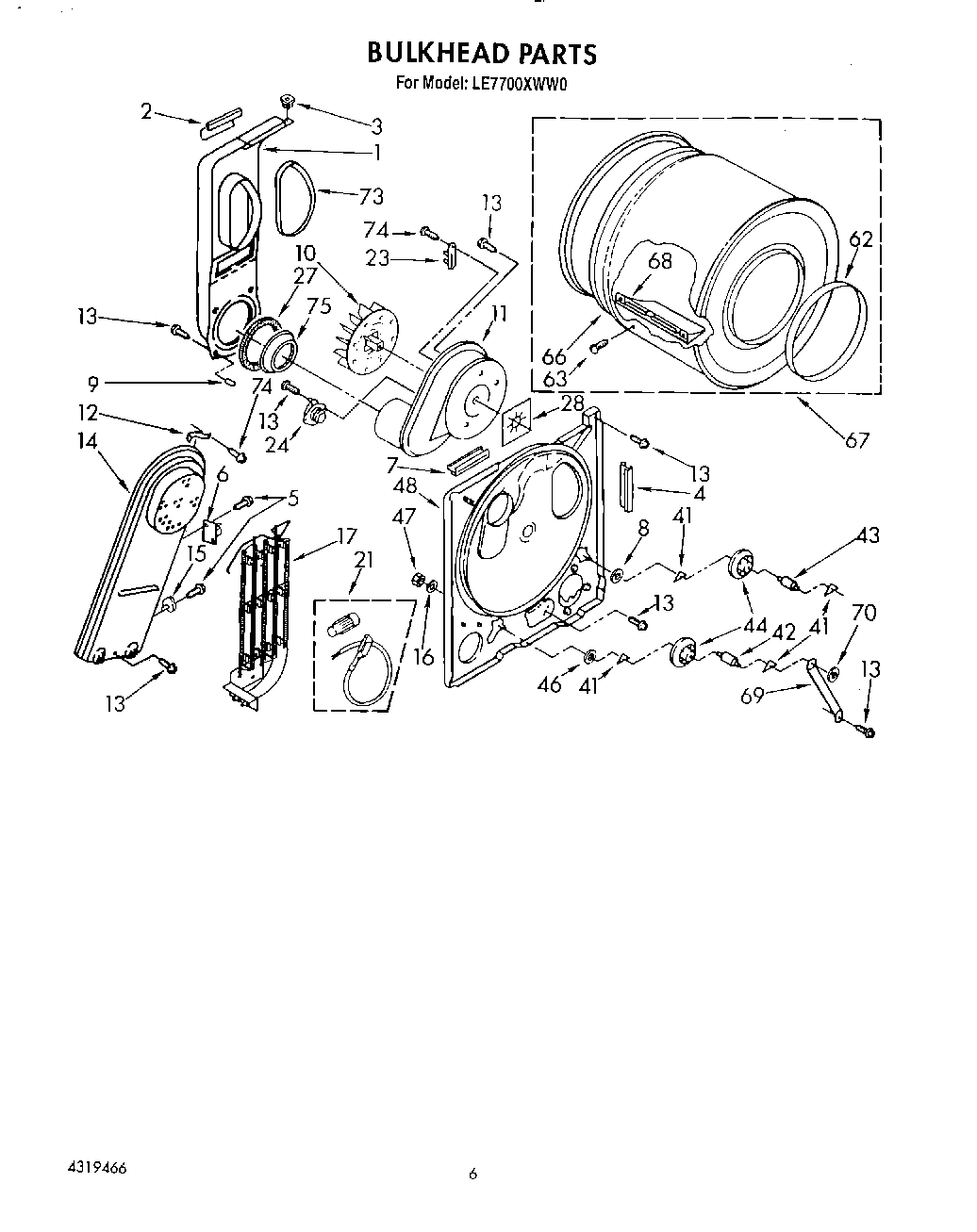

LE7700XWW0 04 – SECTION

LE7700XWW0 04 – SECTION

Written by

in

LE7700XWW0 04 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2686770 Whirlpool Support Bracket
398460 Whirlpool Nut
5WP90767 Whirlpool Screw
6279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7686889 Whirlpool Pad
8WP3388703 Whirlpool Washer
9W10491983 Whirlpool Tine Tip
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13WP965173 Whirlpool Dishwasher Screw
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
16Washer, Support
17WP4391960 Whirlpool Dryer Heating Element
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387134 Whirlpool Dryer Cycling Thermostat
27W11415783 Whirlpool Seal
28Seal, Blower
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46Washer, Support
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67Drum Assembly
68WP342847 Whirlpool Drum Baffle
69Bracket, Support Shaft
70WP90296 Whirlpool Clip
73SEAL
74WP489069 Whirlpool Compactor Screw
75W11233063 Whirlpool Shield Assembly
