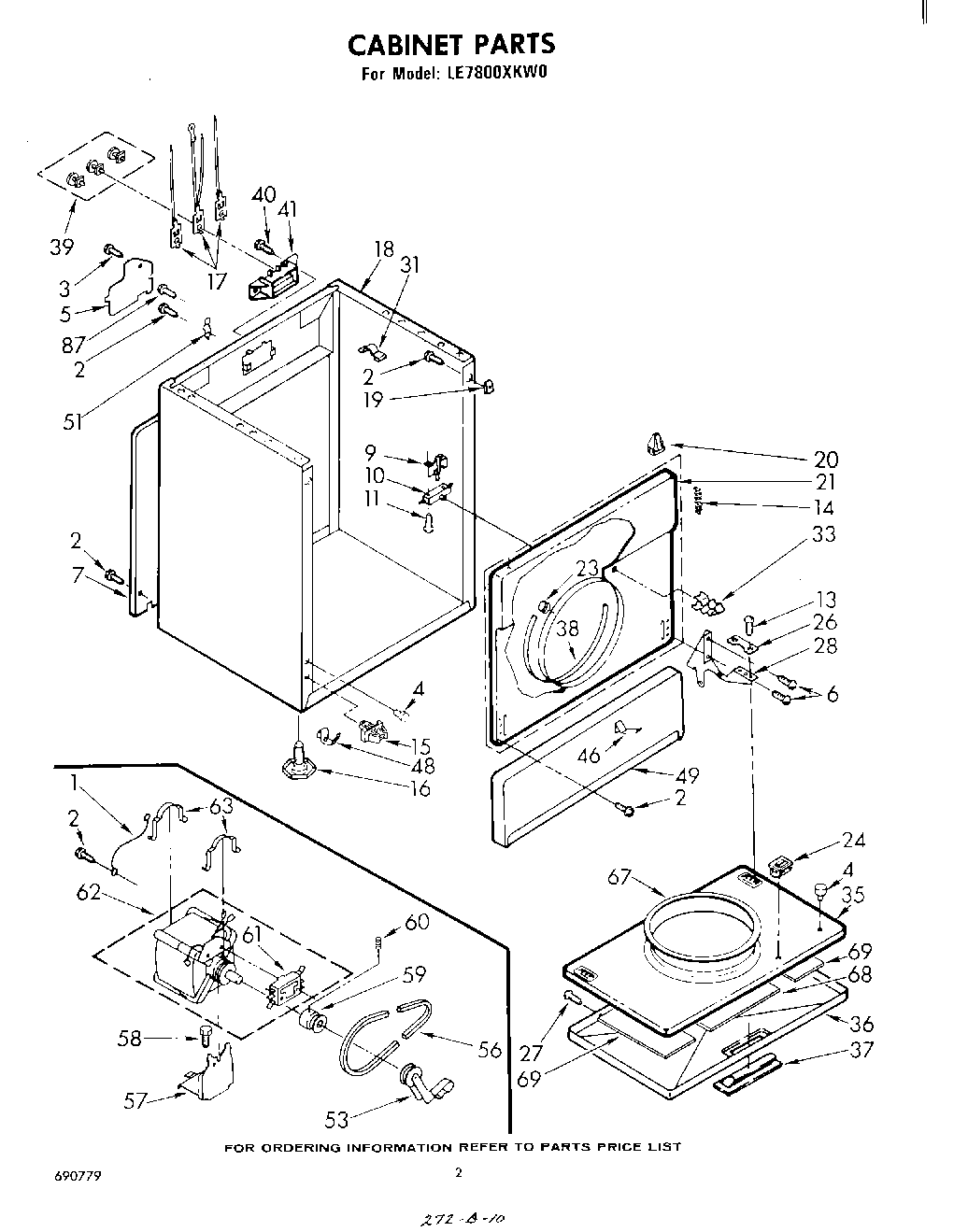

LE7800XKW0 02 – SECTION

LE7800XKW0 02 – SECTION

Written by

in

LE7800XKW0 02 – SECTION

Products

PositionProduct
1Wire, Ground (Motor)
2SCREW
4238614 Whirlpool Bumper Hinge
5W11736322 Whirlpool Cover Assembly
6Screw, 10-32 x 1/2
7Panel, Rear
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
14Spring, Door (2)
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
18Cabinet (White)
18Cabinet (Coffee)
18Cabinet (New Avocado)
18Cabinet (Harvest Wheat)
18Cabinet (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Upper Front Panel Assembly (New Avocado)
21Upper Front Panel Assembly (Golden Harvest)
21Upper Front Panel Assembly (White)
21Upper Front Panel Assembly (Almond)
21Panel Assembly, Upper Front (Coffee)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
26W11252547 Whirlpool Clip Assembly
27Screw
28Hinge, R.H.
28Hinge, L.H.
318528351 Whirlpool Clip
35Door, Panel (White)
35Door, Panel (Almond)
35Door, Panel (Golden Harvest)
35Door, Rear (Coffee)
35Door, Rear (New Avocado)
36Door, Front (New Avocado)
36Door, Front (Coffee)
36Door, Front (Almond)
36Door, Front (White)
36Door, Front (Golden Harvest)
37WP348721 Whirlpool Handle
37Handle, Door (Coffee)
37Handle (Golden Harvest)
37Handle (Almond)
38279264 Whirlpool Bearing and Seal Kit
39279393 Whirlpool Terminal Block Screw and Nut Kit
40WP308685 Whirlpool Microwave Screw
41279320 Whirlpool Dryer Rear Terminal Block Kit
46WPL 341776
48WP297092 Whirlpool Clip
49WPL 689247
49WPL 689248
49Panel, Toe (White)
49Panel, Toe (Golden Harvest)
49Panel, Toe (Almond)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WPL 348946
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67WP3390733 Whirlpool Door Seal Assembly
68WPL 691207
69WPL 691525
69WPL 691206
