LE7800XKW0 03 – SECTION

LE7800XKW0 03 – SECTION

Written by

in

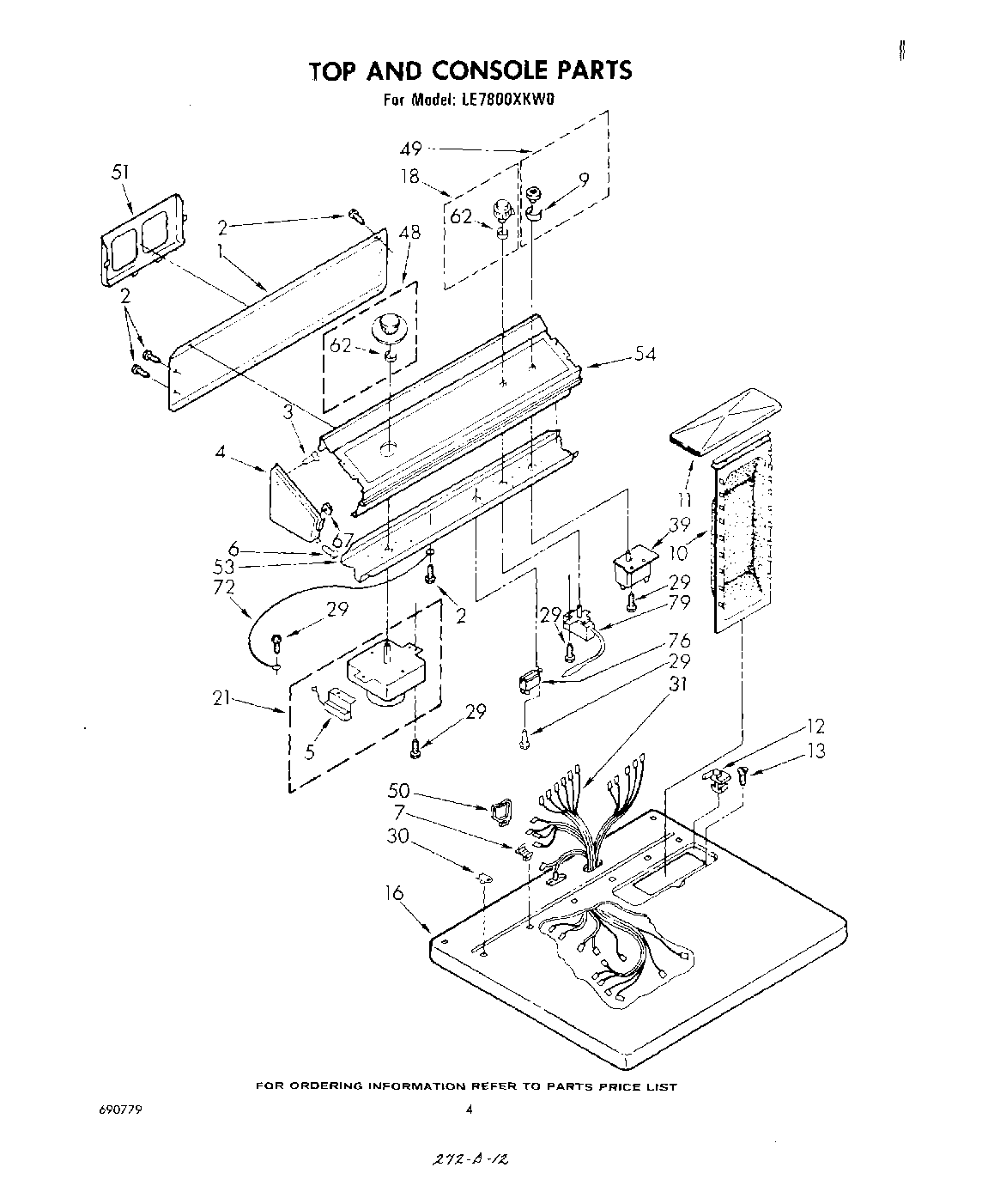

LE7800XKW0 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT688898
Enamel, Coffee (1 Qt. Uncut)
Golden Harvest
Golden Harvest (Uncut)
Paint, Spray 13 Oz. (Avocado)
paint, spray 13 oz. (coffee)
Paint, Touch-Up 1/2 Oz. (Coffee)
WPL ARI117433A
WPL 799351
WPL 690779
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
Almond (Uncut)
WPL LIT690721
WPL LIT688643
72109 Whirlpool Dacor Avocado Touch-Up Paint
1Panel, Rear Console
2SCREW
3WPL 355326
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (Coffee)
4Cap, End (L.H.) (White)
4Cap, End L.H. (White)
4End Cap Assembly, L.H. (Coffee)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4End Cap Assembly, L.H. (New Avocado)
5279872 Whirlpool Resistor
6Screw, 8-18 x 1 (2)
7Stop, Push-In Top
9Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Coffee)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Almond)
16Top (Golden Harvest)
16Top (New Avocado)
16Top (Coffee)
16top (white)
18Control Knob Assembly
21Timer & Resistor, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76Buzzer, Mini
79Thermostat, Adjustable
