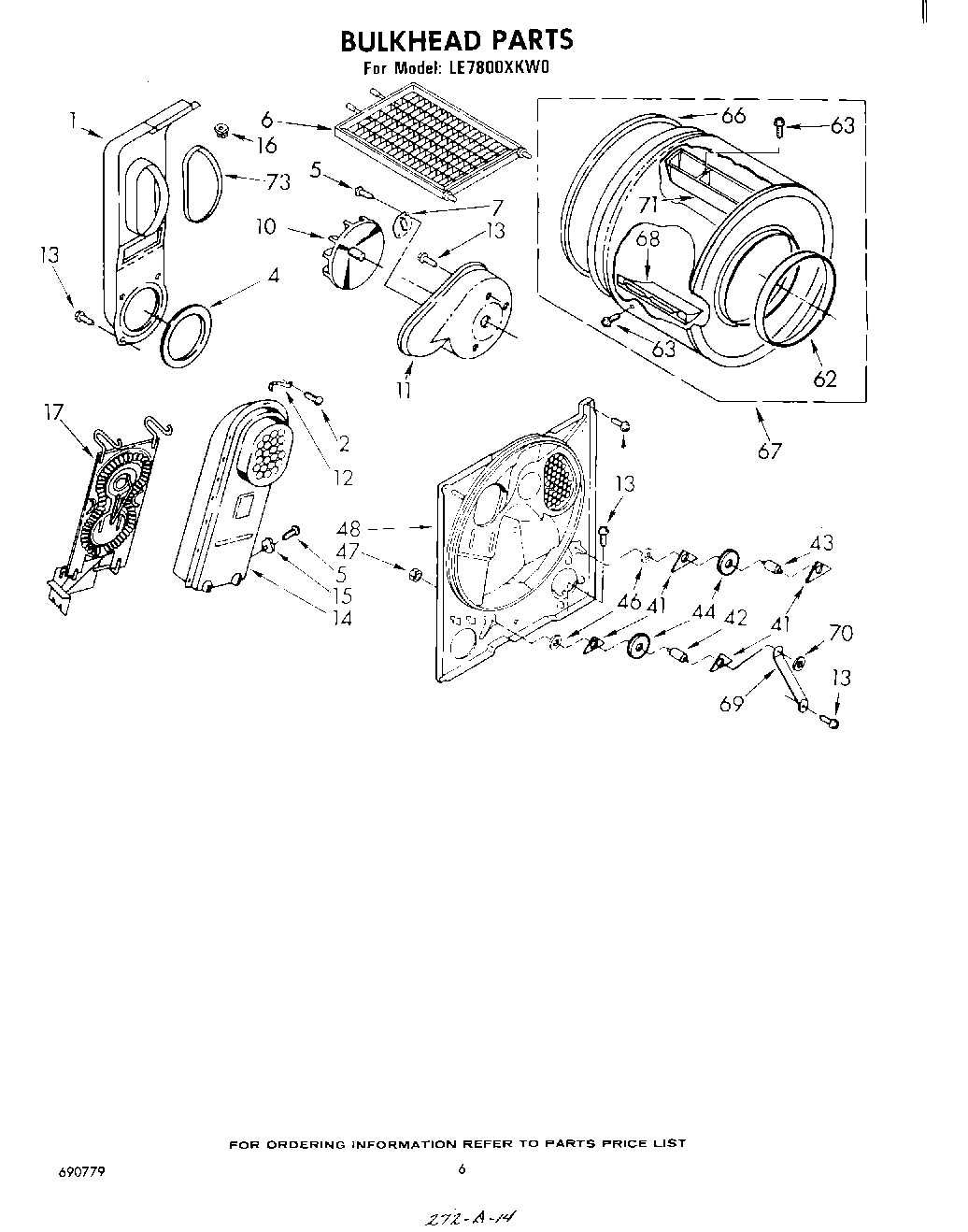

LE7800XKW0 04 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6Dry Rack Assembly
7WP3390719 Whirlpool Dryer Thermal Fuse
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower (Domestic)
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15279052 Whirlpool Thermostat L250 3W
1698460 Whirlpool Nut
17WP4391960 Whirlpool Dryer Heating Element
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48W11178667 Whirlpool Bulkhead Assembly
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66279408 Whirlpool Dryer Rear Drum Seal
67Drum Assembly
68Baffle, Drum (Long) (2)
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71Baffle, Drum (Short) (1)
73SEAL
