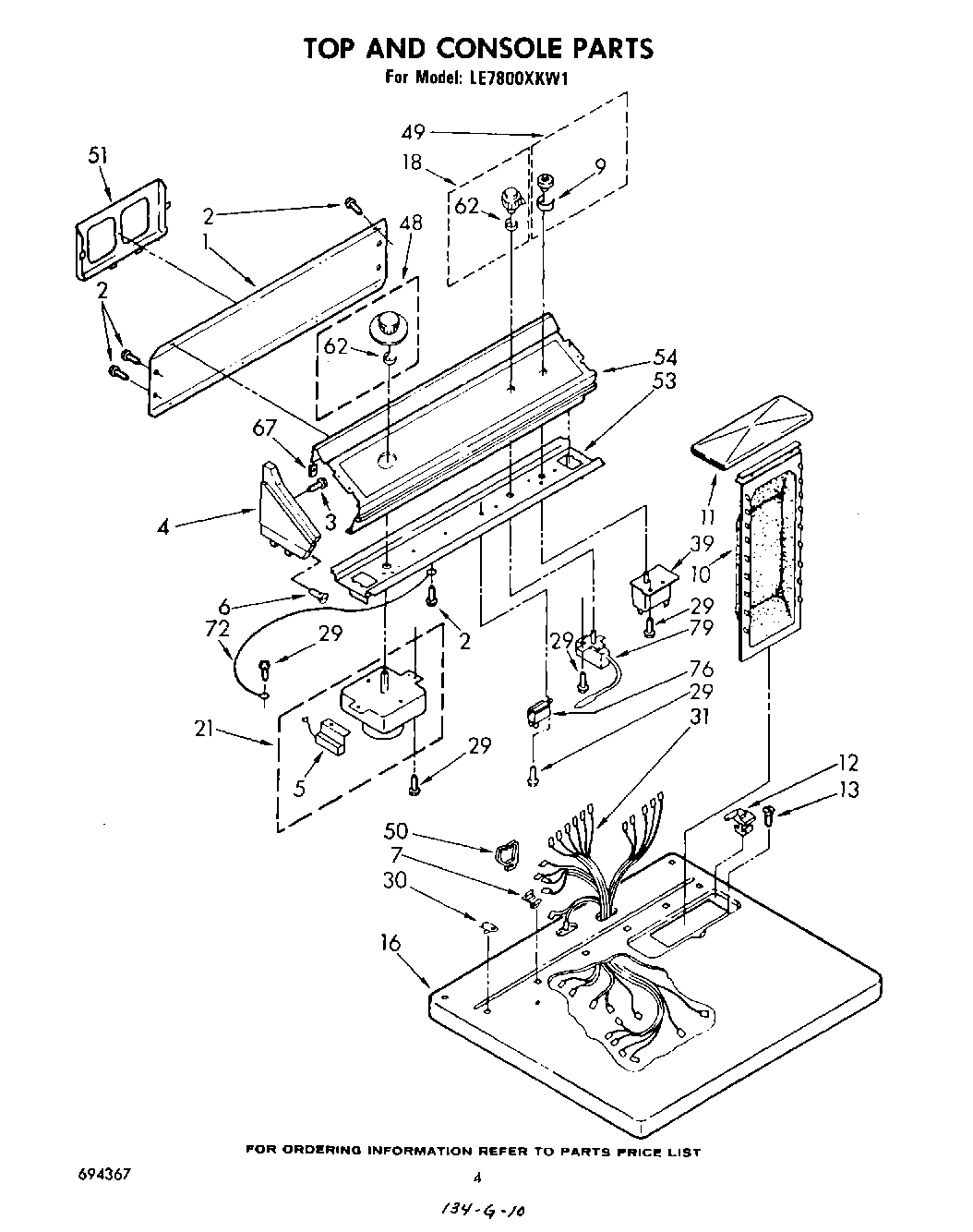

LE7800XKW1 03 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WPL 799351
Golden Harvest
Golden Harvest (Uncut)
72109 Whirlpool Dacor Avocado Touch-Up Paint
Paint, Touch-Up 1/2 Oz. (Coffee)
paint, spray 13 oz. (coffee)
Paint, Spray 13 Oz. (Avocado)
Enamel, Coffee (1 Qt. Uncut)
Enamel, New Avocado (1 Qt. Uncut)
WPL LIT690721
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Almond (Uncut)
WPL LIT694367
WPL LIT694345
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Guide, Dryer
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End (L.H.) (Almond)
4End Cap Assembly, L.H. (Coffee)
4Cap, End (L.H.) (White)
4End Cap Assembly, L.H. (Coffee)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End L.H. (White)
4End Cap Assembly, L.H. (New Avocado)
4End Cap Assembly, L.H. (New Avocado)
5279872 Whirlpool Resistor
6Screw, 8-18 x 1 (2)
7Stop, Push-In Top
9Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Coffee)
11Cover, Lint Screen (New Avocado)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Coffee)
16Top (Golden Harvest)
16Top (Almond)
16top (white)
16Top (New Avocado)
18Control Knob Assembly
21Timer & Resistor, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Clip (4)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Thermostat, Adjustable
