LE7800XMW2 03 – SECTION

LE7800XMW2 03 – SECTION

Written by

in

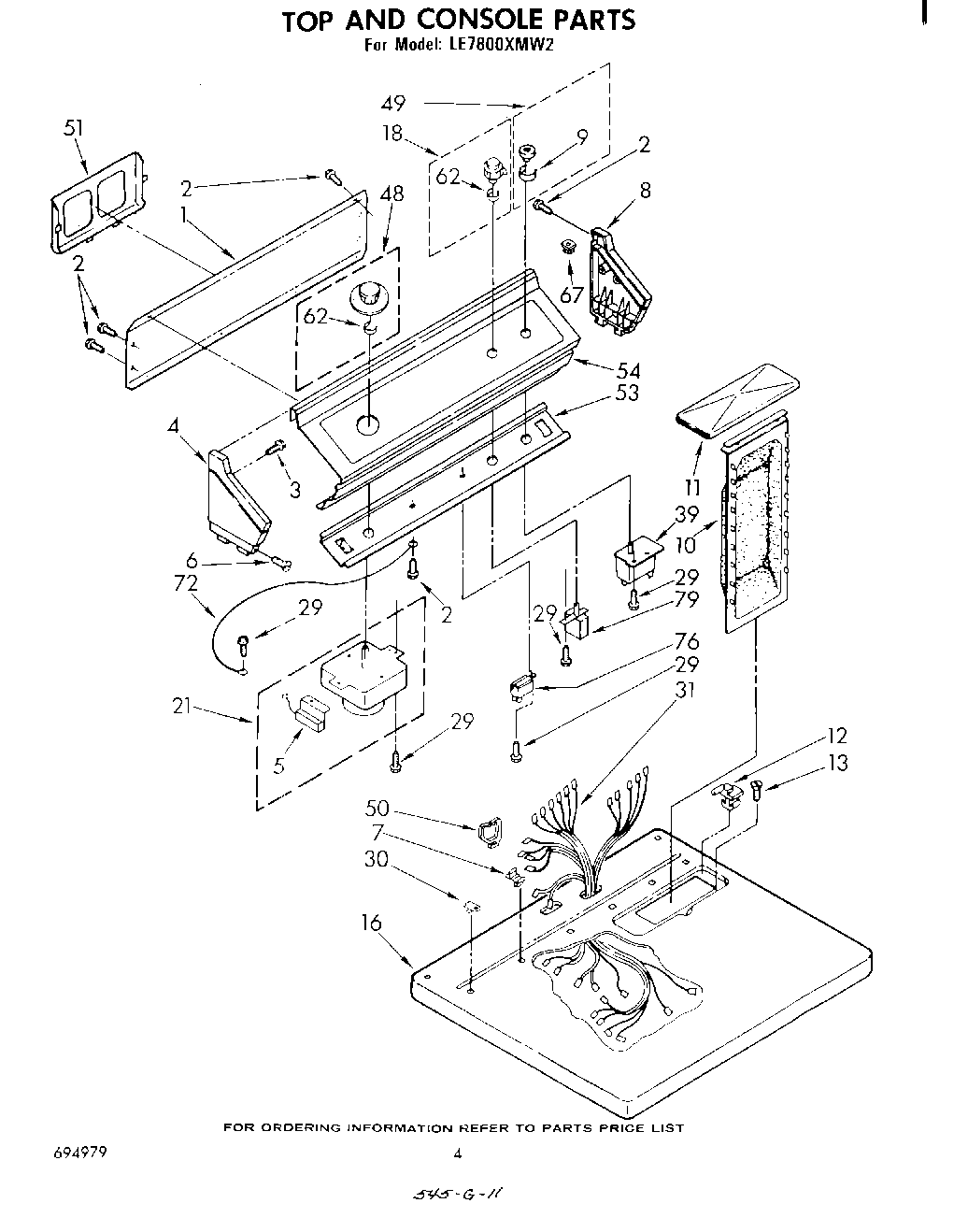

LE7800XMW2 03 – SECTION

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
799344 Whirlpool Refrigerator Paint
Platinum (Uncut)
1Panel, Rear Console
2SCREW
3WPL 355326
4Cap, End L.H. (Almond Cap, End R.H.)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (White)
5279872 Whirlpool Resistor
6Screw, 8-18 x 1 (2)
7Stop, Push-In Top
8Cap, End (L.H.) (Almond)
8Cap, End L.H. (White)
8Cap, End L.H. (Golden Harvest)
8Cap, End L.H. (Toast)
8Cap, End L.H. (Platinum)
9Clip
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (Toast)
16top (white)
16Top (Almond)
16Top (Golden Harvest)
16Top (Platinum)
18Control Knob Assembly
21Timer & Resistor, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Pushbutton Assembly
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
62WP688805 Whirlpool Spring Clip
67Nut, Push-In (4)
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79WPL 695091
79WPL 691270
79Instructions, Installation
79WPL 799351
79350930 Whirlpool White Spray Paint
79350938 Whirlpool Spray Gun
79350956 Whirlpool Spray Assembly
7972017 Whirlpool Appliance Touch-Up Paint White
79Golden Harvest
7972113 Whirlpool Touch-Up Paint
79WPL 693849
79Toast
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
79Paint, Spray (13 Oz.) (Platinum)
79WPL 72112
79Leveler (Thinner)
79WP72107 Whirlpool Touchup
79WPL 694979
