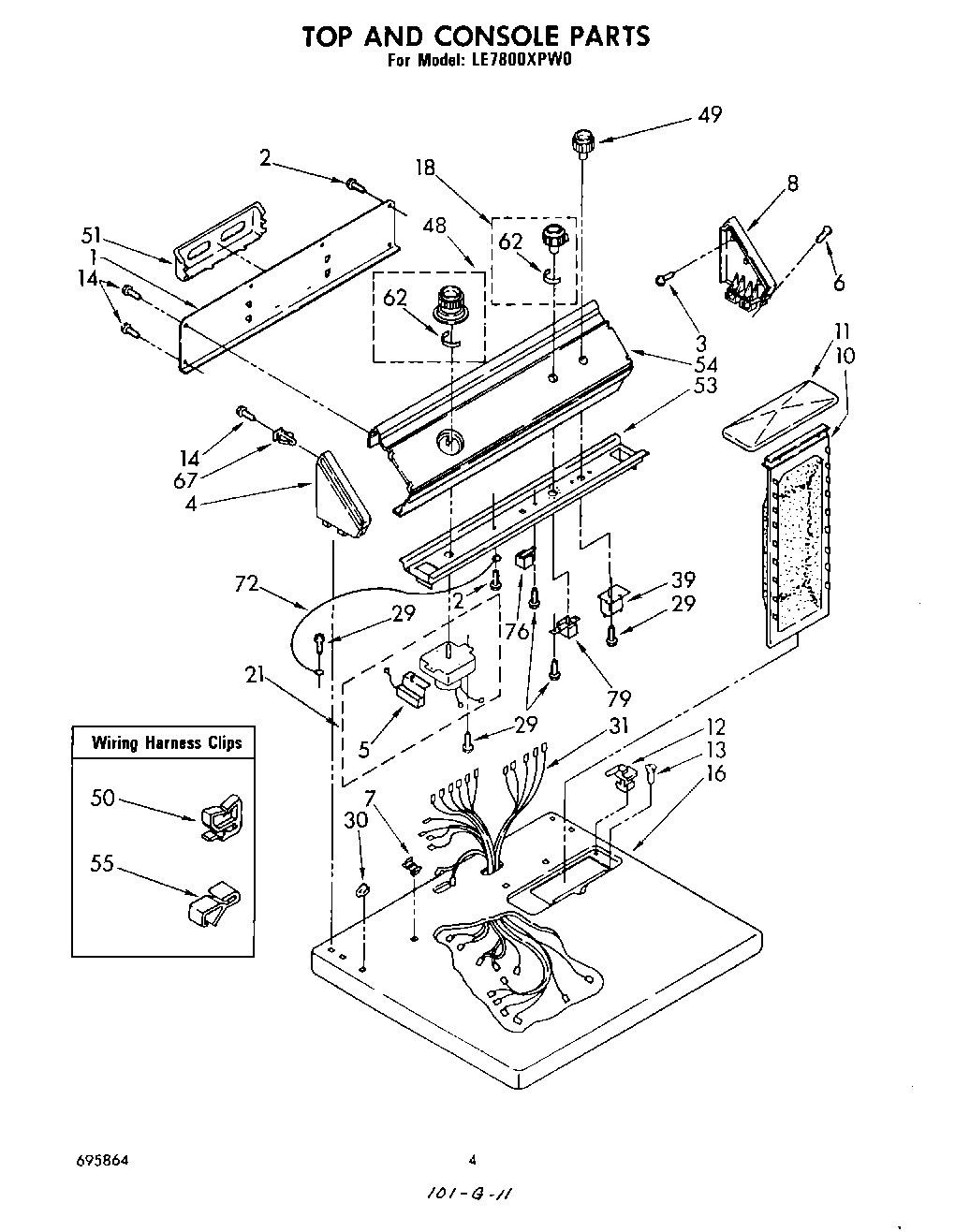

LE7800XPW0 03 – SECTION

Products

PositionProduct
Almond (Uncut)
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 64211
7Stop, Push-In Top
8WPL 63795
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
16Top (Toast)
16Top (Platinum)
16Top (Golden Harvest)
16Top (Almond)
16Top (White)
18Knob, Water Level
21Timer & Resistor, 60 Hz.
29WP3390631 Whirlpool Screw
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Knob, Push To Start
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
55Clip, Retainer
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79350930 Whirlpool White Spray Paint
79WPL 695091
7972017 Whirlpool Appliance Touch-Up Paint White
79350956 Whirlpool Spray Assembly
79WPL 693682
79Instructions, Installation
79350938 Whirlpool Spray Gun
79WP72107 Whirlpool Touchup
79Leveler (Thinner)
79WPL 799351
7972110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
7972113 Whirlpool Touch-Up Paint
79Golden Harvest
79Paint, Spray (13 Oz.) (Platinum)
79WPL 72112
79WPL 693849
79Toast
79WPL 695864
