LE7805XPW0 03 – SECTION
Written by
in

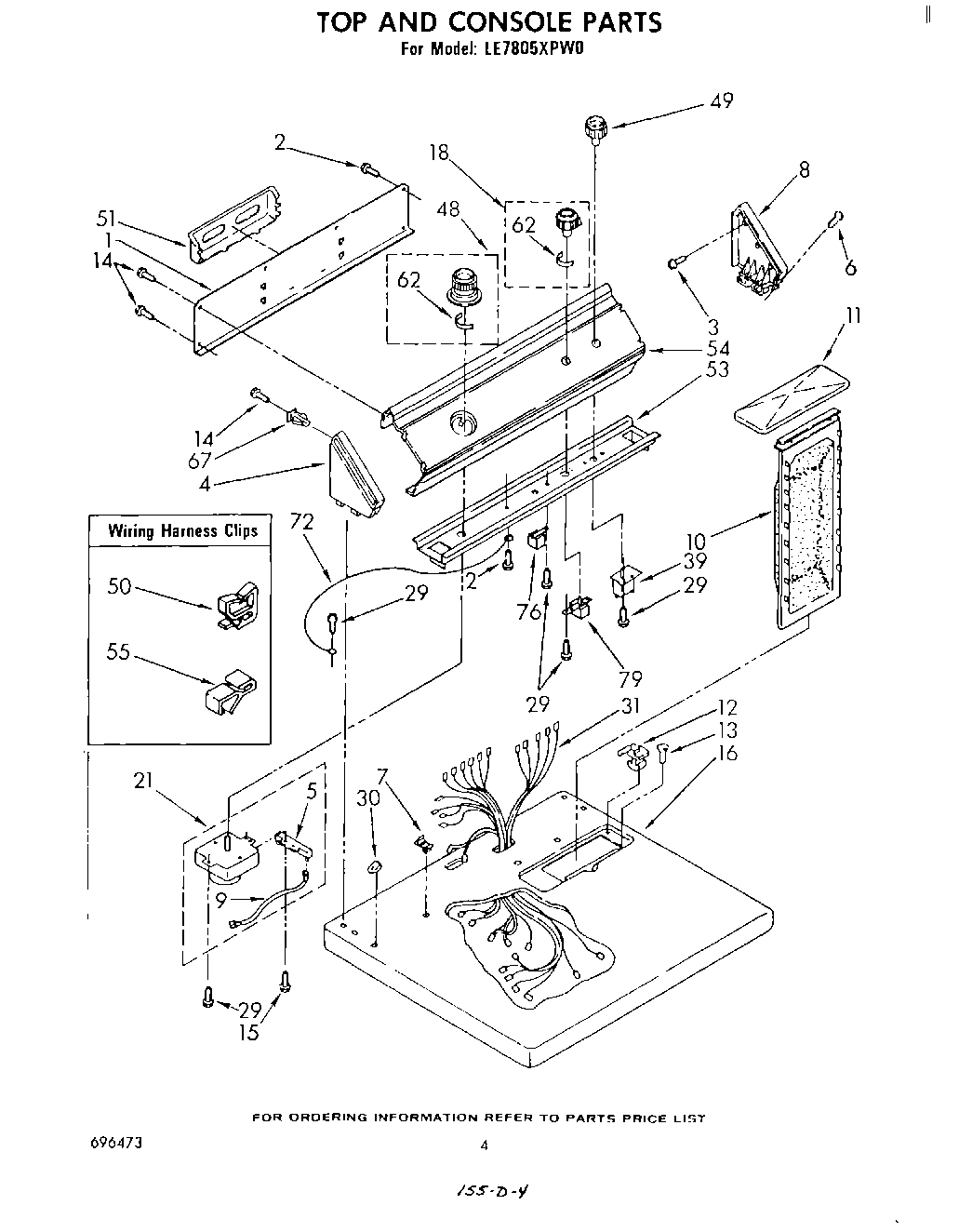

LE7805XPW0 03 – SECTION
Products
Position
Product
WPL LIT696473
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677971
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT696210
WPL LIT696234
WPL LIT687759
72113 Whirlpool Touch-Up Paint
Dryer
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
Leveler (Thinner)
350956 Whirlpool Spray Assembly
Almond (Uncut)
350938 Whirlpool Spray Gun
350930 Whirlpool White Spray Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WP72107 Whirlpool Touchup
1
Panel, Rear
2
SCREW
3
WPL 355326
4
Cap, End (L.H.)
5
279872 Whirlpool Resistor
6
WPL 64211
7
Stop, Push-In Top
8
WPL 63795
9
Wire, Jumper
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (Golden Harvest)
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Toast)
11
Cover, Lint Screen (Platinum)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP489069 Whirlpool Compactor Screw
15
WP273556 Whirlpool Screw
16
Top (Almond)
16
Top (Golden Harvest)
16
Top (Toast)
16
Top (White)
16
Top (Platinum)
18
Knob, Water Level
21
Timer & Resistor, 60 Hz.
29
WP3390631 Whirlpool Screw
30
Nut, Push-In (2)
31
Harness, Wiring
39
Relay, Push-To-Start
48
Timer Knob Assembly
49
Knob, Push To Start
50
Clip, Harness (Rear Bulkhead Area)
51
Rack, Literature
53
Bracket, Control
54
Panel, Control
55
Clip, Retainer
62
WP688805 Whirlpool Spring Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
76
WP694419 Whirlpool Buzzer Adjuster
79
WPL 695091
←
