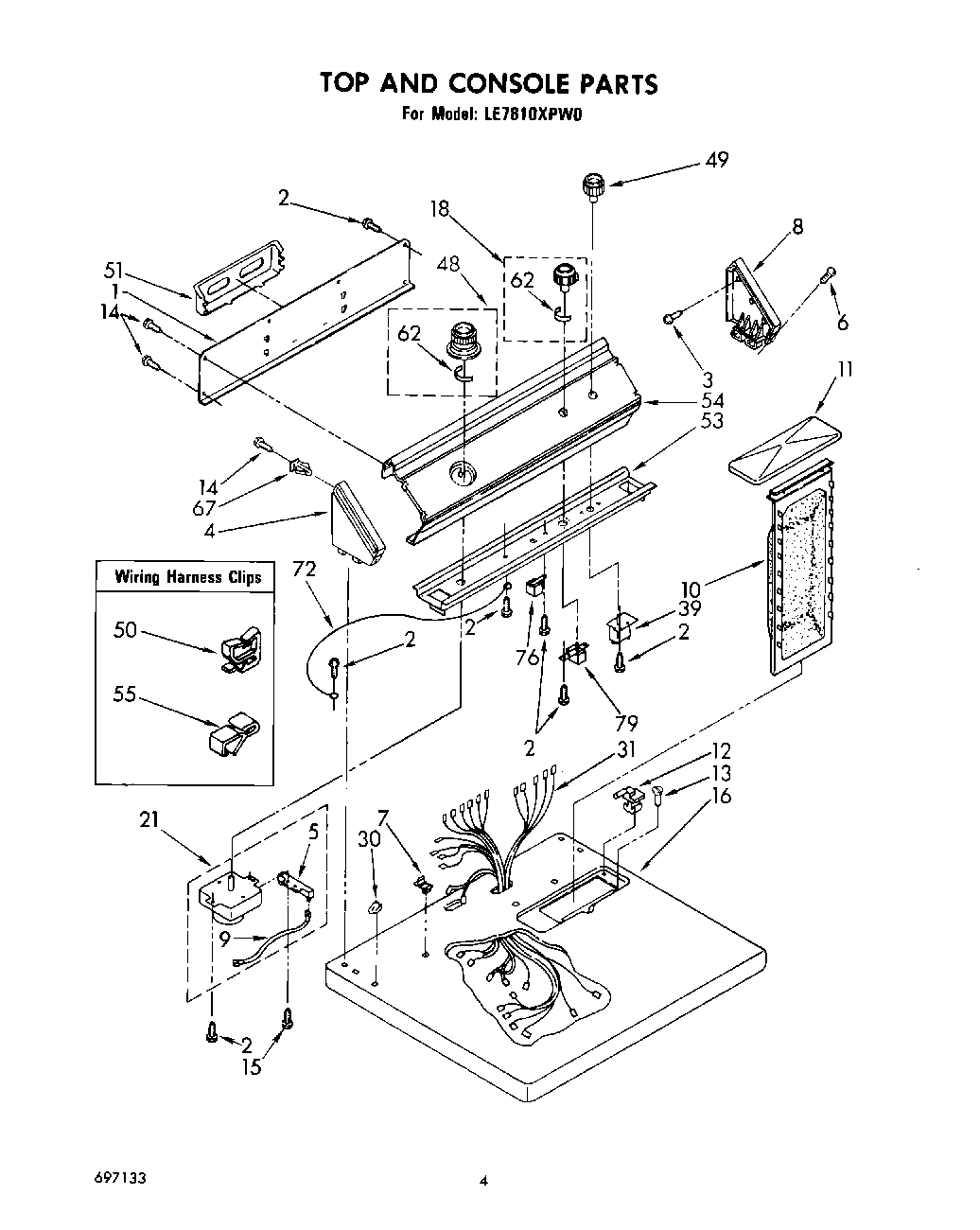

LE7810XPW0 03 – TOP AND CONSOLE, LIT/OPTIONAL

LE7810XPW0 03 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LE7810XPW0 03 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
WPL LIT687759
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT677971
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT696770
WPL LIT696234
72113 Whirlpool Touch-Up Paint
799344 Whirlpool Refrigerator Paint
WPL LIT697133
350938 Whirlpool Spray Gun
Dryer
Leveler (Thinner)
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
Almond (Uncut)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5279872 Whirlpool Resistor
6WPL 64211
7Stop, Push-In Top
8WPL 63795
9Wire, Jumper
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Golden Harvest)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP489069 Whirlpool Compactor Screw
15WP273556 Whirlpool Screw
16Top (White)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
16Top (Almond)
18Knob, Water Level
21Timer & Resistor 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39Relay, Push-To-Start
48Timer Knob Assembly
49Knob, Push To Start
50Clip, Harness (Rear Bulkhead Area)
51Rack, Literature
53Bracket, Control
54Panel, Control
55Clip, Retainer
62WP688805 Whirlpool Spring Clip
67WP689559 Whirlpool Nut
72Wire, Ground
76WP694419 Whirlpool Buzzer Adjuster
79Switch, Temperature (Variable)
