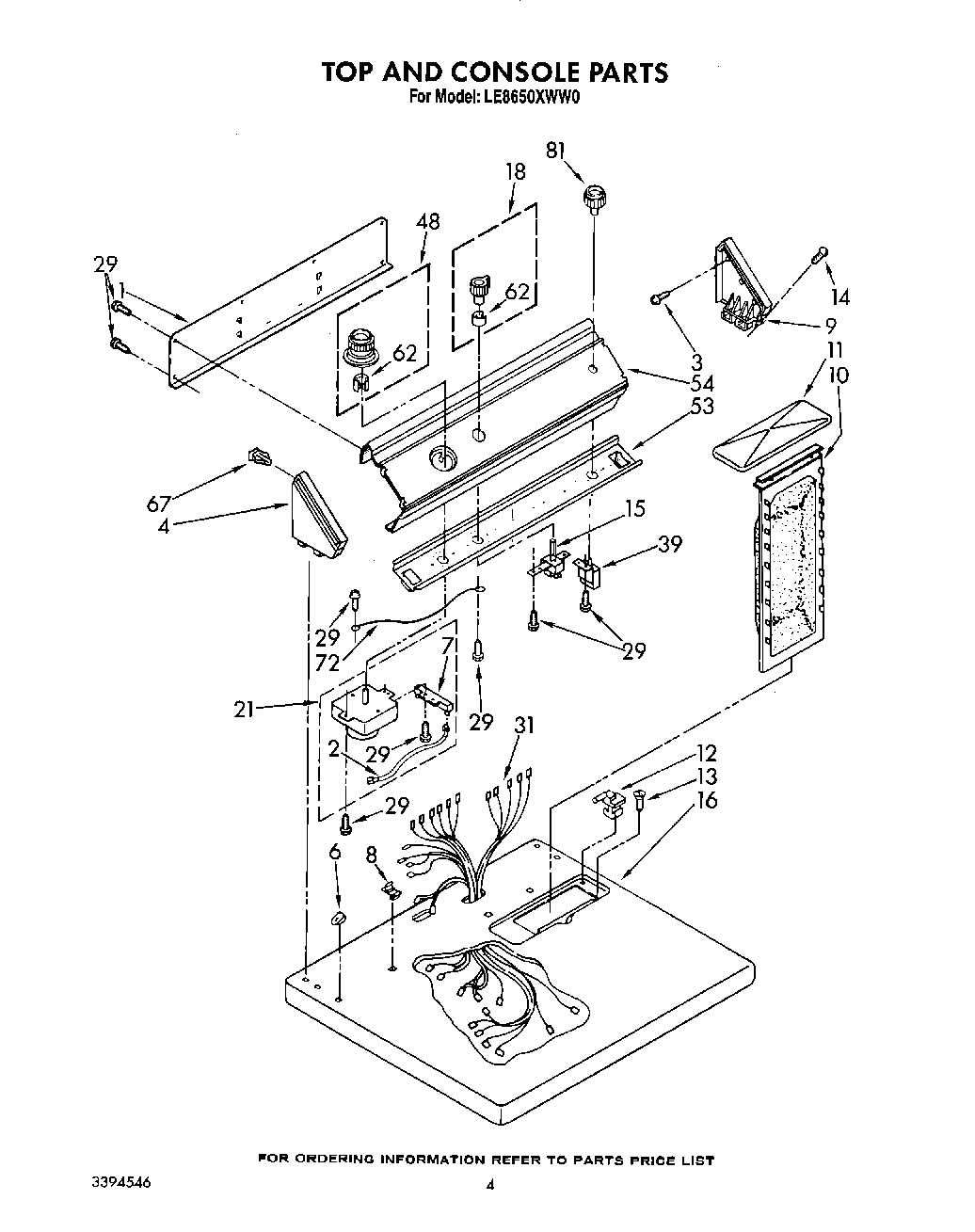

LE8650XWN0 03 – SECTION

Products

Position	Product
	Instructions, Installation
	Use & Care Guide
	List, Service Parts
	Washer (Belt Drive)
	WPL LIT677967
	WPL LIT677971
	Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
	Guide, Dryer
	Dryer
	Almond (Uncut)
	350938 Whirlpool Spray Gun
	WP72107 Whirlpool Touchup
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	Leveler (Thinner)
1	Panel, Rear
2	Wire, Jumper (Blue)
2	Wire, Jumper (Violet)
3	WPL 355326
4	Cap, End (L.H.)
6	Nut, Push-In (2)
7	279872 Whirlpool Resistor
8	Stop, Push-In Top
9	WPL 63795
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	Switch, Temperature Selector
16	Top (Almond)
16	Top (White)
18	Control Knob, Temperature
21	Timer Assembly, 60 Hz.
29	SCREW
31	Harness, Wiring
39	Switch, Push-To-Start (Alternate)
39	(Alt.)
39	Switch, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push-To-Start
