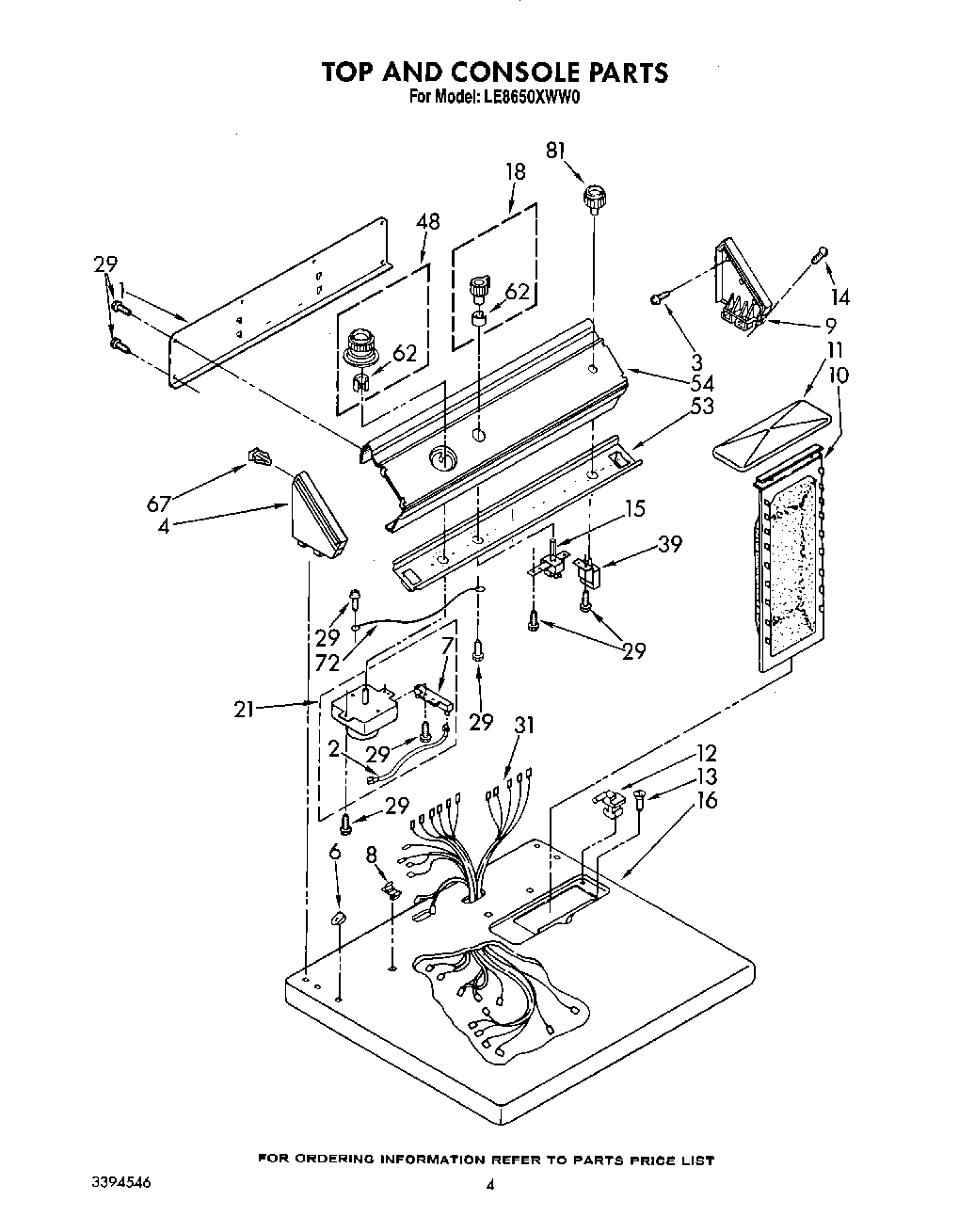

LE8650XWW0 03 – SECTION
Written by
in
LE8650XWW0 03 – SECTION
Products
Position
Product
Instructions, Installation
Use & Care Guide
List, Service Parts
Washer (Belt Drive)
WPL LIT677967
WPL LIT677971
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
Guide, Dryer
Dryer
Almond (Uncut)
350938 Whirlpool Spray Gun
WP72107 Whirlpool Touchup
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
Leveler (Thinner)
1
Panel, Rear
2
Wire, Jumper (Blue)
2
Wire, Jumper (Violet)
3
WPL 355326
4
Cap, End (L.H.)
6
Nut, Push-In (2)
7
279872 Whirlpool Resistor
8
Stop, Push-In Top
9
WPL 63795
10
339392V Whirlpool Dryer Lint Filter Screen
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044480 Whirlpool Hinge Assembly
12
WPW10044470 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WPL 64211
15
Switch, Temperature Selector
16
Top (Almond)
16
Top (White)
18
Control Knob, Temperature
21
Timer Assembly, 60 Hz.
29
SCREW
31
Harness, Wiring
39
Switch, Push-To-Start (Alternate)
39
(Alt.)
39
Switch, Push-To-Start
48
Timer Knob Assembly
53
Bracket, Control
54
Panel, Control
62
WP688805 Whirlpool Spring Clip
67
WP689559 Whirlpool Nut
72
Wire, Ground
81
Knob, Push-To-Start
←
