LE8860XWQ0 02 – SECTION

LE8860XWQ0 02 – SECTION

Written by

in

LE8860XWQ0 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Use & Care Guide
Guide, Dryer
List, Service Parts
Leveler (Thinner)
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White

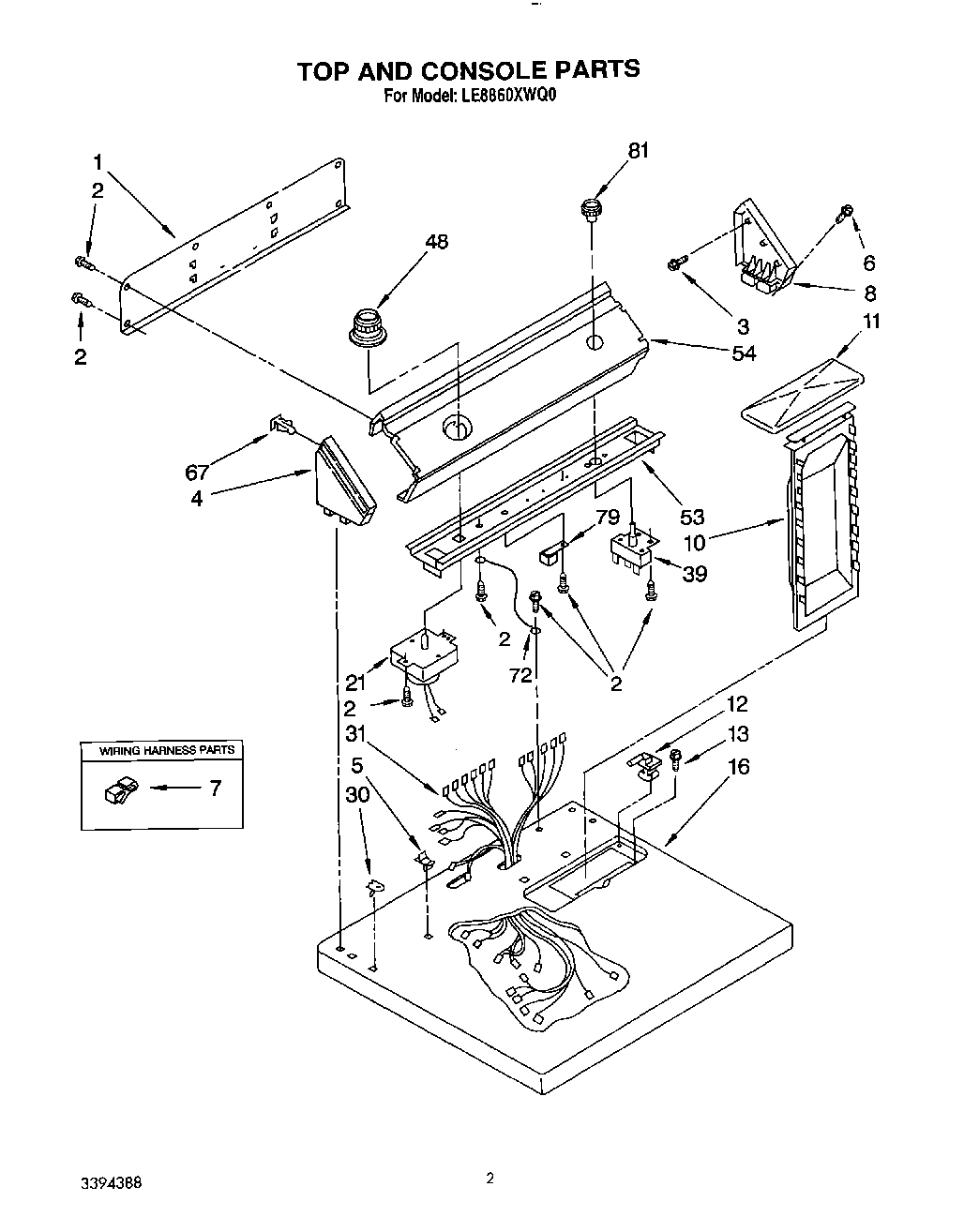

1Panel, Rear
2SCREW
3WPL 355326
4Cap, End (L.H.)
5Stop, Push-In Top
6WP388326 Whirlpool Screw
7Clip, Retainer
8Cap, End (R.H.)
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
21Timer Assembly, 60 Hz.
30Nut, Push-In (2)
31Harness, Wiring
39(Alt.)
39Switch, Push-To-Start (Alternate)
39Switch, Push-To-Start
48Timer Knob Assembly
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
79WP694419 Whirlpool Buzzer Adjuster
81Knob, Push-To-Start
