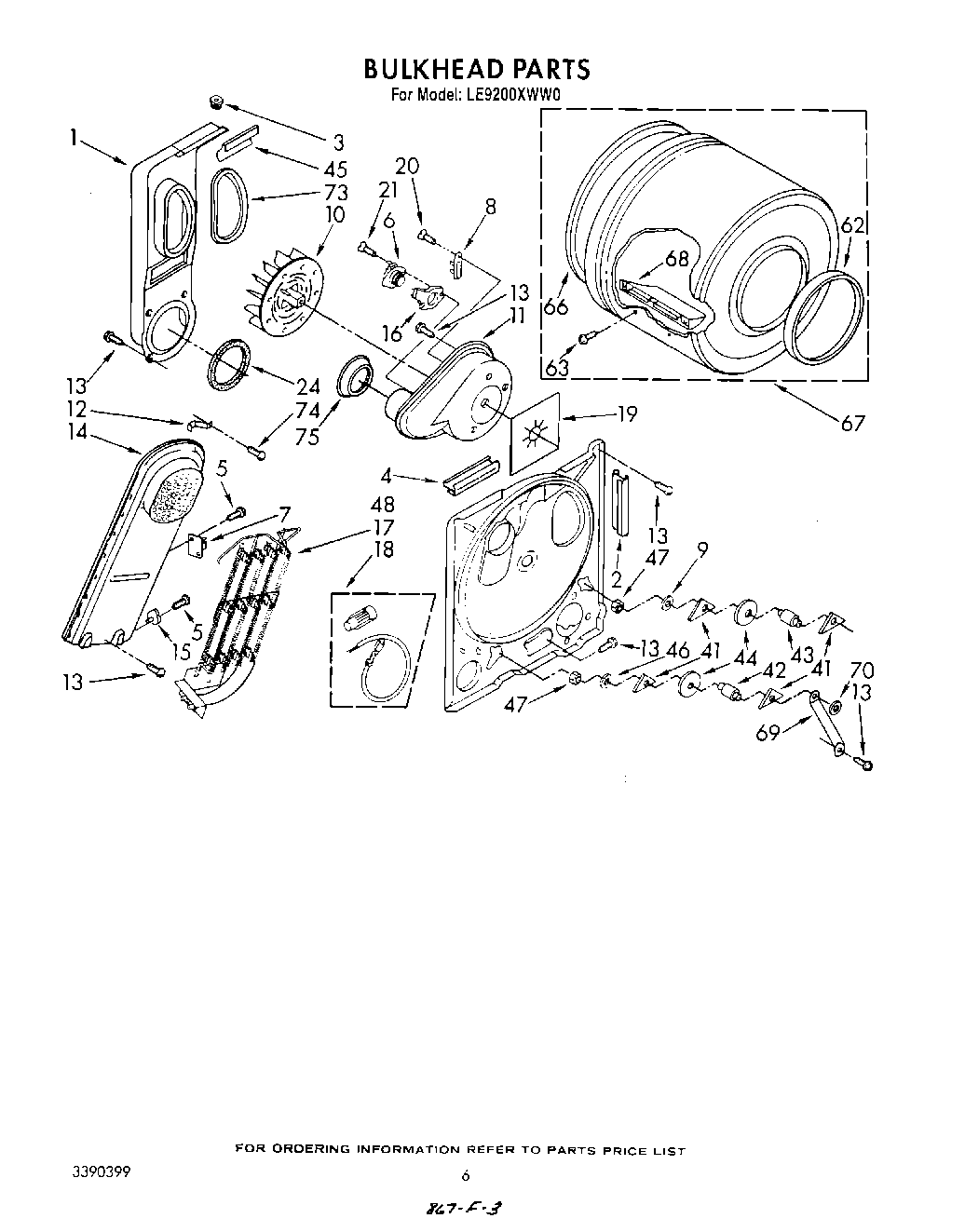

LE9200XWW0 04 – SECTION

LE9200XWW0 04 – SECTION

Written by

in

LE9200XWW0 04 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
398460 Whirlpool Nut
4686889 Whirlpool Pad
5WP90767 Whirlpool Screw
6WP694674 Whirlpool Cycling Thermostat
7279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
8WP3392519 Whirlpool Dryer Thermal Fuse
9WP3388703 Whirlpool Washer
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
16Heater, Thermostat
17WP4391960 Whirlpool Dryer Heating Element
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
19Seal, Blower
20WP965173 Whirlpool Dishwasher Screw
21WP488729 Whirlpool Refrigerator Door Screw
24W11415783 Whirlpool Seal
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
45686770 Whirlpool Support Bracket
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63Screw, 11-16 x 7/8
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
75W11233063 Whirlpool Shield Assembly
