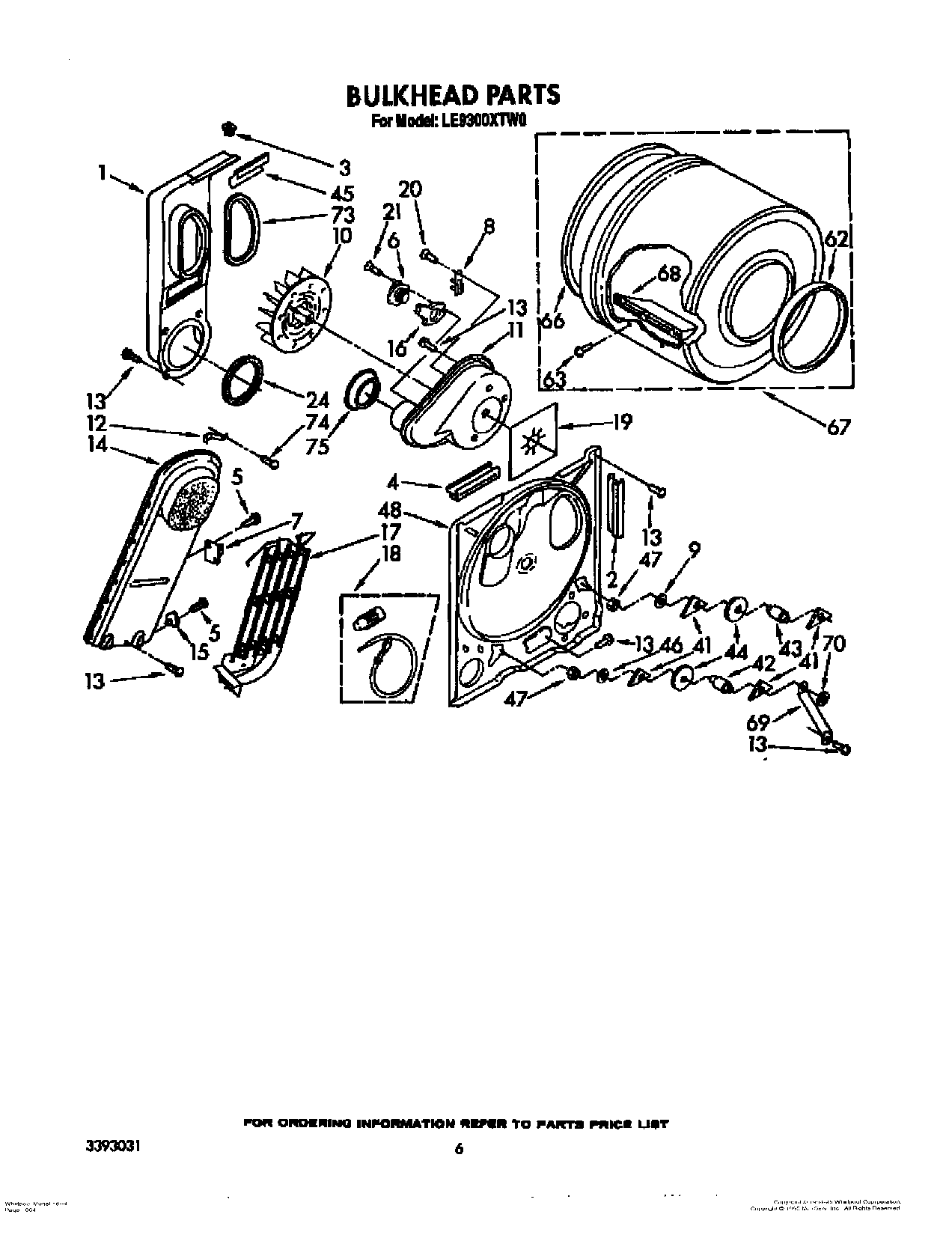

LE9300XTN0 04 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
3	98460 Whirlpool Nut
4	686889 Whirlpool Pad
5	WP90767 Whirlpool Screw
6	WP694674 Whirlpool Cycling Thermostat
7	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
8	WP3392519 Whirlpool Dryer Thermal Fuse
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	WP3390291 Whirlpool High Limit Thermostat
16	Heater, Thermostat
17	WP4391960 Whirlpool Dryer Heating Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	Seal, Blower
20	WP965173 Whirlpool Dishwasher Screw
21	WP488729 Whirlpool Refrigerator Door Screw
24	W11415783 Whirlpool Seal
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
45	686770 Whirlpool Support Bracket
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
62	WP3394509 Whirlpool Bearing Ring
63	Screw, 11-16 x 7/8
66	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67	697760 Whirlpool Drum Assembly Primary OS2
68	WP342847 Whirlpool Drum Baffle
69	Bracket, Support
70	WP90296 Whirlpool Clip
73	SEAL
75	W11233063 Whirlpool Shield Assembly
