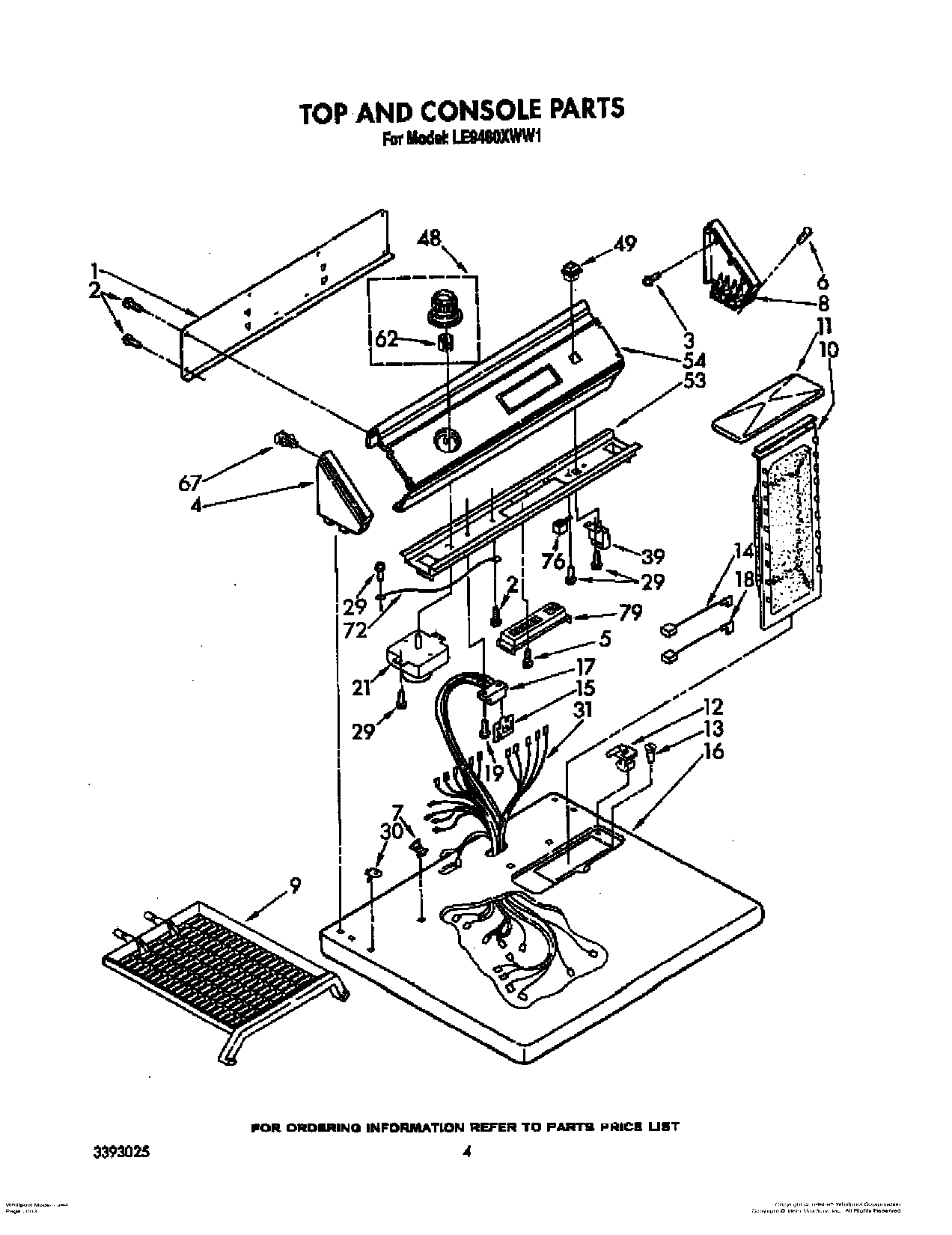

LE9480XWG1 03 – TOP AND CONSOLE PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Golden Harvest (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT3393025
	Guide, Dryer
	Use & Care Guide
	Instructions, Installation
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Golden Harvest
1	Panel, Rear
3	WPL 355326
4	Cap, End (L.H.)
5	WP273556 Whirlpool Screw
6	WPL 64211
7	Stop, Push-In Top
8	WPL 63795
9	Rack, Dry
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Wire, Jumper (Violet)
15	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
16	Top (Golden Harvest)
16	Top (White)
16	Top (Almond)
17	3391885 Whirlpool Connector
18	Wire, Jumper (Blue)
21	Timer, 60 Hz.
29	SCREW
30	Nut, Push-In (2)
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
49	Knob, Push To Start
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Clean-Touch
